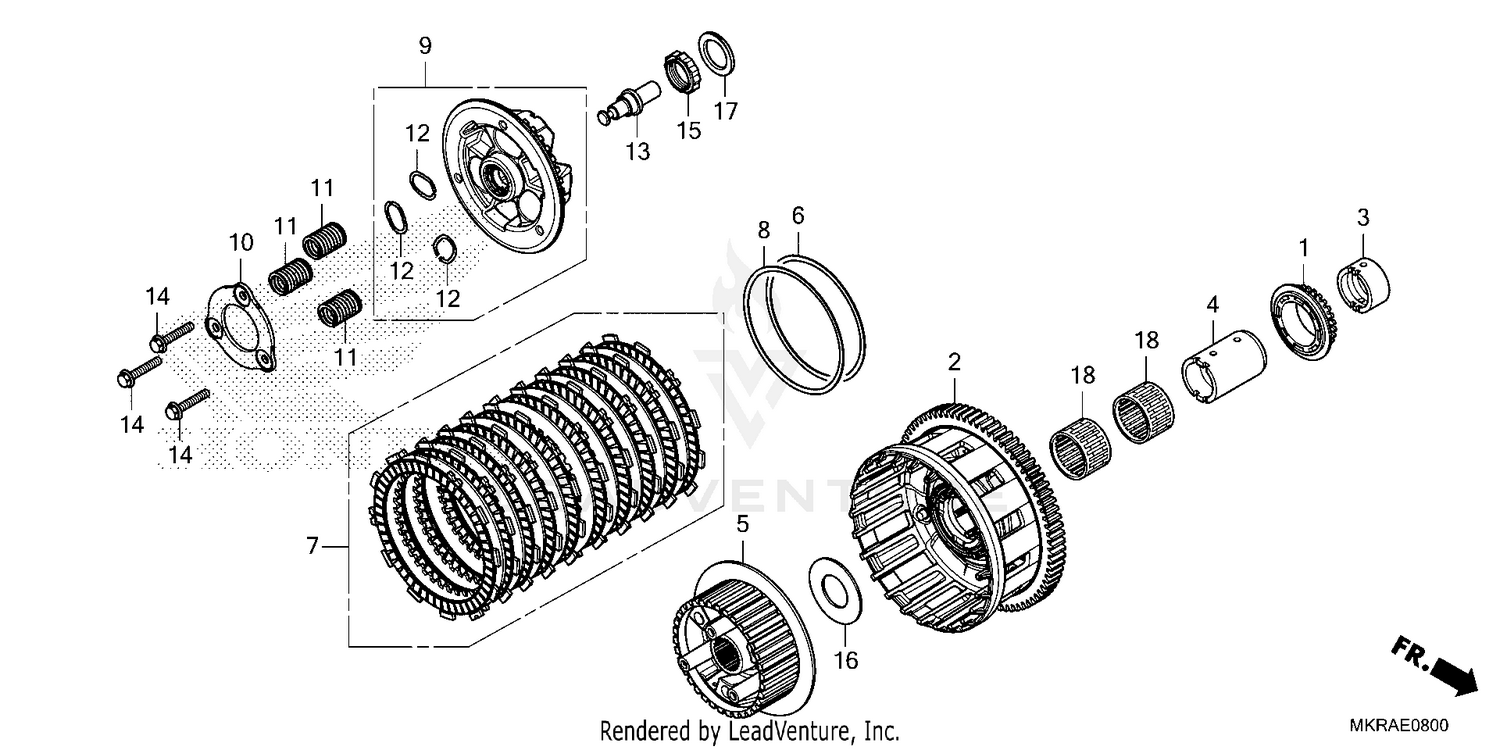

| Ref | Part Number | Description |
|---|
| 1 |
15130-MKR-D11 |
SPROCKET, OIL PUMP DRIVE (26T) Price: $222.87 |
| 2 |
22100-MKR-DH0 |
CLUTCH OUTER A Price: $361.62 |
| 2 |
22110-MKR-DH0 |
CLUTCH OUTER B Price: $384.87 |
| 2 |
22115-MKR-DH0 |
CLUTCH OUTER C Price: $361.62 |
| 3 |
22116-MKR-D10 |
COLLAR, OIL PUMP SPROCKET Price: $15.35 |
| 4 |
22117-MKR-D10 |
GUIDE A, CLUTCH (OUTER) (HOLE NOTHING) Price: $25.04 |
| 4 |
22118-MKR-D10 |
GUIDE B, CLUTCH (OUTER) (2MM HOLE) Price: $25.04 |
| 4 |
22119-MKR-D10 |
GUIDE C, CLUTCH (OUTER) (2MM HOLE X2) Price: $25.04 |
| 5 |
22121-MKR-D11 |
CENTER, CLUTCH Price: $130.80 |
| 6 |
22125-MKS-E01 |
SEAT, JUDDER SPRING Price: $7.27 |
| 7 |
22210-MKR-D10 |
DISK SET, CLUTCH Price: $229.71 |
| 8 |
22325-MKR-D11 |
SPRING, JUDDER Price: $64.15 |
| 9 |
22350-MKR-DH1 |
PLATE, CLU PRESS Price: $97.73 |
| 10 |
22361-MKS-E01 |
PLATE, SETTING Price: $22.24 |
| 11 |
22401-MKR-D11 |
SPRING, CLUTCH Price: $7.29 |
| 12 |
22425-MJP-G51 |
SEAT, CLUTCH SPRING Price: $14.22 |
| 13 |
22847-MKR-D10 |
PIN, CLUTCH LIFTER Price: $36.05 |
| 14 |
90050-MJP-G51 |
BOLT, FLANGE (6X35) Price: $2.35 |
| 15 |
90231-MS2-610 |
NUT, LOCK (25MM) Price: $22.76 |
| 16 |
90401-MS2-610 |
WASHER, THRUST (28.2X56X2) Price: $18.13 |
| 17 |
90407-MFL-000 |
WASHER (25.1X37X3.2) Price: $5.20 |
| 18 |
91101-MKR-D11 |
BEARING A, NEEDLE (35X39X22.5) (RED) (NTN) Price: $16.22 |
| 18 |
91102-MKR-D11 |
BEARING B, NEEDLE (35X39X22.5) (BLUE) (NTN) Price: $16.22 |
