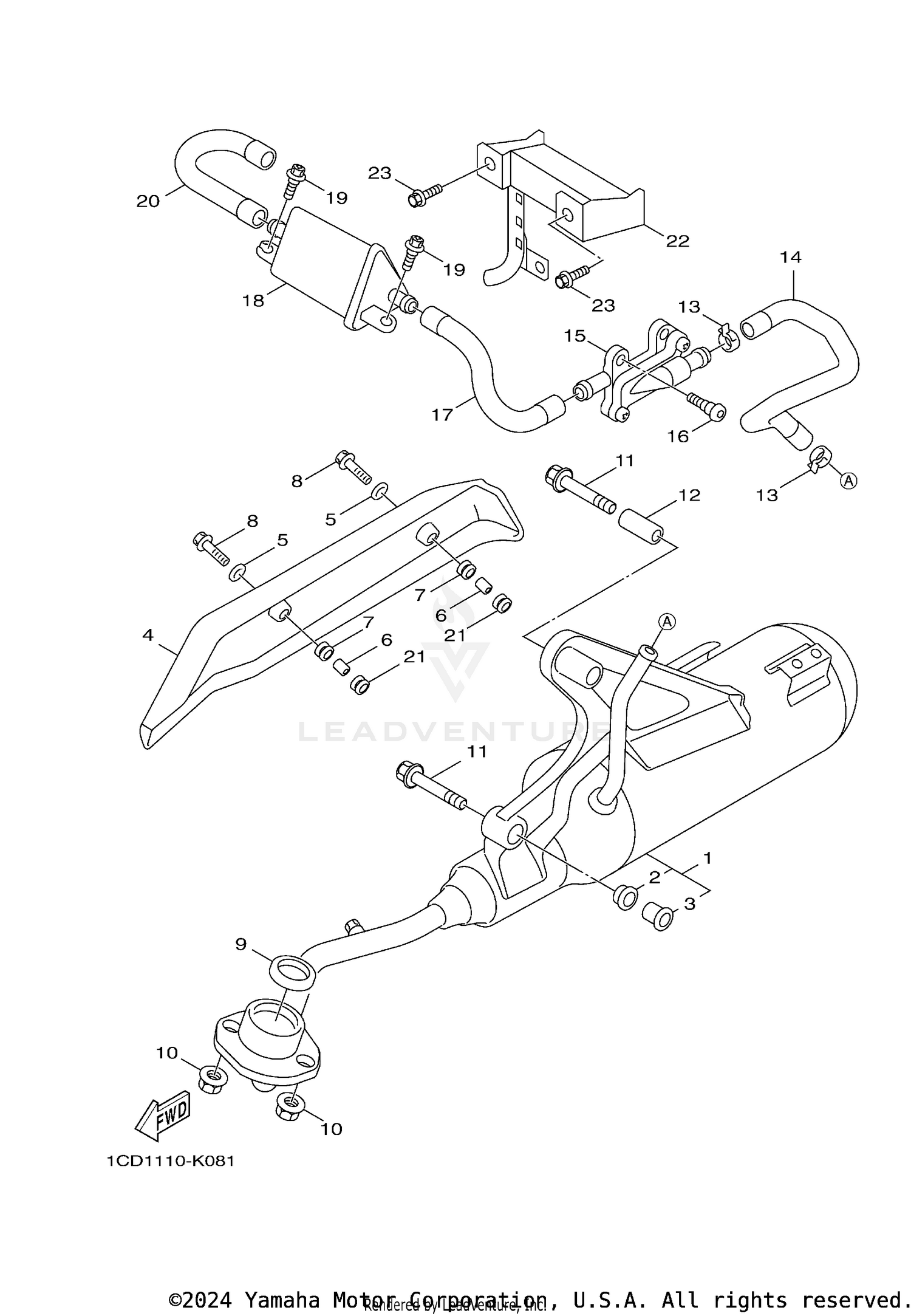

| Ref | Part Number | Description |
|---|
| 2 |
3B3-E4445-00-00 |
GROMMET Price: $1.15 |
| 3 |
4VP-E4779-00-00 |
COLLAR Price: $3.99 |
| 4 |
1CD-E4708-00-00 |
PROTECTOR ASSY Price: $51.99 |
| 5 |
90201-06055-00 |
WASHER, PLATE Price: $3.20 |
| 6 |
90387-06870-00 |
COLLAR Price: $1.40 |
| 7 |
90480-12809-00 |
GROMMET Price: $2.35 |
| 8 |
98980-06016-00 |
SCREW, BIND Price: $9.49 |
| 9 |
1P4-E4613-00-00 |
GASKET, EXHAUST PIPE Price: $10.49 |
| 10 |
95707-08500-00 |
NUT,FLANGE (JN5) Price: $1.95 |
| 11 |
95817-08060-00 |
BOLT, FLANGE Price: $4.80 |
| 12 |
3B3-E479M-00-00 |
COLLAR 1 Price: $2.45 |
| 13 |
90468-08812-00 |
CLIP Price: $2.45 |
| 14 |
1CD-E4883-00-00 |
HOSE, BEND 3 Price: $10.49 |
| 15 |
3B3-E4803-00-00 |
AIR INDUCTION SYSTEM ASSY Price: $28.99 |
| 16 |
92017-06012-00 |
BOLT, BUTTON HEAD Price: $2.65 |
| 17 |
1CD-E4884-00-00 |
HOSE, BEND 4 Price: $4.70 |
| 18 |
4CW-E4806-00-00 |
AIR FILTER CASE ASSY. Price: $9.49 |
| 19 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95807-06016-00. Price: $1.95 |
| 20 |
1CD-E4885-00-00 |
HOSE, BEND 5 Price: $2.75 |
| 21 |
90480-10803-00 |
GROMMET Price: $3.10 |
| 22 |
1CD-F1652-00-00 |
PROTECTOR Price: $6.49 |
