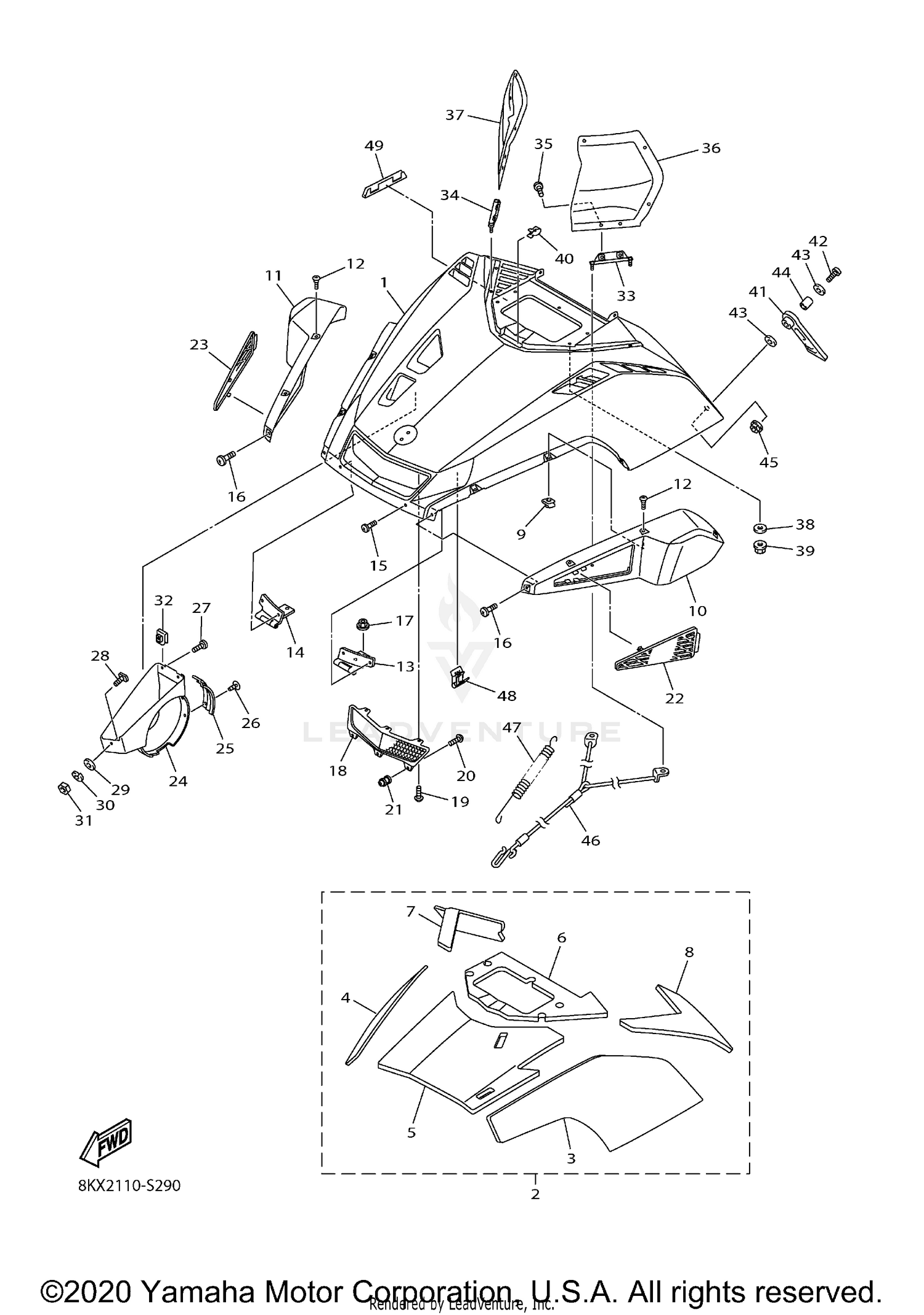

| Ref | Part Number | Description |
|---|
| 2 |
8KX-W7726-00-00 |
LINING SET Price: $131.99 |
| 3 |
8KX-77261-00-00 |
LINING, SHROUD 1 Price: $31.99 |
| 4 |
8KX-77268-00-00 |
LINING,SHROUD 8 Price: $28.99 |
| 5 |
8KX-77264-00-00 |
LINING, SHROUD 4 Price: $32.99 |
| 6 |
8KX-77265-00-00 |
LINING, SHROUD 5 Price: $20.99 |
| 7 |
8KX-77266-00-00 |
LINING, SHROUD 6 Price: $20.99 |
| 8 |
8KX-77267-00-00 |
LINING, SHROUD 7 Price: $20.99 |
| 9 |
90183-06100-00 |
NUT, SPRING Price: $11.49 |
| 10 |
8KX-21711-00-00 |
COVER, SIDE 1 Price: $150.99 |
| 11 |
8KX-21721-00-00 |
COVER, SIDE 2 Price: $150.99 |
| 12 |
90154-06013-00 |
SCREW, BINDING Price: $4.10 |
| 13 |
8KX-77140-00-00 |
HINGE ASSY Price: $33.99 |
| 14 |
8KX-7714A-00-00 |
HINGE ASSY 2 Price: $33.99 |
| 15 |
98907-06014-00 |
SCREW, BIND Price: $7.99 |
| 16 |
90154-06013-00 |
SCREW, BINDING Price: $4.10 |
| 17 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 18 |
8KX-78217-00-00 |
GRILLE, FRONT Price: $76.99 |
| 19 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 20 |
90150-05024-00 |
SCREW, ROUND HEAD Price: $3.35 |
| 21 |
90179-05271-00 |
NUT Price: $8.49 |
| 22 |
8KX-77441-00-00 |
LOUVER 1 Price: $73.99 |
| 23 |
8KX-77442-00-00 |
LOUVER 2 Price: $73.99 |
| 24 |
8KX-77194-00-00 |
DUCT Price: $47.99 |
| 25 |
8KX-77515-00-00 |
BUSH, RUBBER 1 Price: $13.99 |
| 26 |
90269-05055-00 |
RIVET This part replaces 90269-05039-00. Price: $9.49 |
| 27 |
98980-06014-00 |
SCREW, BIND This part replaces 98902-06014-00. Price: $10.49 |
| 28 |
83R-77186-00-00 |
PLATE 2 Price: $10.49 |
| 29 |
90201-06078-00 |
WASHER, PLATE Price: $6.49 |
| 30 |
92995-06100-00 |
WASHER, SPRING This part replaces 92902-06100-00. Price: $3.45 |
| 31 |
95380-06600-00 |
NUT, HEXAGON This part replaces 95302-06600-00. Price: $4.80 |
| 32 |
83R-77144-00-00 |
NUT Price: $7.49 |
| 33 |
8KX-77125-00-00 |
STAY 1 Price: $23.99 |
| 34 |
8KX-77126-00-00 |
STAY 2 Price: $17.49 |
| 35 |
90111-06083-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 36 |
8KX-7723A-00-00 |
FAIRING 2 Price: $94.99 |
| 37 |
8KX-7723B-00-00 |
FAIRING 3 Price: $89.99 |
| 38 |
90201-06078-00 |
WASHER, PLATE Price: $6.49 |
| 39 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 40 |
8KW-77135-00-00 |
CLAMP 1 Price: $5.49 |
| 41 |
8JN-77171-00-00 |
BODY, LATCH 1 Price: $13.49 |
| 42 |
98907-06025-00 |
SCREW, BIND Price: $9.49 |
| 43 |
90201-06557-00 |
WASHER, PLATE Price: $3.55 |
| 44 |
90387-06241-00 |
COLLAR Price: $9.49 |
| 45 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 46 |
83R-77118-01-00 |
STOPPER, SHROUD Price: $36.99 |
| 47 |
838-77159-00-00 |
CLAMP, ROD Price: $5.49 |
| 48 |
8FA-77135-00-00 |
CLAMP 1 Price: $8.49 |
