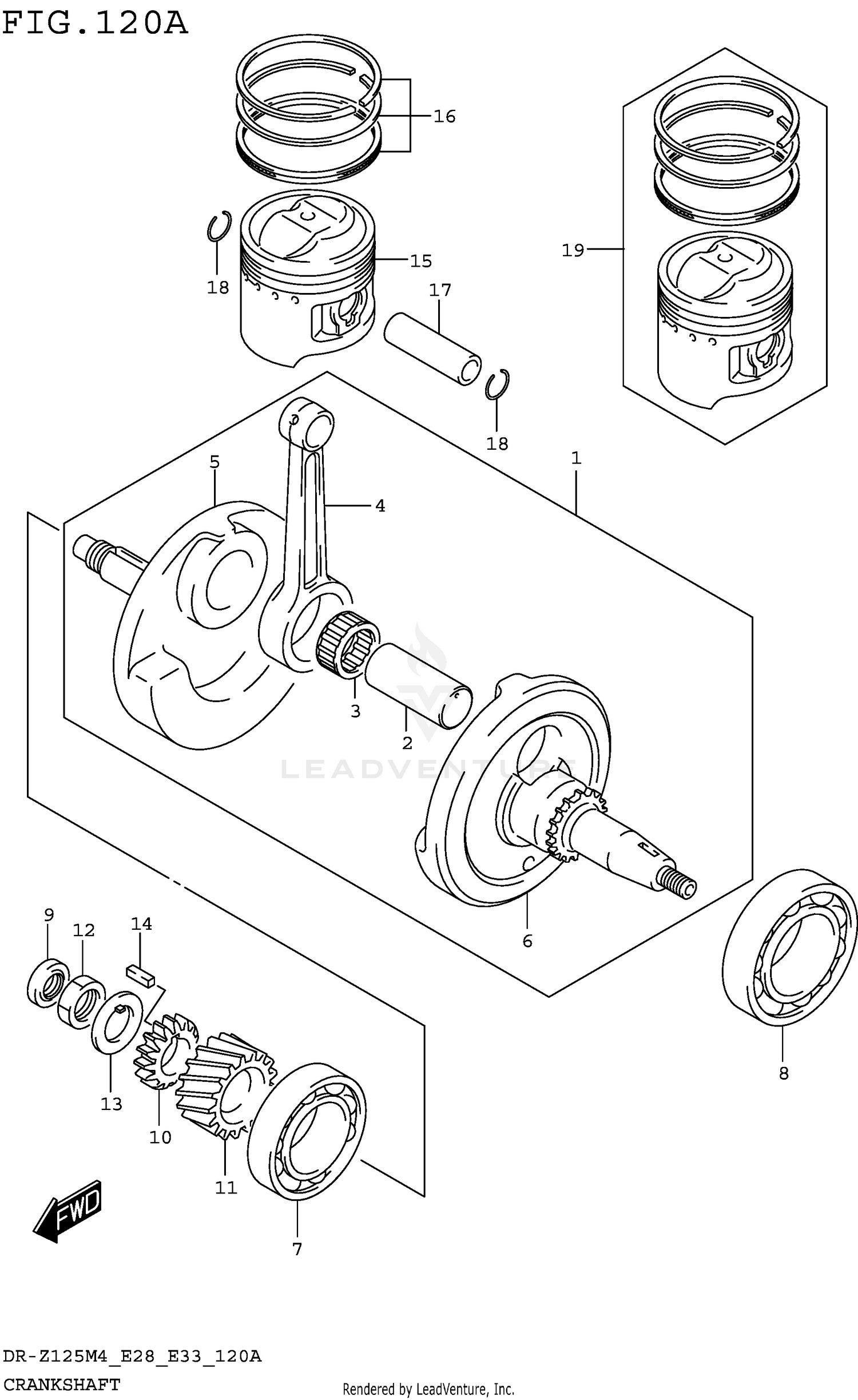

CRANKSHAFT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12200-05240 | CRANKSHAFT ASSY Price: $550.24 |
| 7 | 09262-28014 | BEARING (28X68X18) Price: $71.59 |
| 8 | 09262-35038 | BEARING (35X72X17) Price: $56.94 |
| 9 | 09282-12009 | OIL SEAL (12X21X7) Price: $16.19 |
| 10 | 16321-05201 | GEAR, OIL PUMP DRIVE (NT:15) Price: $23.14 |
| 11 | 21111-05200-0C0 | GEAR, PRIMARY DRIVE (NT:17) Price: $51.58 |
| 12 | 09140-16019 | NUT Price: $4.50 |
| 13 | 09166-16012 | WASHER Price: $2.68 |
| 14 | 09421-04012 | KEY Price: $3.06 |
| 15 | 12111-05202-0F0 | PISTON (YELLOW) Price: $75.56 |
| 16 | 12140-01410 | RING SET, PISTON Price: $45.85 |
| 17 | 12151-05220-0A0 | PIN, PISTON (YELLOW) Price: $14.75 |
| 18 | 09381-14001 | SNAP RING Price: $1.73 |
