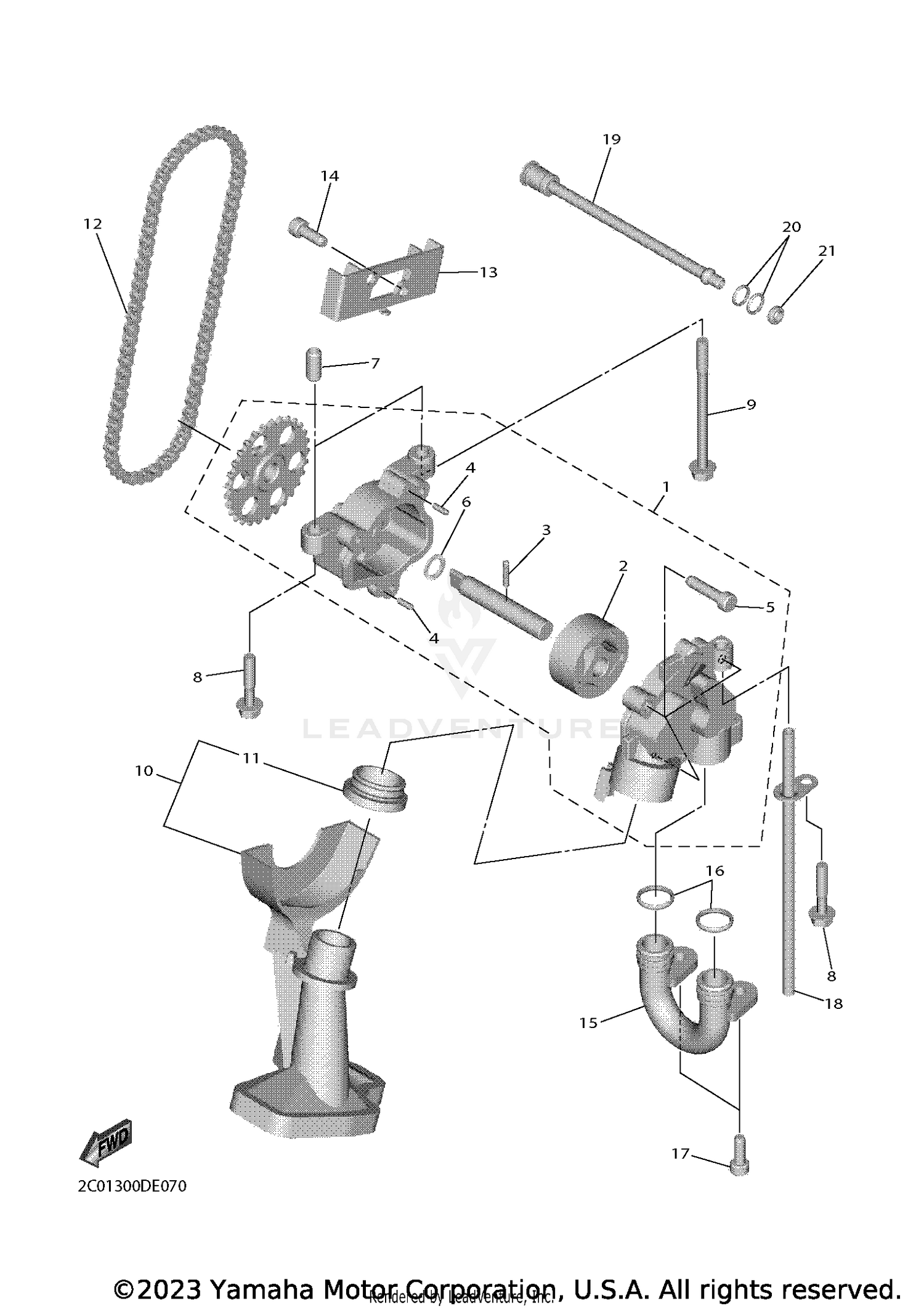

| Ref | Part Number | Description |
|---|
| 1 |
2C0-13300-00-00 |
OIL PUMP ASSY Price: $395.99 |
| 2 |
4SV-13310-00-00 |
ROTOR ASSY 1 Price: $52.99 |
| 3 |
93603-17070-00 |
PIN, DOWEL Price: $4.50 |
| 4 |
93603-09106-00 |
PIN, DOWEL Price: $2.75 |
| 5 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 6 |
90201-113K2-00 |
WASHER, PLATE Price: $10.49 |
| 7 |
91808-17032-00 |
PIN, DOWEL Price: $6.49 |
| 8 |
95812-06030-00 |
BOLT, FLANGE Price: $2.15 |
| 9 |
95812-06080-00 |
BOLT, FLANGE Price: $9.49 |
| 10 |
2C0-13410-00-00 |
STRAINER HOUSING ASSY Price: $50.99 |
| 11 |
2C0-13415-00-00 |
SEAL, OIL STRAINER Price: $15.49 |
| 12 |
94580-25074-00 |
CHAIN Price: $10.49 |
| 13 |
2C0-13898-01-00 |
HOLDER This part replaces 2C0-13898-00-00. Price: $24.99 |
| 14 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 15 |
2C0-13416-00-00 |
PIPE, OIL 1 Price: $57.99 |
| 16 |
93210-14003-00 |
O-RING Price: $9.49 |
| 17 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06161-00. Price: $1.25 |
| 18 |
5EB-13161-00-00 |
PIPE, DELIVERY 1 Price: $17.99 |
| 19 |
2C0-1316E-00-00 |
PIPE, DELIVERY 5 Price: $97.99 |
| 20 |
93210-09350-00 |
O-RING This part replaces 93210-09165-00. Price: $7.49 |
