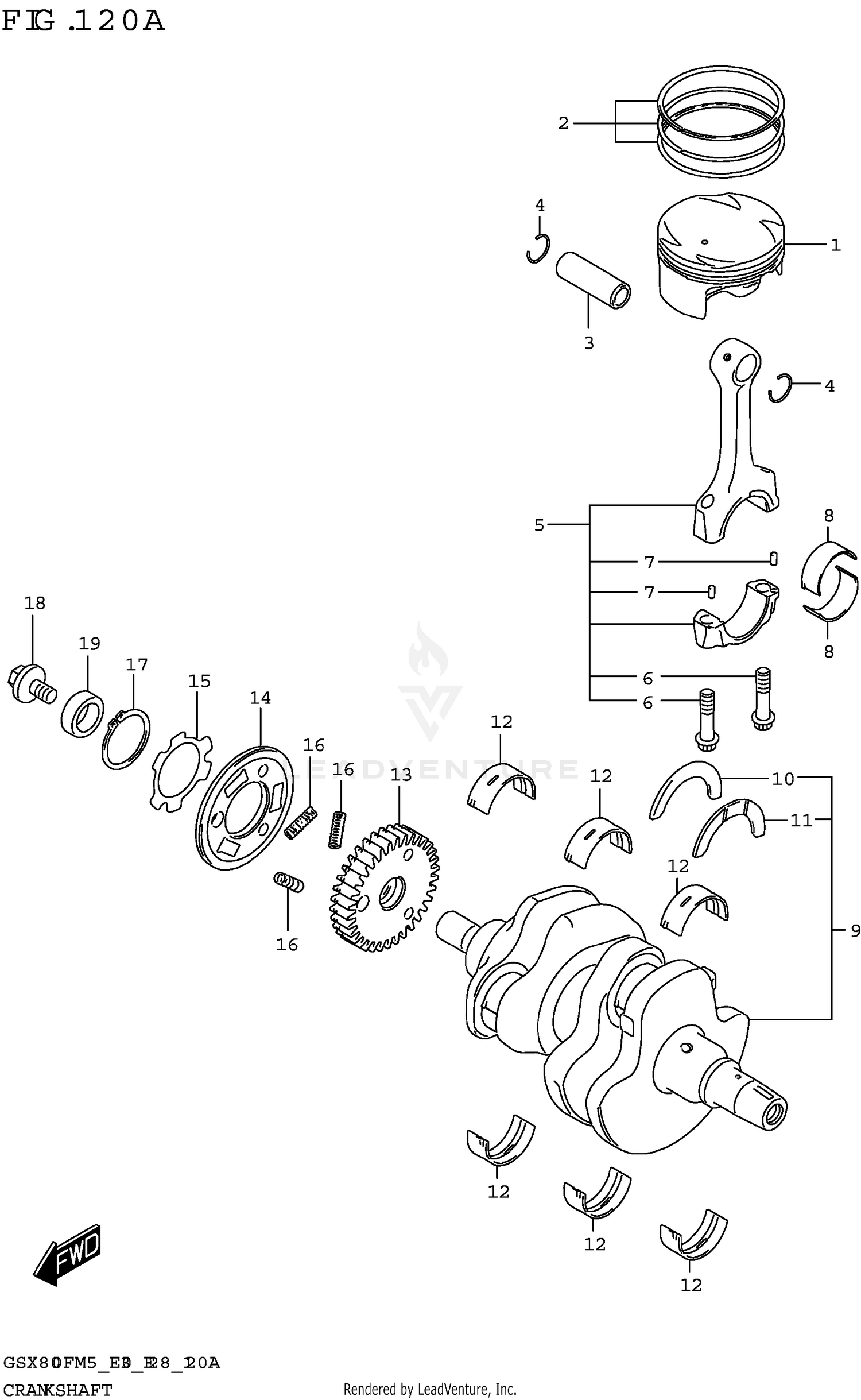

CRANKSHAFT
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 12111-25L00-0F0 | PISTON Price: $163.40 |
| 2 | 12140-25L00 | RING SET,PISTON Price: $65.64 |
| 3 | 12151-07D10 | PIN,PISTON Price: $8.47 |
| 4 | 09381-18002 | CIRCLIP (OD:20.5) Price: $1.75 |
| 5 | 12160-25L00 | CONNROD ASSY Price: $112.91 |
| 9 | 12000-25810 | CRANKSHAFT SET Price: $1,031.41 |
| 13 | 21111-25L00 | GEAR,PRIMARY DRIVE Price: $156.47 |
| 14 | 21112-25L00 | GEAR,PRIMARY DRIVE SCISSORS Price: $73.21 |
| 15 | 21114-25L00 | WASHER,PRI DRIVE SCISSORS WAV Price: $8.26 |
| 16 | 09440-07081 | SPRING Price: $2.04 |
| 17 | 08331-31409 | CIRCLIP Price: $3.77 |
| 18 | 09103-10338 | BOLT (10X19) Price: $8.78 |
