Parts Catalog

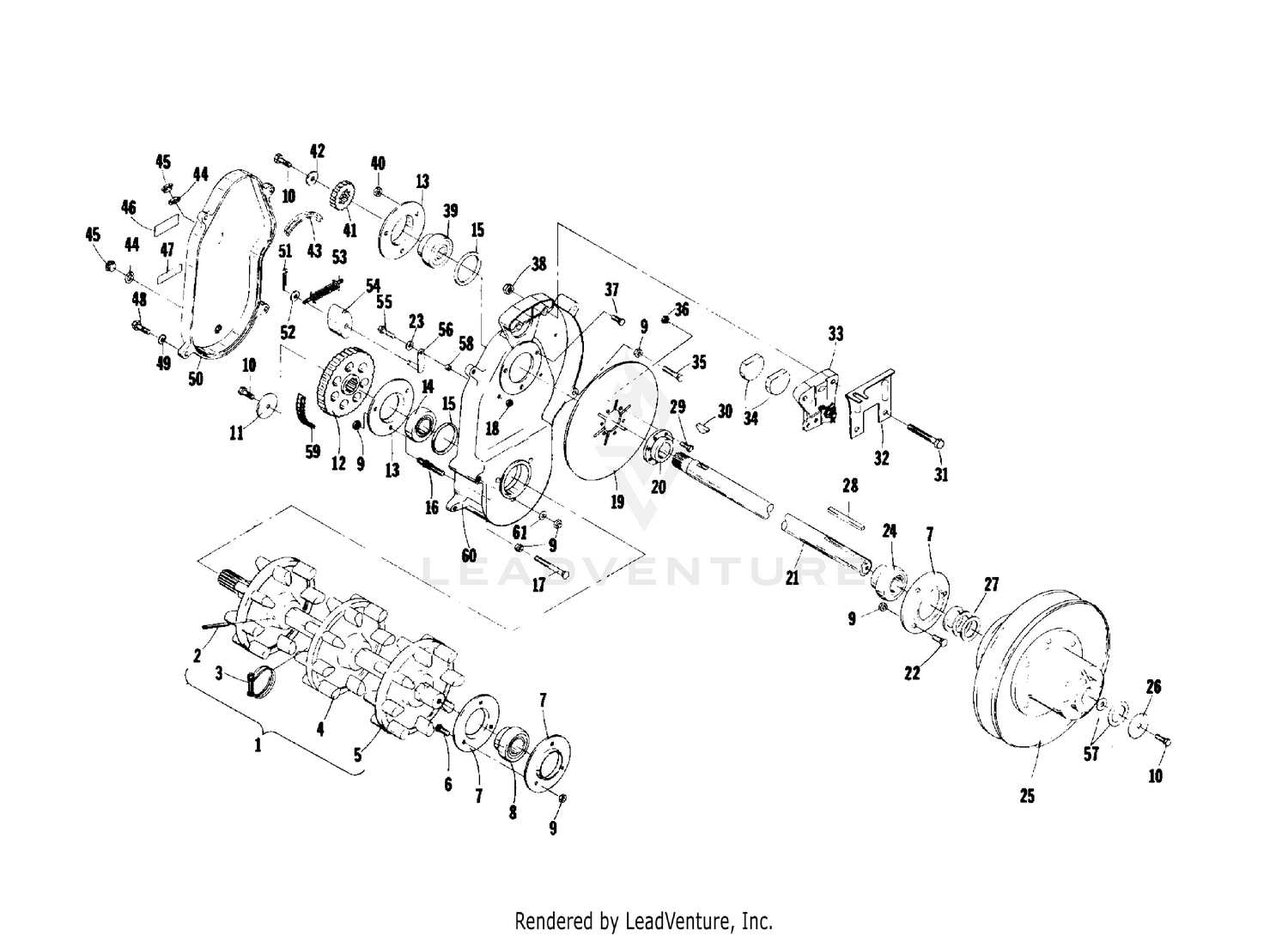

DRIVE TRAIN [51624]

Parts (60)

Ref	Part Number	Description
1	0102-259	Shaft, Drive - Sub-Assembly Price: $128.99
2	8070-383	Pin, Spring Price: $6.95
3	0123-619	CLAMP,HOSE 2.25X2.44-TYPE A Price: $2.95
5	0102-207	Sprocket, Outer Price: $22.34
6	8011-132	Bolt, Carriage Price: $1.92
7	0602-198	PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28
8	1602-375	BEARING,1.00 W/COLLAR Price: $177.95
9	8040-426	Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79
10	8012-130	Screw, Cap Price: $2.19
11	0123-020	Carriage, Spring Washer Price: $16.92
12	0107-325	SPROCKET, 35T (ABOVE 8,000 FT ALT.) Price: $84.95
13	0602-198	PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28
14	1702-179	Kit, Replacement Bearing-1" Price: $83.95
15	0107-003	Seal Price: $1.45
16	0107-233	Stud Price: $19.95
17	8011-140	BOLT,CRG 5/16-18X2.75 GR1 Z&Y Price: $0.39
18	8041-366	Nut, Lock Price: $0.35
19	0109-867	Disc, Brake Price: $52.95
20	0602-040	HUB,BRAKE Price: $99.95
21	0602-223	SHAFT,DRIVEN Price: $177.95
22	8011-130	Bolt, Carriage Price: $1.18
23	8050-217	Washer, Flat Price: $0.24
24	1602-290	BEARING,1 W/LOCK(LARGE RACE) Price: $85.95
25	0226-014	Driven Clutch Assembly Price: $231.00
26	0123-019	Washer, Flat Price: $3.67
27	0123-263	WASHER Price: $0.29
28	0101-076	Key Price: $3.02
29	8006-399	SCREW, CAP-HSH 10-32X.625 Z&Y Price: $0.19
30	0602-598	Key, Woodruff - Hardened Price: $19.35
31	8002-228	Screw, Cap Price: $3.75
32	0109-631	Bracket Price: $0.19
33	0109-632	Caliper, Brake - w/Puck Price: $42.96
34	0109-471	Puck, Brake Price: $3.89
35	8011-137	Bolt, Ribbed Price: $0.32
36	8040-276	NUT,HEX LOCK-NYL 10-32 Z&Y Price: $0.09
37	0123-523	Bolt, Ribbed Price: $5.95
38	8040-486	Nut, Lock Price: $1.20
39	1702-180	Kit, Replacement Bearing-7/8" Price: $68.95
40	8041-426	Nut, Hex - Thin Lock Price: $0.46
41	0107-508	Sprocket (24T) Price: $63.95
42	0123-690	Washer Price: $0.35
43	0107-214	Seal, Dropcase Price: $21.29
44	0123-641	Washer, Fiber Price: $2.79
45	0623-293	Plug, Drain Price: $2.91
46	0106-228	Decal, "Oil Fill" Price: $0.19
47	0106-229	Decal, "Oil Level" Price: $0.19
48	8002-132	SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y Price: $1.20
49	8053-242	Washer, External Tooth Lock Price: $1.53
50	0107-747	Cover, Dropcase Price: $41.95
51	0123-082	Pin, Cotter Price: $0.09
52	8050-212	Washer Price: $0.82
53	0707-026	SPRING, TIGHTENER Price: $12.95
54	0107-411	Pad, Tightener Price: $26.95
55	8002-040	Screw, Cap Price: $0.44
56	0107-226	Arm, Tightener Price: $12.95
57	0123-053	Washer, Flat Price: $1.80
57	0123-578	Washer Price: $2.29
58	0107-234	Spacer Price: $15.67
59	0107-216	Chain, 70P Price: $106.95
60	0107-509	Dropcase, Machined Price: $73.95
