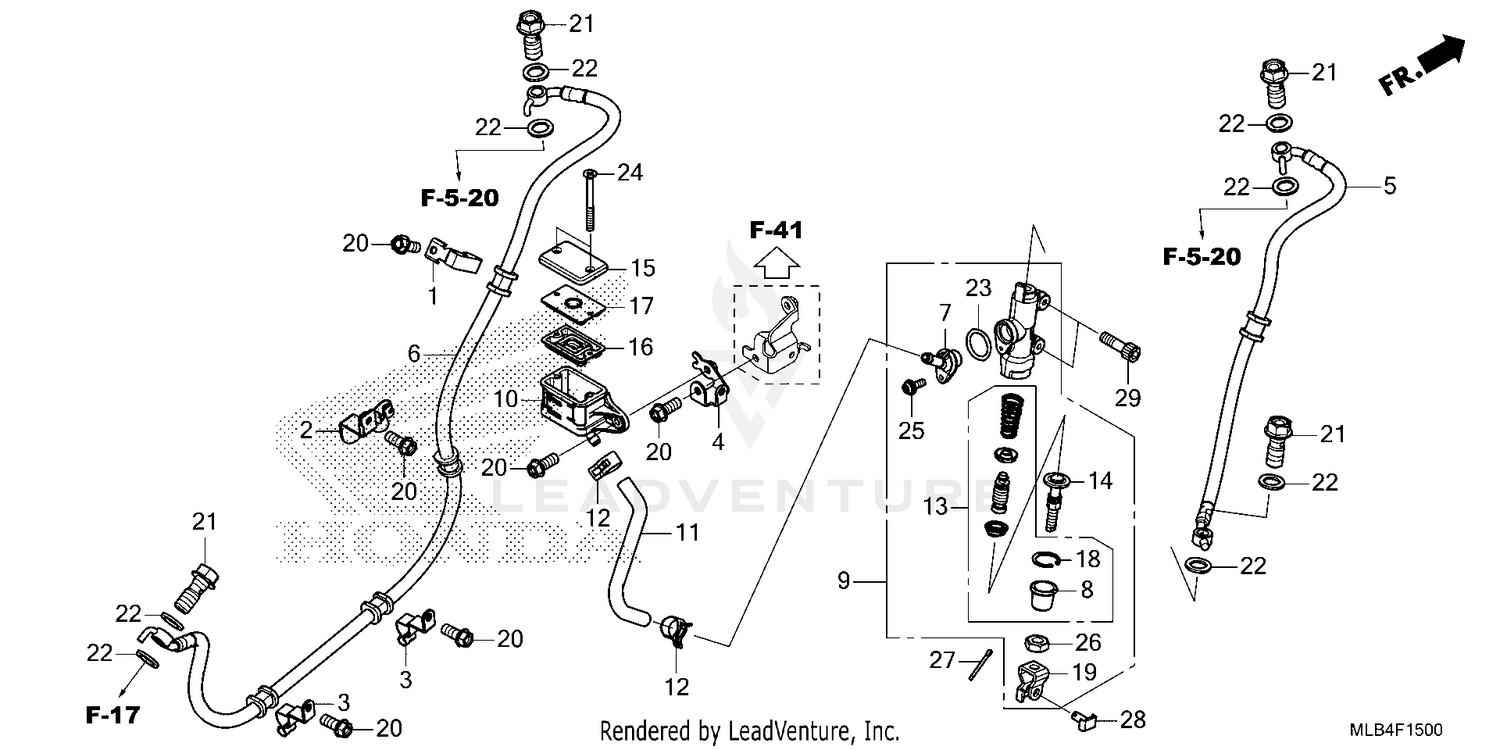

| Ref | Part Number | Description |
|---|
| 1 |
43155-MLB-D00 |
CLAMP A, RR. Price: $5.95 |
| 2 |
43156-MLB-D00 |
CLAMP B, RR. BRK HSE Price: $9.76 |
| 3 |
43157-MLB-D00 |
CLAMP C, RR. BRK HSE Price: $6.31 |
| 4 |
43158-MLB-D00 |
STAY A, OIL CUP Price: $6.51 |
| 5 |
43310-MLB-D01 |
HOSE A, RR. BRAKE Price: $44.04 |
| 6 |
43311-MLB-D01 |
HOSE B, RR. BRAKE Price: $68.29 |
| 7 |
43503-MAH-671 |
CONNECTOR, RR. BRAKE MASTER CYLINDER Price: $13.73 |
| 8 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 9 |
43510-MLB-D01 |
M/CYL SUB-ASSY, RR. Price: $147.75 |
| 10 |
43511-KV3-831 |
CUP, OIL Price: $28.73 |
| 11 |
43512-MLB-D01 |
HOSE, RR. Price: $8.91 |
| 12 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 13 |
43520-MJ6-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $54.98 |
| 14 |
43530-MM5-006 |
ROD, PUSH Price: $31.64 |
| 15 |
45513-HR0-305 |
CAP, MASTER CYLINDER (COO) Price: $5.22 |
| 16 |
45520-MG7-006 |
DIAPHRAGM Price: $12.84 |
| 17 |
45521-HA2-006 |
PLATE, DIAPHRAGM Price: $13.15 |
| 18 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 19 |
46504-MAL-601 |
JOINT, BRAKE ROD Price: $15.31 |
| 20 |
90021-GHB-630 |
BOLT, FLANGE (6X14) Price: $2.55 |
| 21 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 22 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 23 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 24 |
93600-040401G |
SCREW,FLAT,4X40 Price: $0.55 |
| 25 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 26 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 27 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 28 |
95015-54000 |
PIN D, JOINT Price: $5.33 |
