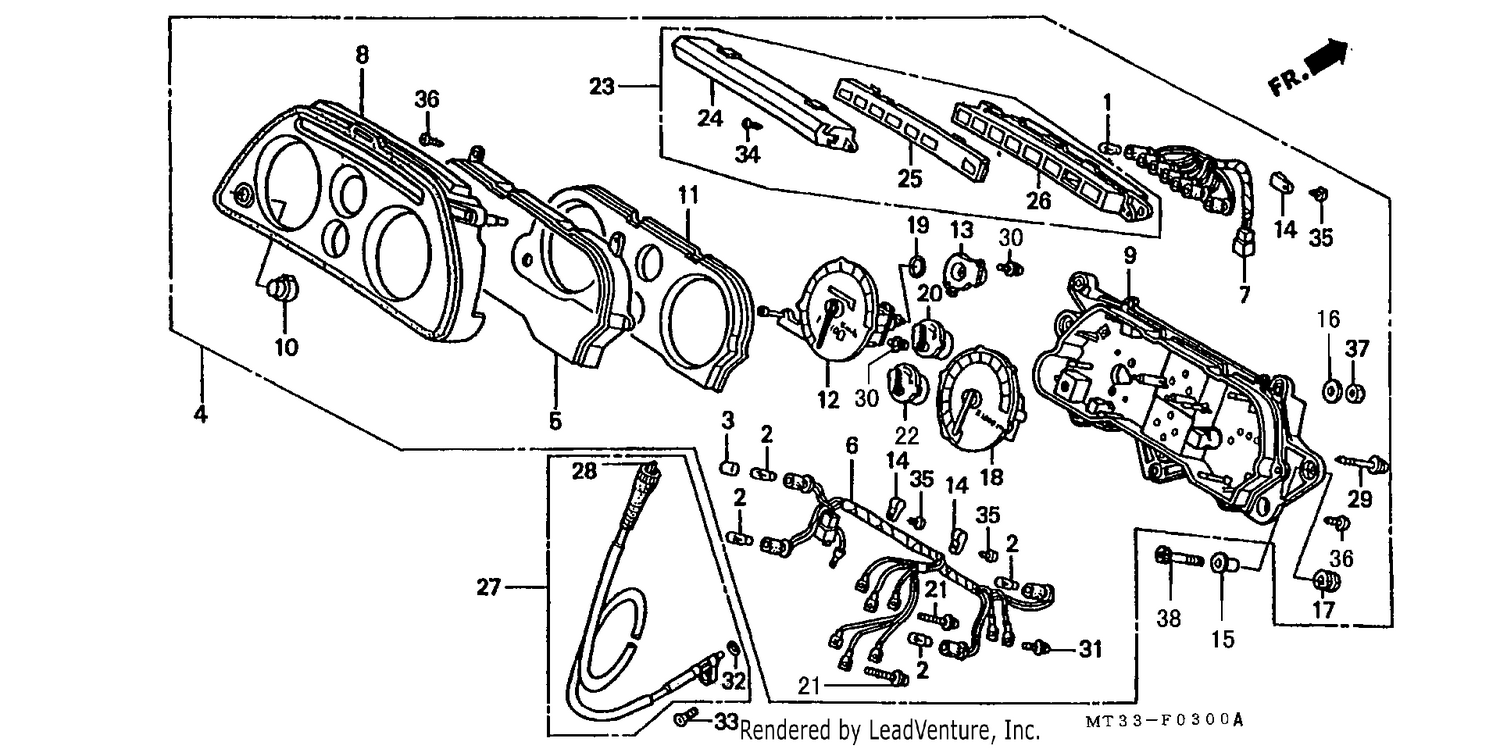

METER (ST1100L/M/N/P/R)

METER (ST1100L/M/N/P/R)

Parts (37)

RefPart NumberDescription
1 34908GA7701 BULB, WEDGE BASE (T10) (12V 3.4W) (NIPPON SEIKI) Price: Call Us
2 34908MB9871 BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY) Price: Call Us
3 34910MN5008 CAP, BULB (T10) (BLUE) Price: Call Us
4 37100MT3751 METER ASSY., COMBINATION (KPH) Price: Call Us
5 37102MS2601 LENS ASSY., METER Price: Call Us
6 37105MT3003 SOCKET COMP. Price: Call Us
7 37106MT3003 SOCKET COMP., PILOT BOX Price: Call Us
8 37110MT3003 VISOR ASSY. Price: Call Us
9 37111MT3003 CASE ASSY. Price: Call Us
10 37112MT3003 KNOB Price: Call Us
11 37130MM5008 PLATE, REFLECTING Price: Call Us
12 37200MT3611 SPEEDOMETER ASSY. Price: Call Us
13 37211MR7008 BOSS, ELBOW Price: Call Us
14 37215MB6831 CLAMP Price: Call Us
15 37243KB7960 COLLAR, SPEEDOMETER MOUNTING Price: Call Us
16 37244MA6008 WASHER, PLAIN Price: Call Us
17 37244MB2008 RUBBER, METER MOUNTING Price: Call Us
18 37250MT3751 TACHOMETER ASSY. Price: Call Us
19 37264MR7008 SEAL Price: Call Us
20 37300MT3003 METER ASSY., FUEL Price: Call Us
21 37305KE5008 SCREW-WASHER, 3X22 Price: Call Us
22 37400MT3003 METER ASSY., TEMPERATURE Price: Call Us
23 37600MT3601 BOX ASSY., PILOT Price: Call Us
24 37601MS2601 LENS, SMOKE Price: Call Us
25 37602MT3003 PANEL Price: Call Us
26 37603MT3003 CASE ASSY., UNDER Price: Call Us
27 44830MT3000 CABLE ASSY., SPEEDOMETER Price: Call Us
28 44831443720 CABLE, SPEEDOMETER INNER Price: Call Us
29 90032ML7671 SCREW, TAPPING, 4X36 Price: Call Us
30 90035166008 SCREW-WASHER, SPECIAL, 4X10 Price: Call Us
31 90108GN2008 SCREW-WASHER, 3X10 Price: Call Us
32 91301027000 O-RING, 6.8X1.9 Price: Call Us
33 93700050200G SCREW, OVAL, 5X20 Price: Call Us
34 9390124410 SCREW, TAPPING, 4X16 Price: Call Us
35 9390324320 SCREW, TAPPING, 4X12 Price: Call Us
36 9390324520 SCREW, TAPPING, 4X20 Price: Call Us
37 94001060000S NUT, HEX., 6MM Price: Call Us
