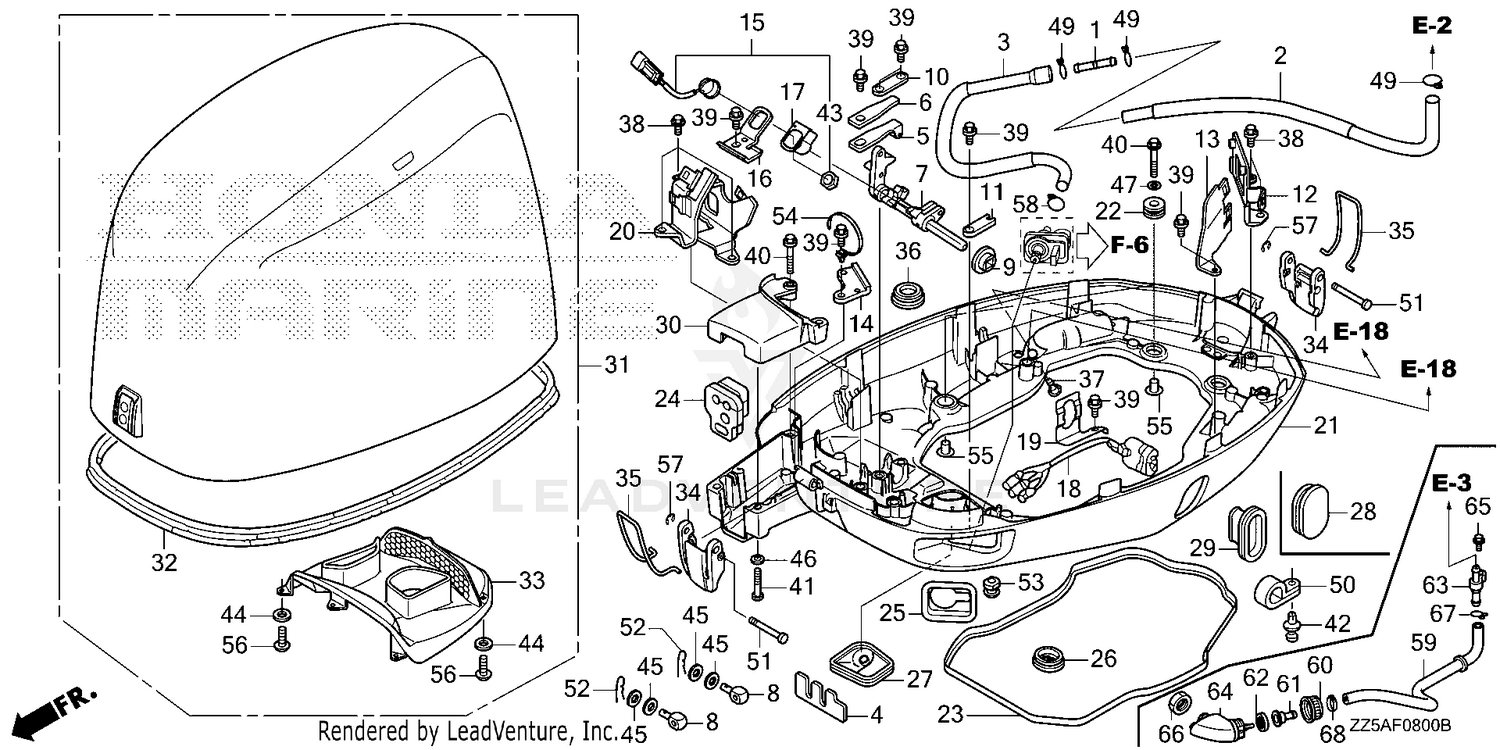

| Ref | Part Number | Description |
|---|
| 1 |
16723-RMA-E00 |
JOINT, FUEL FEED HOSE Price: $8.82 |
| 2 |
16850-ZZ5-A00 |
TUBE A, FUEL (FKM) Price: $34.04 |
| 3 |
16880-ZZ5-A00 |
TUBE D, FUEL (FKM) Price: $44.20 |
| 4 |
17877-ZV5-000 |
PLATE, REMOTE CONTROL CABLE Price: $10.80 |
| 5 |
24210-ZW4-H00 |
SPRING, CLICK Price: $9.66 |
| 6 |
24221-ZV4-010 |
SEE PART DETAILS - PRI; SPRING, CLICK ASSIST Price: $10.00 |
| 7 |
24610-ZZ5-000 |
SHAFT, SHIFT Price: $48.02 |
| 8 |
24618-ZZ5-000 |
PIVOT, SHIFT Price: $31.48 |
| 9 |
24621-ZV4-010 |
BUSH, SHAFT Price: $5.94 |
| 10 |
24625-ZV5-010 |
SEE PART DETAILS - PRI; PLATE, SHIFT Price: $3.08 |
| 11 |
24626-ZV5-010 |
SEE PART DETAILS - PRI; PLATE, SHIFT SHAFT Price: $3.08 |
| 12 |
31753-ZZ5-000 |
BRACKET, REGULATOR Price: $59.18 |
| 13 |
32102-ZZ5-010 |
BRACKET, CONNECTOR B Price: $7.60 |
| 14 |
32112-ZZ5-000 |
BRACKET, CABLE CLIP Price: $4.92 |
| 15 |
35470-ZZ5-023 |
SWITCH ASSY., NEUTRAL Price: $62.74 |
| 16 |
35616-ZV5-010 |
SEE PART DETAILS - PRI; BRACKET, NEUTRAL SWITCH Price: $12.34 |
| 17 |
35618-ZW9-020 |
PLATE, NEUTRAL SWITCH (NOT AVAILABLE) Price: $6.42 |
| 18 |
35640-ZZ5-003 |
SWITCH ASSY., POWER TILT Price: $85.04 |
| 19 |
35645-ZV5-020 |
STAY Price: $12.58 |
| 20 |
38582-ZZ5-000 |
BRACKET, MAIN RELAY Price: $114.04 |
| 21 |
06400-ZZ5-M01ZB |
CASE,KIT *NHB14M* Price: $371.04 |
| 22 |
40102-ZV5-000 |
GROMMET, CASE (LOWER) Price: $3.62 |
| 23 |
40103-ZV5-000 |
SEAL, CASE (LOWER) Price: $33.34 |
| 24 |
40105-ZZ5-000 |
GROMMET, CASE (LOWER) (A) Price: $19.06 |
| 25 |
40106-ZV5-000 |
GROMMET, CASE (LOWER) (B) Price: $10.80 |
| 26 |
40107-ZV5-820 |
GROMMET, CASE (LOWER) (C) Price: $8.30 |
| 27 |
40109-ZV5-000 |
GROMMET, CASE (LOWER) (E) Price: $19.26 |
| 29 |
40114-ZV5-821 |
SEE PART DETAILS - PRI; GROMMET, CASE (LOWER) Price: $14.02 |
| 30 |
40151-ZV5-000ZB |
CASE, SEPARATE *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $57.18 |
| 31 |
63100-ZZ5-010ZB |
COVER, ENGINE *NHB14M* (AQUA MARINE SILVER METALLIC) Price: $1,015.96 |
| 32 |
63102-ZZ5-000 |
SEAL, ENGINE COVER Price: $49.20 |
| 33 |
63144-ZZ5-300 |
GUIDE, ENGINE COVER AIR Price: $65.48 |
| 34 |
63232-ZY9-010 |
LEVER, FASTENER Price: $16.62 |
| 35 |
63237-ZY9-000 |
WIRE, FASTENER Price: $10.92 |
| 36 |
63515-ZC0-700 |
CAP, L. SIDE COVER Price: $7.94 |
| 37 |
82873-ZY9-000 |
GROMMET, WATER CHECK Price: $6.00 |
| 38 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 39 |
90013-ZV0-010 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) Price: $2.46 |
| 40 |
90016-ZZ5-M01 |
BOLT, FLANGE (6X28) Price: $1.94 |
| 41 |
90114-881-000 |
BOLT, HEX. (6X40) Price: $4.46 |
| 42 |
90127-ZV5-003 |
SCREW, RIVET (5X10) Price: $2.66 |
| 43 |
90302-ZV5-003 |
NUT, HEX. (20MM) Use up to Frame SN 1300359. Price: $7.22 |
| 44 |
90452-GK4-600 |
SEE PART DETAILS - PRI; WASHER, PLAIN (5MM) Price: $1.76 |
| 45 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 46 |
90506-ZV4-000 |
WASHER, PLAIN (6MM) Use up to Frame SN 4800342. Price: $3.36 |
| 47 |
90508-ZZ5-M01 |
WASHER, PLAIN (6MM) This part replaces 90508-ZY3-000. Price: $2.48 |
| 49 |
90604-ZV0-000 |
SEE PART DETAILS - PRI; CLIP, TUBE (B12) Price: $1.88 |
| 50 |
90628-750-000 |
CLIP (14MM) Price: $2.90 |
| 51 |
90754-ZY9-000 |
PIN (5X44.5) Price: $4.40 |
| 52 |
90765-ZW1-000 |
PIN, SPECIAL LOCK (6MM) Price: $2.88 |
| 54 |
91540-STK-003 |
CLIP, HARNESS BAND (155.3MM) (BLACK) Price: $5.68 |
| 55 |
91553-ZV5-010 |
SEE PART DETAILS - PRI; COLLAR, MODULE IGNITION CONTROL CASE (CDI) Price: $3.66 |
| 56 |
93500-05012-4J |
SCREW, PAN (5X12) Price: $1.88 |
| 57 |
94540-04029 |
E-RING (4MM) Price: $6.42 |
