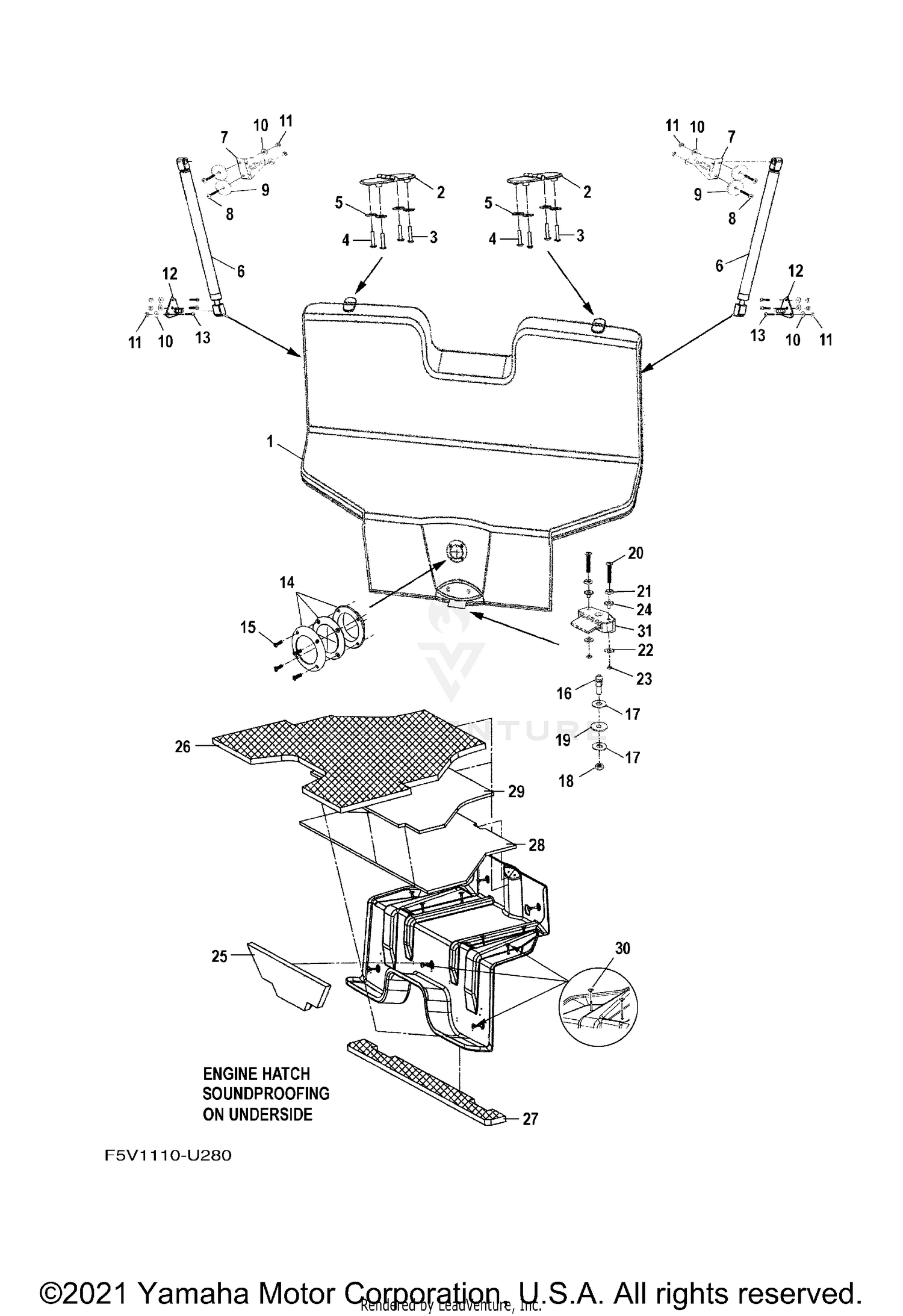

| Ref | Part Number | Description |
|---|
| 1 |
F3F-U516A-20-00 |
ENGINE HATCH COMP. Price: $1,726.99 |
| 2 |
F1T-U2826-20-00 |
HINGE 5 Price: $53.99 |
| 3 |
90149-14SD2-00 |
SCREW Price: $5.99 |
| 4 |
90149-14SB9-00 |
SCREW Price: $6.99 |
| 5 |
90209-14SA2-00 |
WASHER Price: $1.99 |
| 6 |
F3F-U2896-30-00 |
SUPPORT, HATCH 2 Price: $31.99 |
| 7 |
F3F-U2899-00-00 |
BRACKET, HATCH SUPPORT 2 Price: $11.99 |
| 8 |
90149-10SD6-00 |
SCREW Price: $6.99 |
| 9 |
90209-14SA3-00 |
WASHER Price: $5.99 |
| 10 |
90201-10S00-00 |
WASHER, PLATE Price: $4.99 |
| 11 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 12 |
F1C-U288B-00-00 |
BASE, HATCH SUPPORT Price: $11.99 |
| 13 |
90157-10S16-00 |
SCREW, PAN HEAD Price: $4.99 |
| 14 |
F2D-U273A-00-00 |
PLATE 2 ASSY Price: $32.99 |
| 15 |
90161-08SA4-00 |
SCREW, TAPPING Price: $4.99 |
| 16 |
GP1-U3774-01-00 |
PIN Price: $29.99 |
| 17 |
90209-17SA5-00 |
WASHER Price: $5.99 |
| 18 |
95680-10100-00 |
NUT, U Price: $6.99 |
| 19 |
GP1-U5194-01-00 |
WASHER, SPECIAL Price: $17.99 |
| 20 |
90152-14S36-00 |
SCREW, COUNTERSUNK Price: $6.99 |
| 21 |
90209-14SA6-00 |
WASHER Price: $5.99 |
| 22 |
90201-14S00-00 |
WASHER, PLATE Price: $6.99 |
| 23 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 24 |
F0R-U2821-00-00 |
WASHER, HINGE 1 Price: $11.99 |
| 25 |
F3F-U5164-30-00 |
SOUND-PROOF 1 Price: $61.99 |
| 26 |
F3F-U5166-30-00 |
SOUND-PROOF 3 Price: $218.99 |
| 27 |
F3F-U5165-00-00 |
SOUND-PROOF 2 Price: $20.99 |
| 28 |
F3F-U5166-00-00 |
SOUND-PROOF 3 Price: $54.99 |
| 29 |
F3F-U5166-10-00 |
SOUND-PROOF 3 Price: $117.99 |
| 30 |
F3F-U4817-00-00 |
NUT, SPECIAL Price: $6.99 |
