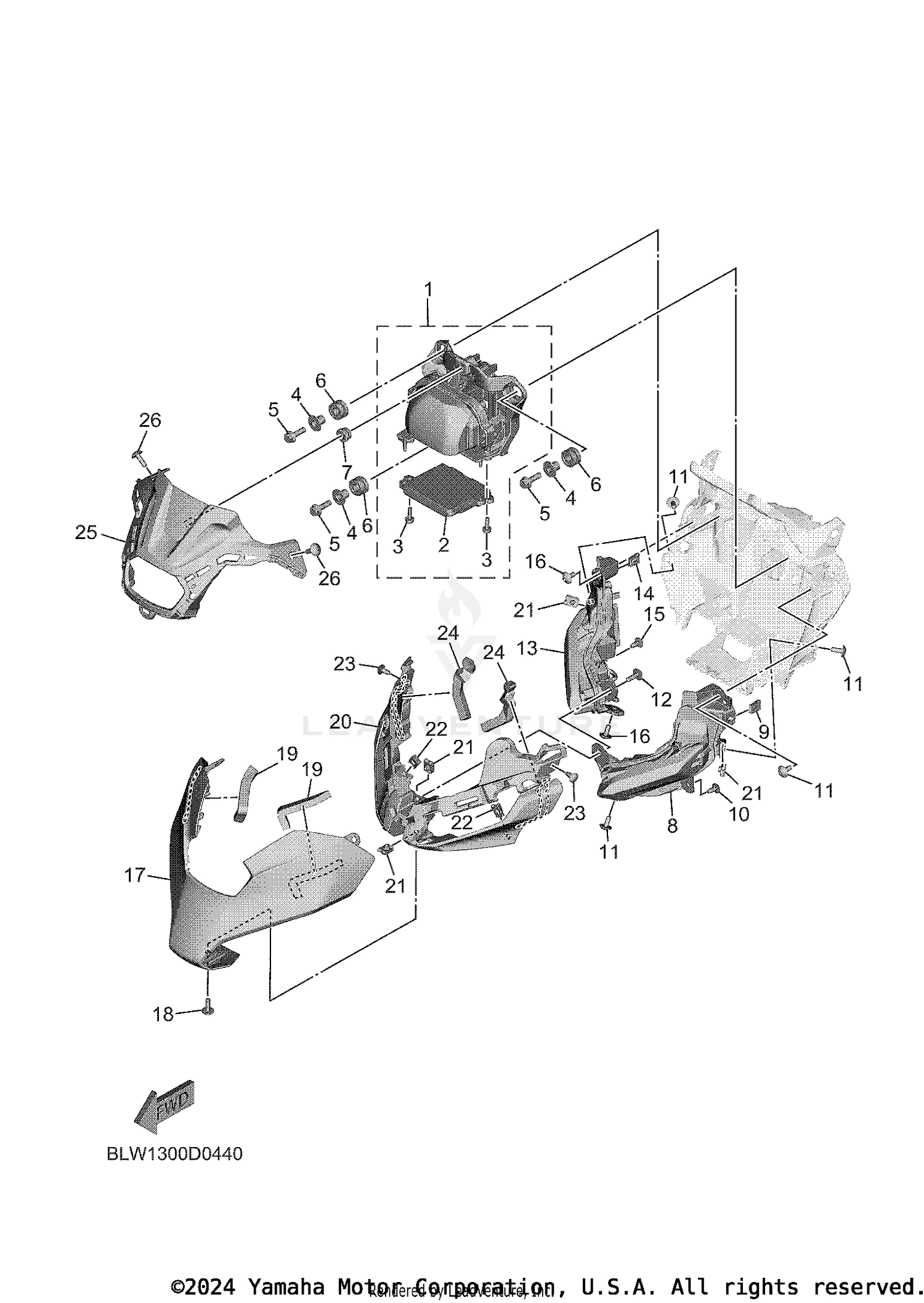

| Ref | Part Number | Description |
|---|
| 1 |
BME-84300-00-00 |
HEADLIGHT ASSY Price: $448.99 |
| 3 |
2PW-84192-00-00 |
SCREW, SPECIAL Price: $3.10 |
| 4 |
90387-06161-00 |
COLLAR Price: $9.49 |
| 5 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95822-06020-00. Price: $3.50 |
| 6 |
4XV-83513-00-00 |
DAMPER Price: $8.49 |
| 7 |
90480-10003-00 |
GROMMET Price: $9.49 |
| 8 |
BLW-84301-00-00 |
PILOT LIGHT ASSY 1 Price: $198.99 |
| 9 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 10 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 11 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 12 |
90111-05034-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 13 |
BLW-84302-00-00 |
PILOT LIGHT ASSY 2 Price: $198.99 |
| 14 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 15 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 16 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 18 |
90111-05021-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 19 |
90520-10023-00 |
DAMPER, PLATE Price: $1.65 |
| 20 |
BLW-23122-00-00 |
COVER, OUTER 1 Price: $31.99 |
| 21 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 22 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 23 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 24 |
90520-10023-00 |
DAMPER, PLATE Price: $1.65 |
| 25 |
BLW-84369-00-00 |
COVER 1 Price: $22.99 |
