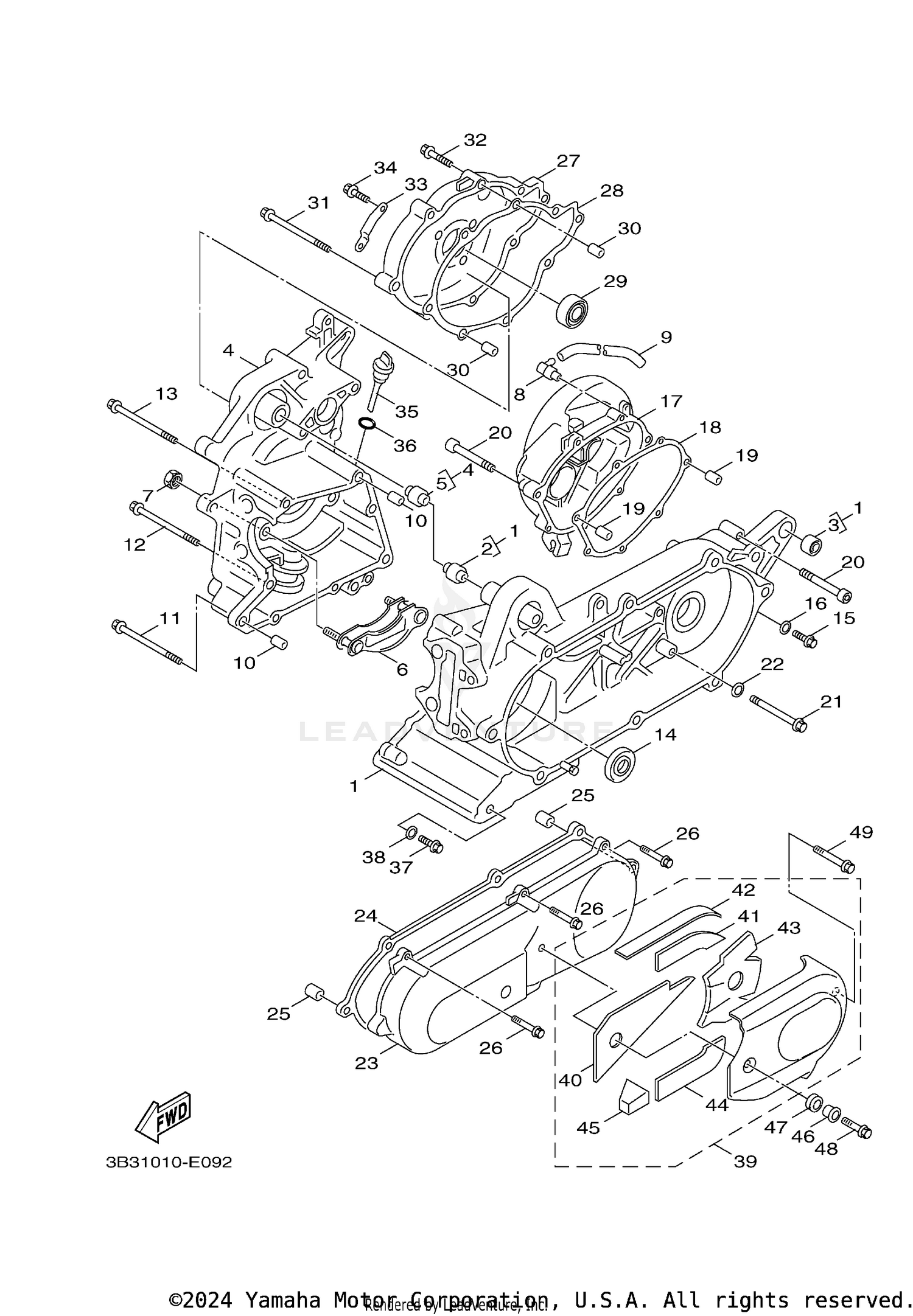

| Ref | Part Number | Description |
|---|
| 1 |
3B3-WE511-01-00 |
CRANKCASE 1 Price: $160.99 |
| 2 |
5ST-F2123-00-00 |
BUSH 1 Price: $6.49 |
| 3 |
164-22216-00-00 |
BUSH, REAR SHOCK ABSORBER This part replaces 4X6-F2216-00-00. Price: $14.49 |
| 4 |
5ST-WE512-10-00 |
CRANKCASE 2 Price: $127.99 |
| 5 |
5ST-F2123-00-00 |
BUSH 1 Price: $6.49 |
| 6 |
5ST-E5142-10-00 |
GUIDE 1 Price: $1.95 |
| 7 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 8 |
5ST-E5371-00-00 |
BREATHER Price: $1.00 |
| 9 |
3B3-E5373-00-00 |
PIPE, BREATHER Price: $0.90 |
| 10 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 11 |
90105-06808-00 |
BOLT, FLANGE Price: $2.05 |
| 12 |
90105-06810-00 |
BOLT, FLANGE Price: $2.35 |
| 13 |
95027-06100-00 |
BOLT, FLANGE Price: $2.00 |
| 14 |
93102-19804-00 |
OIL SEAL Price: $3.15 |
| 15 |
95817-08016-00 |
BOLT,FLANGE (JN5) Price: $5.49 |
| 16 |
90430-08119-00 |
GASKET Price: $7.49 |
| 17 |
3B3-E5421-00-00 |
COVER, CRANKCASE 2 Price: $49.99 |
| 18 |
3B3-E5461-00-00 |
GASKET, CRANKCASE COVER 2 Price: $5.49 |
| 19 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 20 |
95027-06035-00 |
BOLT, FLANGE Price: $2.40 |
| 21 |
95817-06040-00 |
BOLT, FLANGE Price: $6.49 |
| 22 |
90430-06014-00 |
GASKET Price: $8.60 |
| 24 |
3B3-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $11.49 |
| 25 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 26 |
95027-06025-00 |
BOLT, FLANGE Price: $4.16 |
| 27 |
5ST-E5417-10-00 |
COVER, CAP Price: $24.99 |
| 28 |
5ST-E5453-10-00 |
GASKET Price: $5.49 |
| 29 |
93102-17807-00 |
OIL SEAL Price: $3.15 |
| 30 |
91810-14807-00 |
PIN, DOWEL Price: $1.75 |
| 31 |
90105-06895-00 |
BOLT, FLANGE Price: $1.70 |
| 32 |
90105-06898-00 |
BOLT, FLANGE Price: $2.00 |
| 33 |
3B3-E5113-00-00 |
PLATE Price: $1.15 |
| 34 |
90105-06896-00 |
BOLT, FLANGE Price: $0.35 |
| 35 |
3B3-E5362-00-00 |
PLUG, OIL LEVEL Price: $3.10 |
| 36 |
5ML-E3769-00-00 |
O-RING Price: $0.40 |
| 37 |
95817-08016-00 |
BOLT,FLANGE (JN5) Price: $5.49 |
| 38 |
90430-08119-00 |
GASKET Price: $7.49 |
| 39 |
3B3-XE543-00-00 |
COVER, CRANKCASE 3 Price: $26.99 |
| 40 |
3B3-E5316-00-00 |
DAMPER, ENGINE MOUNT 1 Price: $2.05 |
| 41 |
3B3-E5326-00-00 |
DAMPER, ENGINE MOUNT 2 Price: $0.90 |
| 42 |
3B3-E5335-00-00 |
DAMPER 3 Price: $0.70 |
| 43 |
3B3-E5337-00-00 |
DAMPER 4 Price: $1.85 |
| 44 |
3B3-E533C-00-00 |
DAMPER 7 Price: $1.15 |
| 45 |
3B3-E533D-00-00 |
DAMPER 8 Price: $0.90 |
| 46 |
90387-06877-00 |
COLLAR Price: $1.45 |
| 47 |
90480-12237-00 |
GROMMET Price: $3.10 |
| 48 |
95827-06065-00 |
BOLT, FLANGE Price: $2.20 |
