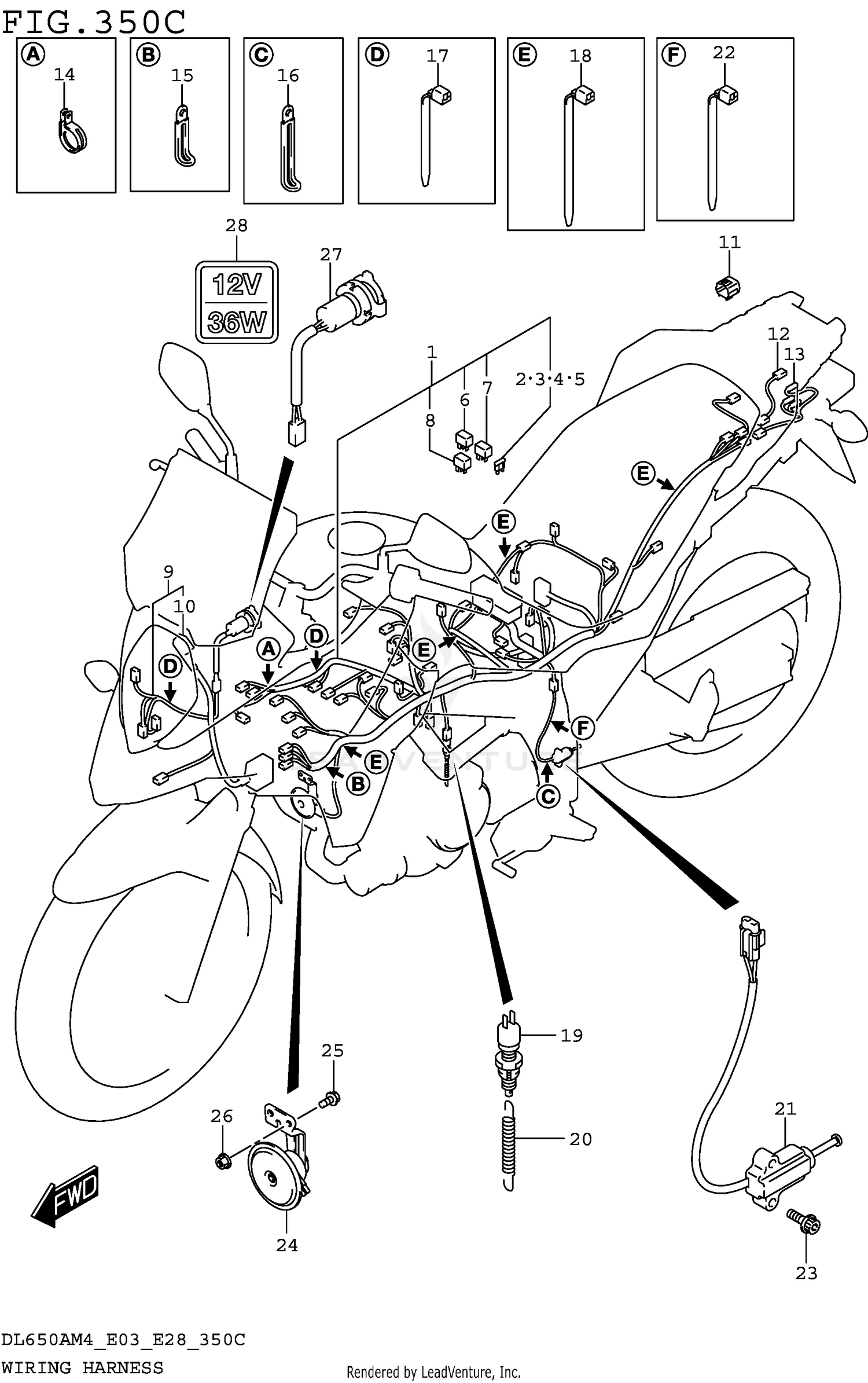

WIRING HARNESS (DL650AM4 E33)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-28K21 | HARNESS, WIRING NO.1 Price: Call Us |
| 9 | 36620-28K00 | HARNESS, WIRING NO.2 Price: $228.38 |
| 12 | 36853-28K00 | WIRE, REAR COMB LEAD Price: $30.13 |
| 13 | 36856-28K00 | WIRE, REAR TURNSIGNAL LEAD Price: $31.71 |
| 14 | 09403-26402 | CLAMP Price: $4.12 |
| 15 | 09404-06030 | CLAMP (L:80) Price: Call Us |
| 16 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 17 | 09407-14403 | CLAMP (L:125) Price: $2.72 |
| 18 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 19 | 37740-31D00 | SWITCH ASSY,STOP LAMP Price: $35.87 |
| 20 | 09443-06012 | SPRING Price: $3.91 |
| 21 | 37840-06G02 | SWITCH ASSY,SIDE STAND This part replaces 37840-06G01. Price: $65.20 |
| 22 | 09407-10404 | CLAMP (L:100) Price: $3.06 |
| 23 | 01550-0616A | BOLT Price: $2.37 |
| 24 | 38500-11J00 | HORN ASSY Price: $90.25 |
| 25 | 09118-06017 | BOLT (6X16) Price: $2.50 |
| 26 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 27 | 38850-31J00 | TERMINAL,POWER SOURCE Price: $79.36 |
