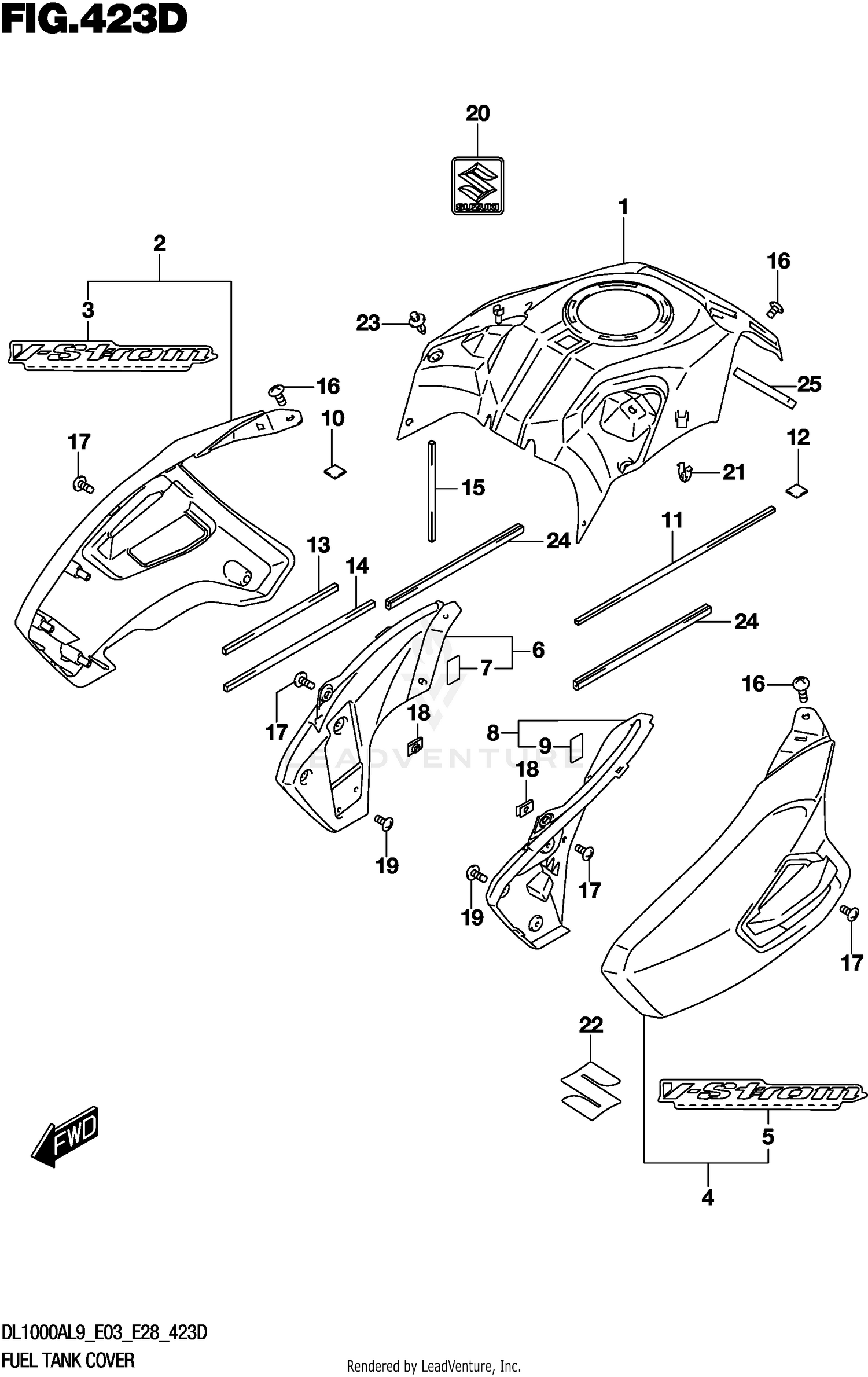

FUEL TANK COVER (DL1000AL9 E03)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 44191-31J01-YKV | COVER,FUEL TANK This part replaces 44191-31J00-YKV. Price: $315.73 |
| 2 | 44170-31J31-YKV | COVER COMP,FUEL This part replaces 44170-31J30-YKV. Price: $203.23 |
| 4 | 44180-31J31-YKV | COVER COMP,FUEL This part replaces 44180-31J30-YKV. Price: $203.23 |
| 6 | 44270-31J00 | COVER, FUEL TANK FRONT RH Price: $44.90 |
| 8 | 44280-31J00 | COVER, FUEL TANK FRONT LH Price: $44.90 |
| 11 | 44277-01H00 | CUSHION, TANK COVER NO.1 Price: $6.58 |
| 12 | 94642-10GA0 | CUSHION (15X15X2) Price: $4.37 |
| 13 | 44176-31J00 | CUSHION (5X120X6) Price: $2.98 |
| 14 | 44177-31J00 | CUSHION, TANK COVER SIDE NO.2 Price: $3.34 |
| 15 | 44178-31J00 | CUSHION Price: $3.11 |
| 16 | 09139-06172 | SCREW (6X10) Price: $3.70 |
| 17 | 09139-05074 | BOLT (5X13) Price: $3.02 |
| 18 | 09148-05052 | NUT (M5) Price: $4.10 |
| 19 | 03241-0516B | SCREW Price: $2.12 |
| 20 | 68281-47HA0 | EMBLEM,"S" Price: $9.59 |
| 21 | 09409-08326 | CLIP (10.5X14.3) Price: $2.87 |
| 23 | 09409-06314-5PK | CLIP This part replaces 09409-06314. Price: $3.23 |
| 24 | 44552-24B00 | MOLDING, FUEL TANK (L:110) Price: $17.90 |
