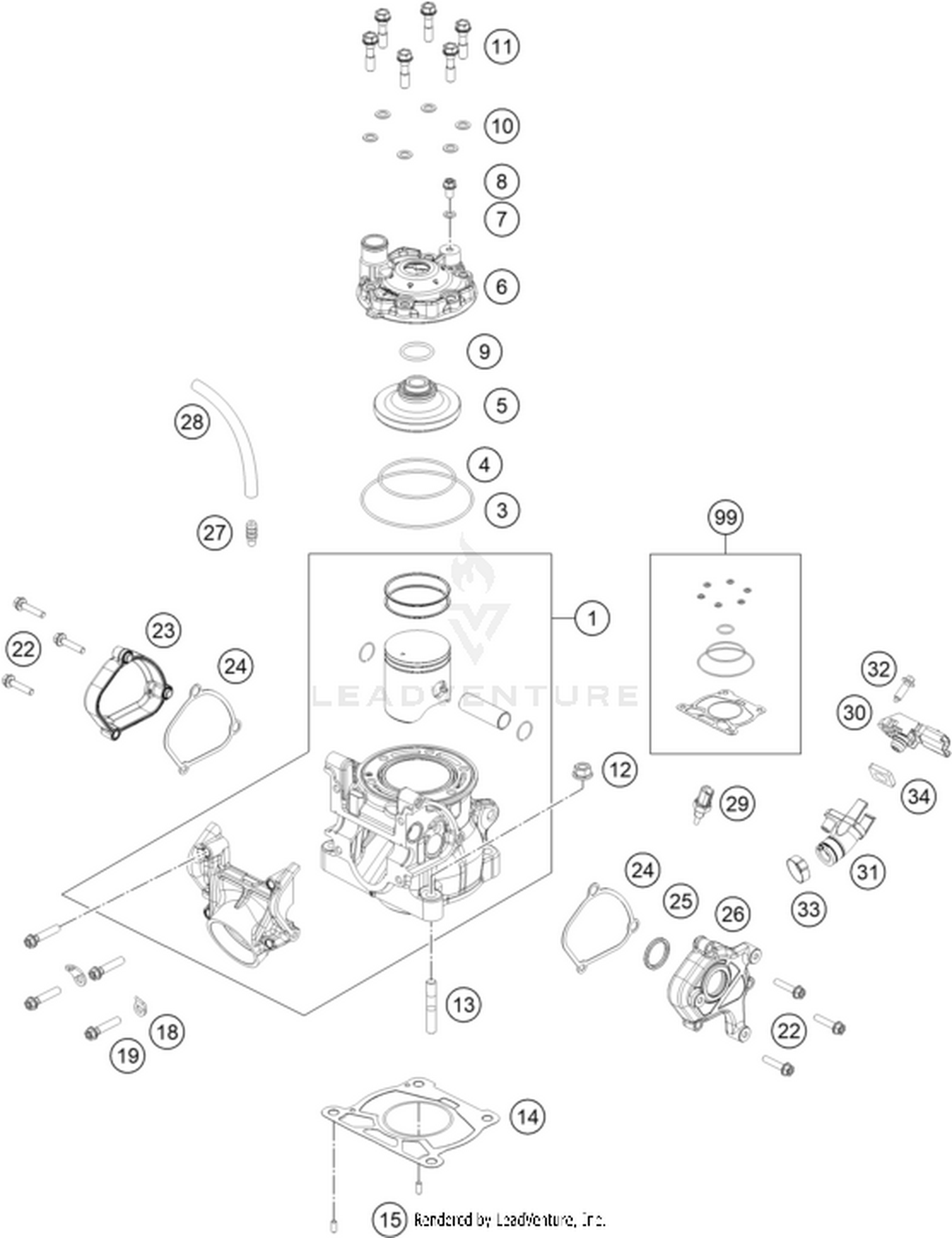

30 CYLINDER, CYLINDER HEAD
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A43030138000 | Cylinder + Piston cpl. 150 End Price: Call Us |
| 3 | 0770890200 | O-RING 89X2 NBR 70 SH Price: Call Us |
| 4 | 0770600200 | O-RING 60X2 FPM 75SH Price: Call Us |
| 5 | A43030060000 | Combustion chamber insert Price: Call Us |
| 6 | A42030006100 | Cylinder head Price: Call Us |
| 7 | 0603061001 | CU-SEAL RING DIN7603-6X10X1 Price: Call Us |
| 8 | 0025060106 | HH collar screw M6x10 TX30 Price: Call Us |
| 9 | 07702300251 | O-ring 23.00X2.5 NBR 70 SH Price: Call Us |
| 10 | 0603070121 | CU-SEAL RING DIN7603- 7,3X12X1 Price: Call Us |
| 11 | 50430079100 | Cylinder head bolt Price: Call Us |
| 12 | 50330045000 | HH COLLAR NUT M 8 WS=12 Price: Call Us |
| 13 | 0835080326 | STUD DIN 835 M8X32 Price: Call Us |
| 14 | A42030035020 | Cylinder base gasket Price: Call Us |
| 14 | A42030035025 | Cylinder base gasket Price: Call Us |
| 14 | A42030035030 | Cylinder base gasket Price: Call Us |
| 14 | A42030035040 | Cylinder base gasket Price: Call Us |
| 14 | A42030035050 | Cylinder base gasket Price: Call Us |
| 15 | 0402040980 | Needle roll.DIN5402 NRB 4X9.8 Price: Call Us |
| 18 | 51005174000 | Retaining cap This part replaces 51005074000. Price: Call Us |
| 19 | 0025060256 | HH collar screw M6x25 TX30 Price: Call Us |
| 22 | 0025050256 | HH COLLAR SCREW M5X25 ISA30 Price: Call Us |
| 24 | A42037006000 | Gasket, control lid left Price: Call Us |
| 25 | 0770002226200 | X-ring 21.89x2.62 FKM 70 Price: Call Us |
| 27 | 78036020090 | VACUUM CONNECTION M6 Price: Call Us |
| 28 | A44030087000 | Engine vent hose Price: Call Us |
| 31 | A44041087000 | Pressure sensor flange Price: Call Us |
| 32 | 0017060206 | SCREW F. PLASTIC K60X20AL SW6 Price: Call Us |
| 33 | 00050210706 | VARIABLE ONE-EAR CLAMP 21,0MM Price: Call Us |
| 34 | A45041075050 | Pressure sensor EPDM plate Price: Call Us |
