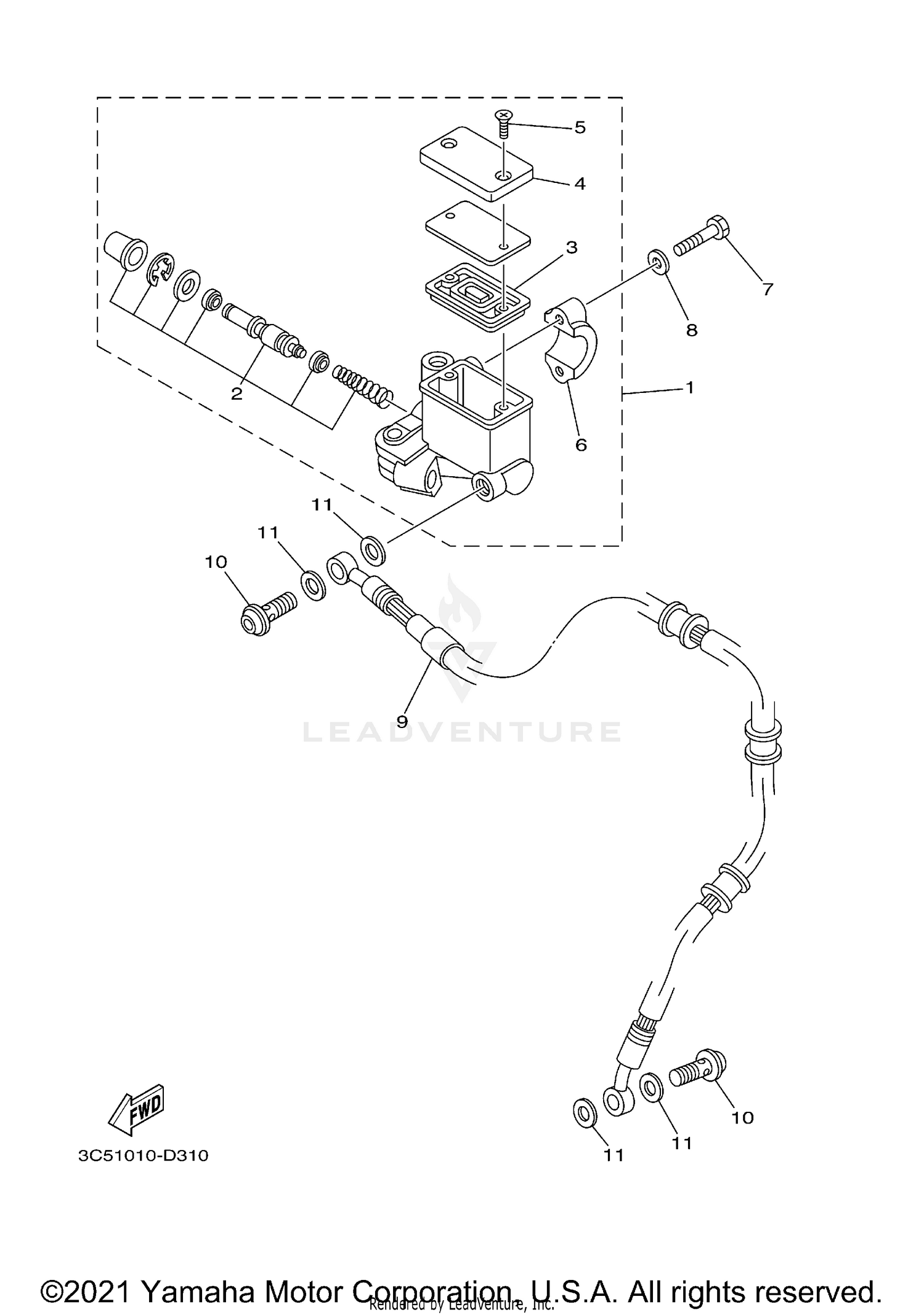

FRONT MASTER CYLINDER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5XT-2583T-00-00 | MASTER CYLINDER ASSY Price: $241.99 |
| 2 | 5XT-W0041-00-00 | CYLINDER KIT, MASTER Price: $39.99 |
| 3 | 55U-25854-00-00 | DIAPHRAGM, RESERVOIR Price: $30.99 |
| 4 | 3GM-25852-22-00 | CAP, RESERVOIR Price: $69.99 |
| 5 | 98707-04012-00 | SCREW, FLAT HEAD This part replaces 98706-04012-00. Price: $1.85 |
| 6 | 56A-25867-00-00 | BRACKET, MASTER CYLINDER Price: $31.99 |
| 7 | 97017-06025-00 | BOLT This part replaces 97007-06025-00. Price: $4.55 |
| 8 | 92907-06600-00 | WASHER, PLATE Price: $1.00 |
| 9 | 3C5-25872-00-00 | HOSE, BRAKE 1 Price: $77.99 |
| 10 | 90401-10172-00 | BOLT, UNION Price: $6.49 |
