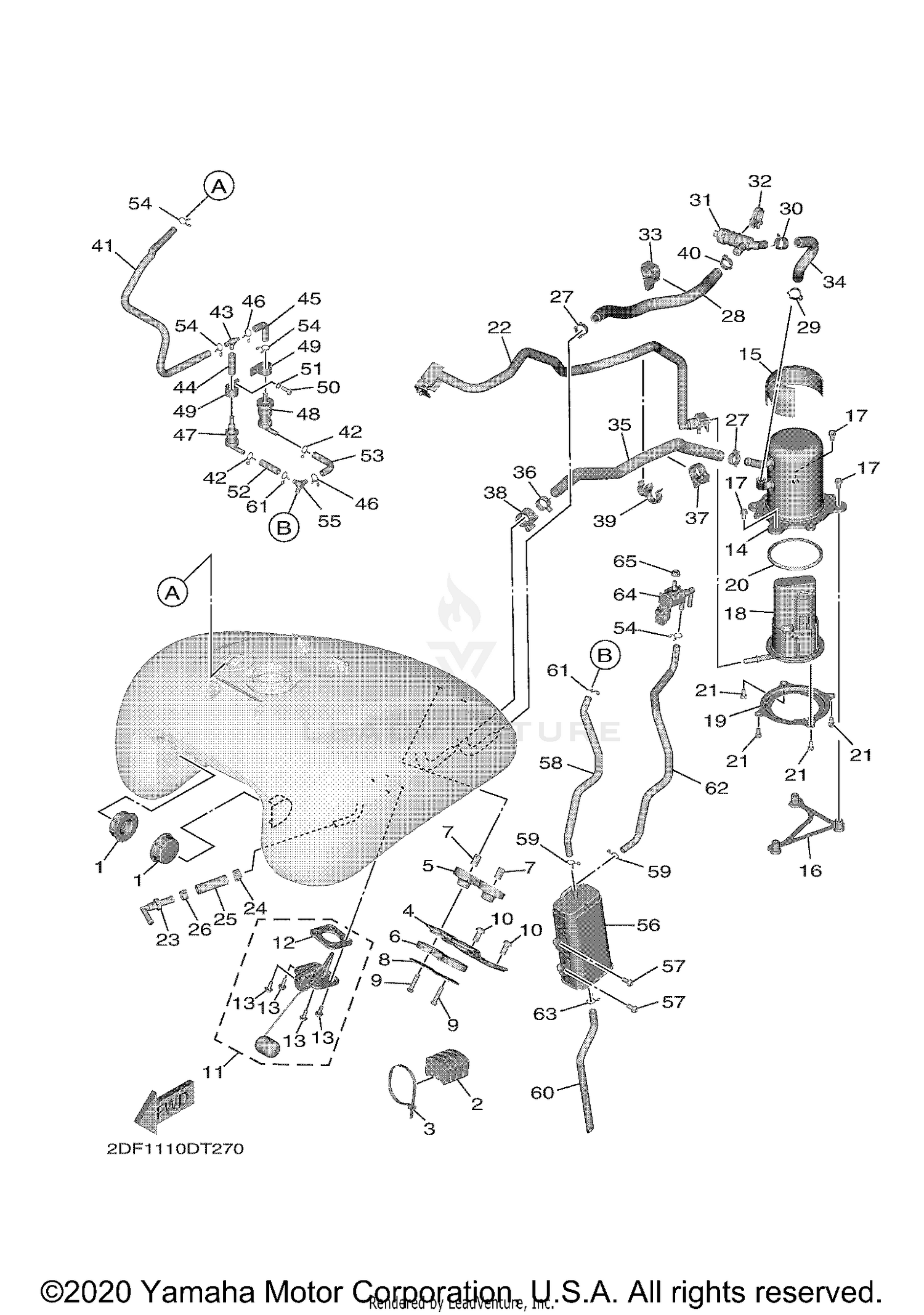

| Ref | Part Number | Description |
|---|
| 1 |
4H7-24181-00-00 |
DAMPER, LOCATING 1 This part replaces 2YK-24181-10-00. Price: $7.49 |
| 2 |
2DF-24183-00-00 |
DAMPER, LOCATING 3 Price: $14.99 |
| 3 |
90464-80002-00 |
CLAMP Price: $6.49 |
| 4 |
2DF-2413Y-00-00 |
BRACKET, TANK FITTING Price: $17.49 |
| 5 |
2DF-24181-00-00 |
DAMPER, LOCATING 1 Price: $12.49 |
| 6 |
2DF-24182-00-00 |
DAMPER, LOCATING 2 Price: $9.49 |
| 7 |
90387-06553-00 |
COLLAR Price: $10.49 |
| 8 |
2DF-24186-00-00 |
WASHER, SPECIAL Price: $4.40 |
| 9 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 10 |
92012-08016-00 |
BOLT, BUTTON HEAD Price: $10.49 |
| 11 |
2DF-85701-01-00 |
SENDER ASSY Price: $114.99 |
| 12 |
5G3-85753-00-00 |
GASKET, SENDER UNIT Price: $18.99 |
| 13 |
90119-05071-00 |
BOLT, WITH WASHER Price: $9.49 |
| 14 |
2DF-244A0-00-00 |
PUMP CASE COMP. Price: $299.99 |
| 15 |
2DF-24185-01-00 |
DAMPER, LOCATING 5 Price: $3.95 |
| 16 |
2DF-2412F-00-00 |
BRACKET, SEAT Price: $28.99 |
| 17 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 18 |
2DF-13907-00-00 |
FUEL PUMP COMP. Price: $319.99 |
| 19 |
2DF-24491-00-00 |
BRACKET, FUEL PUMP Price: $17.49 |
| 20 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 21 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 22 |
2DF-13971-01-00 |
PIPE, FUEL 1 Price: $193.99 |
| 23 |
2DF-24461-00-00 |
PIPE, JOINT Price: $17.49 |
| 24 |
90467-150A6-00 |
CLIP Price: $6.49 |
| 25 |
2DF-24314-01-00 |
PIPE 4 Price: $7.49 |
| 26 |
90467-150A6-00 |
CLIP Price: $6.49 |
| 27 |
5PX-2411M-00-00 |
CLIP Price: $11.99 |
| 28 |
2DF-24311-00-00 |
PIPE, FUEL 1 Price: $31.99 |
| 29 |
5PX-2411M-00-00 |
CLIP Price: $11.99 |
| 30 |
90467-160A2-00 |
CLIP Price: $6.49 |
| 31 |
1D7-24305-00-00 |
FUEL PIPE JOINT COMP. 2 Price: $168.99 |
| 32 |
90464-20010-00 |
CLAMP Price: $3.50 |
| 33 |
90464-20237-00 |
CLAMP Price: $2.60 |
| 34 |
2DF-24312-00-00 |
PIPE 2 Price: $18.49 |
| 35 |
2DF-24313-00-00 |
PIPE 3 Price: $49.99 |
| 36 |
90467-160A2-00 |
CLIP Price: $6.49 |
| 37 |
90464-20016-00 |
CLAMP Price: $6.49 |
| 38 |
5JW-14723-00-00 |
COVER 1 Price: $18.99 |
| 39 |
90464-19001-00 |
CLAMP Price: $2.85 |
| 40 |
5PX-2411M-00-00 |
CLIP Price: $11.99 |
| 41 |
2DF-24316-00-00 |
PIPE 6 Price: $32.99 |
| 42 |
90467-090A2-00 |
CLIP This part replaces 90467-09103-00. Price: $4.75 |
| 43 |
90413-07007-00 |
WAY 3 Price: $10.49 |
| 44 |
5UX-24311-00-00 |
PIPE, FUEL 1 Price: $4.20 |
| 45 |
5YU-24314-00-00 |
PIPE 4 Price: $14.49 |
| 46 |
90467-090A2-00 |
CLIP This part replaces 90467-09103-00. Price: $4.75 |
| 47 |
3UH-24180-00-00 |
ROLL OVER VALVE ASSY Price: $39.99 |
| 48 |
5RB-24180-00-00 |
ROLL OVER VALVE ASSY Price: $129.99 |
| 49 |
90464-15014-00 |
CLAMP Price: $3.65 |
| 50 |
92012-05014-00 |
BOLT, BUTTON HEAD Price: $9.49 |
| 51 |
92907-05600-00 |
WASHER, PLATE Price: $1.00 |
| 52 |
5UX-24311-00-00 |
PIPE, FUEL 1 Price: $4.20 |
| 53 |
2DF-24322-00-00 |
PIPE 11 Price: $6.49 |
| 54 |
90467-090A2-00 |
CLIP This part replaces 90467-09103-00. Price: $4.75 |
| 55 |
90413-06002-00 |
WAY 3 Price: $22.99 |
| 56 |
2DF-24170-00-00 |
CANISTER ASSY Price: $192.99 |
| 57 |
92017-06012-00 |
BOLT, BUTTON HEAD Price: $2.65 |
| 58 |
2DF-24323-00-00 |
PIPE 12 Price: $22.99 |
| 59 |
90467-090A2-00 |
CLIP This part replaces 90467-09103-00. Price: $4.75 |
| 60 |
2DF-24324-00-00 |
PIPE 13 Price: $6.99 |
| 61 |
90467-090A2-00 |
CLIP This part replaces 90467-09103-00. Price: $4.75 |
| 62 |
2DF-24325-00-00 |
PIPE 14 Price: $32.99 |
| 63 |
90467-11106-00 |
CLIP Price: $4.05 |
| 64 |
BG4-86120-00-00 |
SOLENOID VALVE ASSY Price: $52.99 |
