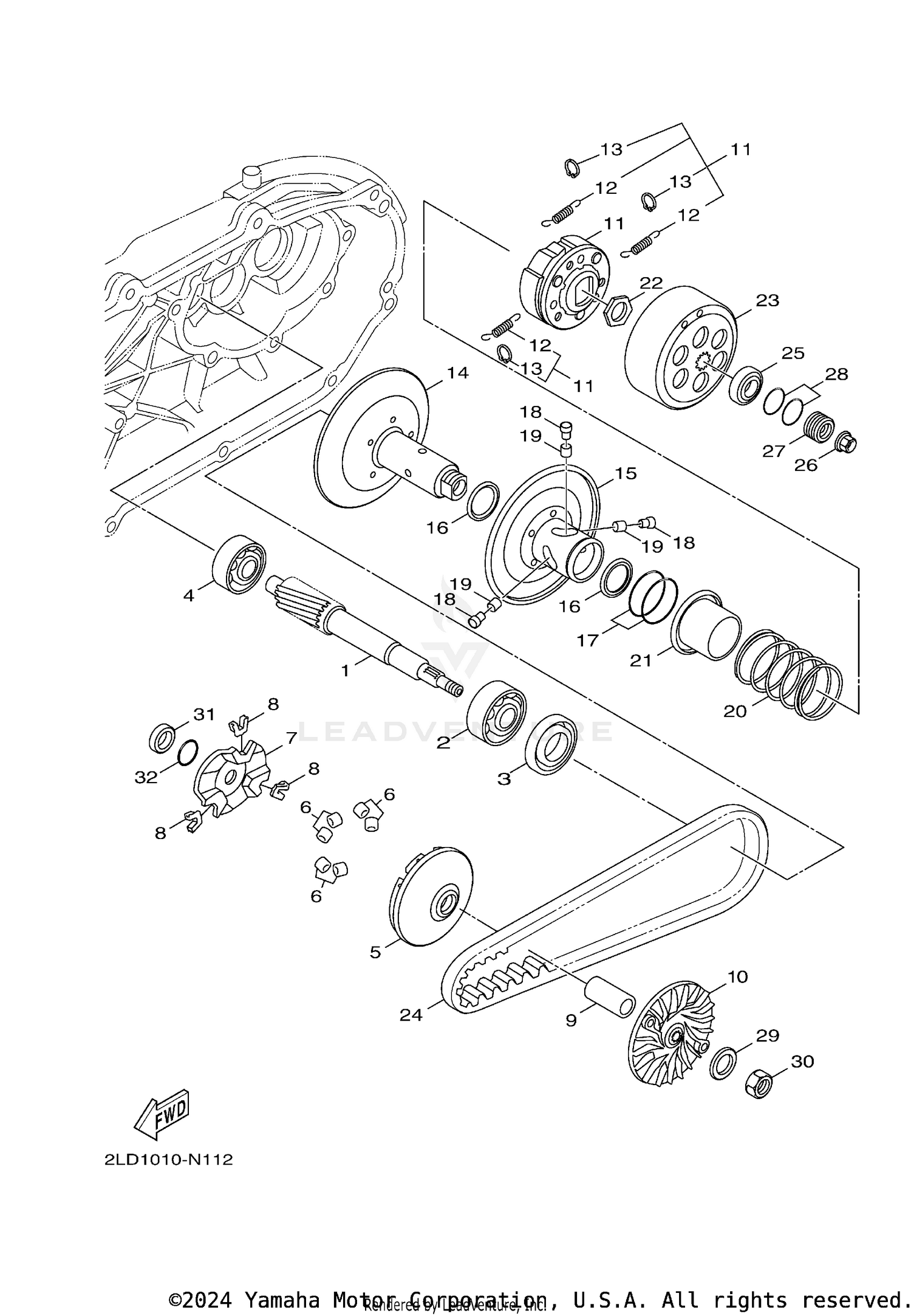

CLUTCH
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1DK-E6111-00-00 | GEAR, PRIMARY DRIVE Price: $70.99 |
| 2 | 93306-272X6-00 | BEARING Price: $18.49 |
| 3 | 93102-22820-00 | OIL SEAL Price: $4.05 |
| 4 | 93306-30212-00 | BEARING This part replaces 93306-302Y1-00. Price: $44.99 |
| 5 | 1DK-E7620-00-00 | PRIMARY SLIDING SHEAVE COMP. Price: $33.99 |
| 6 | 1DK-E7632-01-00 | WEIGHT This part replaces 1DK-E7632-00-00. Price: $4.20 |
| 7 | 1DK-E7623-00-00 | CAM Price: $9.49 |
| 8 | 1DK-E7653-01-00 | SLIDER This part replaces 1DK-E7653-00-00. Price: $3.10 |
| 9 | 1DK-E7674-10-00 | COLLAR, GUIDE Price: $18.49 |
| 10 | 1DK-E7611-00-00 | SHEAVE, PRIMARY FIXED Price: $23.99 |
| 11 | 1DK-E6620-00-00 | CLUTCH CARRIER ASSY Price: $100.99 |
| 12 | 1DK-E6626-00-00 | SPRING, CLUTCH WEIGHT 1 Price: $2.40 |
| 13 | 1DK-E6819-00-00 | CIRCLIP, CLUTCH Price: $0.20 |
| 14 | 1DK-WE766-00-00 | SECONDARY FIXED SHEAVE COMP. Price: $96.99 |
| 15 | 1DK-E7670-00-00 | SECONDARY SLIDING SHEAVE Price: $51.99 |
| 16 | 1DK-E7465-00-00 | SEAL Price: $10.49 |
| 17 | 1DK-E7465-10-00 | SEAL Price: $2.35 |
| 18 | 1DK-E7664-00-00 | PIN, GUIDE Price: $2.35 |
| 19 | 1DK-E7674-00-00 | COLLAR, GUIDE Price: $2.35 |
| 20 | 1DK-E7683-00-00 | SPRING, SECONDARY Price: $12.49 |
| 21 | 1DK-E7684-00-00 | SEAT, SECONDARY SPRING Price: $8.49 |
| 22 | 1DK-E7668-00-00 | NUT Price: $2.35 |
| 23 | 1DK-E6611-00-00 | CLUTCH HOUSING COMP. Price: $44.99 |
| 24 | 1DK-E7641-00-00 | V-BELT Price: $60.99 |
| 25 | 93306-082Y4-00 | BEARING Price: $23.99 |
| 26 | 90179-10803-00 | NUT Price: $2.25 |
| 27 | 52S-E7649-00-00 | SPACER Price: $13.49 |
| 28 | 93210-28802-00 | O-RING Price: $1.90 |
| 29 | 90201-12837-00 | WASHER PLATE Price: $3.45 |
| 30 | 90179-12019-00 | NUT Price: $5.49 |
| 31 | 1DK-E6375-00-00 | COLLAR Price: $11.49 |
