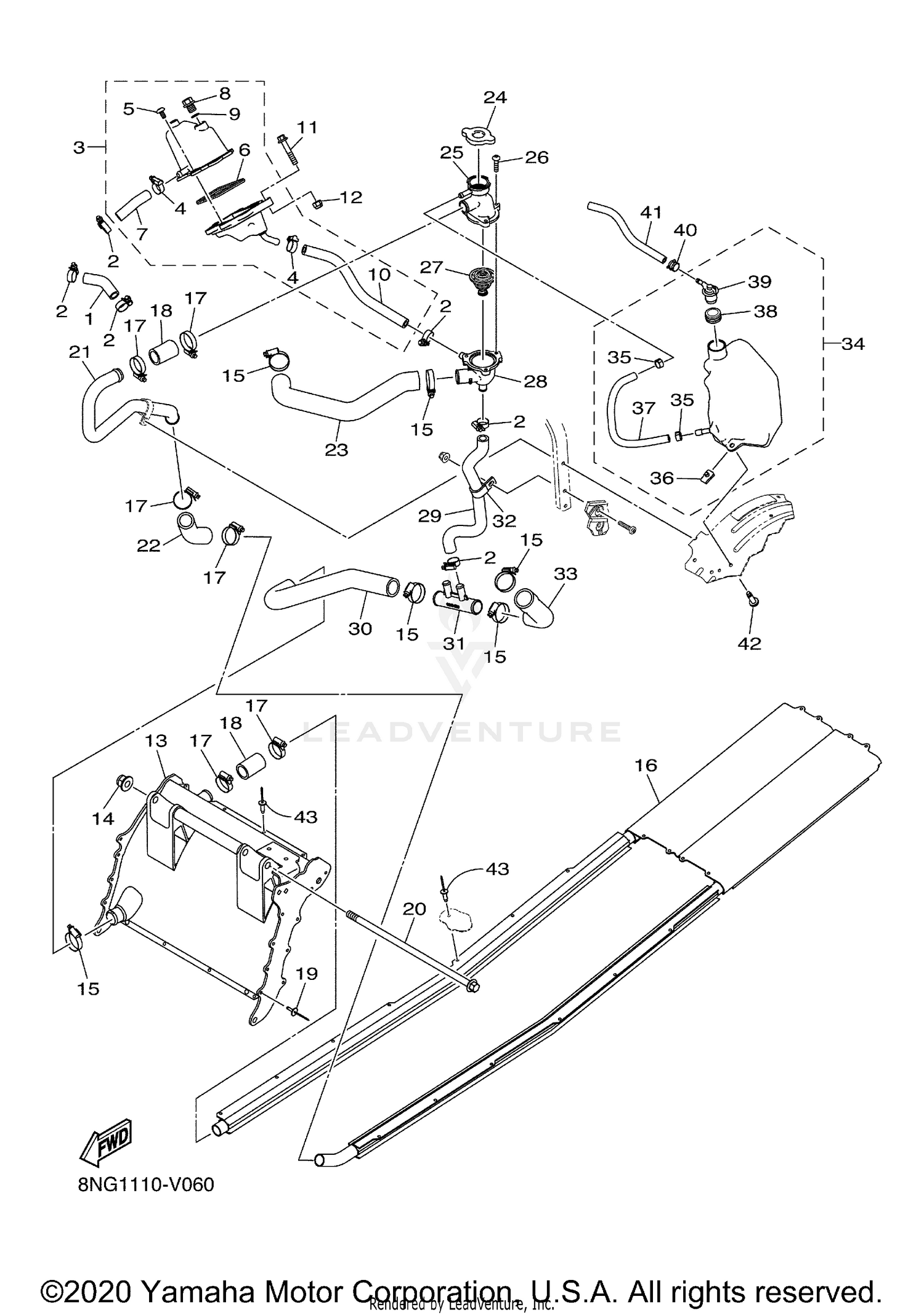

| Ref | Part Number | Description |
|---|
| 1 |
8JP-E243E-00-00 |
HOSE 2 Price: $5.49 |
| 2 |
8JP-F1823-00-00 |
CLAMP, HOSE Price: $4.20 |
| 3 |
8KC-E2490-00-00 |
TANK ASSY Price: $191.99 |
| 4 |
8JP-F1823-00-00 |
CLAMP, HOSE Price: $4.20 |
| 5 |
8KC-RA295-00-00 |
SCREW, 6 Price: $0.90 |
| 6 |
8KC-E2877-00-00 |
SEAL Price: $8.49 |
| 7 |
8KC-E243E-00-00 |
HOSE 2 Price: $10.49 |
| 8 |
8JP-F15A1-00-00 |
PLUG, DRAIN Price: $20.99 |
| 9 |
8JP-RAF05-00-00 |
O-RING, 3 Price: $0.79 |
| 10 |
8KC-E243F-00-00 |
HOSE, 3 Price: $22.99 |
| 11 |
8KN-RA183-00-00 |
BOLT, FLANGE M6X1.0X30 Price: $0.95 |
| 12 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 13 |
8MG-E2440-00-00 |
HEAT EXCHANGER ASSY Price: $626.99 |
| 14 |
8JP-RA362-00-00 |
NUT, FLANGE LOCKING M12X1.25 Price: $1.90 |
| 15 |
8JP-RAB29-00-00 |
CLAMP, 26 Price: $4.15 |
| 16 |
8MH-E240E-00-00 |
HEAT EXCHANGER Price: $626.99 |
| 17 |
8JP-RAB24-00-00 |
CLAMP, 22 Price: $4.80 |
| 18 |
8KC-E244G-00-00 |
HOSE, 4 Price: $3.95 |
| 20 |
8KC-F1481-00-00 |
BOLT, ENGINE MOUNTING 1 Price: $29.99 |
| 21 |
8KC-E2481-00-00 |
PIPE 1 Price: $48.99 |
| 22 |
8MG-E244H-00-00 |
HOSE 5 Price: $19.49 |
| 23 |
8KC-E243A-00-00 |
HOSE 1 Price: $37.99 |
| 24 |
8JP-E2462-00-00 |
CAP, RADIATOR Price: $45.99 |
| 25 |
8KC-E2521-00-00 |
NECK, FILLER Price: $17.49 |
| 26 |
8JP-RA244-00-00 |
SCREW, M5X0.8X20 Price: $0.60 |
| 27 |
8JP-E2410-00-00 |
THERMOSTAT ASSY Price: $89.99 |
| 28 |
8KC-E2417-00-00 |
HOUSING, THERMOSTAT Price: $103.99 |
| 29 |
8KC-E2552-00-00 |
HOSE 8 Price: $35.99 |
| 30 |
8KC-E244J-00-00 |
HOSE 6 Price: $35.99 |
| 31 |
8KC-E2446-00-00 |
JOINT Price: $12.99 |
| 32 |
8KC-RAB05-00-00 |
CLAMP, 3 Price: $8.49 |
| 33 |
8KC-E2551-00-00 |
HOSE 7 Price: $28.99 |
| 34 |
8KC-F1870-00-00 |
RECOVERY TANK ASSY Price: $114.99 |
| 35 |
8JM-RAC02-00-00 |
CLIP, 3 Price: $4.95 |
| 36 |
8JP-RA354-00-00 |
NUT, CLIP M6 Price: $1.30 |
| 38 |
8KC-E2437-00-00 |
STOPPER Price: $9.49 |
| 39 |
8JP-F4362-00-00 |
VALVE, CHECK 1 Price: $49.99 |
| 40 |
8KC-RAB02-00-00 |
CLAMP, 3 Price: $1.60 |
| 42 |
8LN-K7537-00-00 |
BOLT 1 Price: $2.65 |
