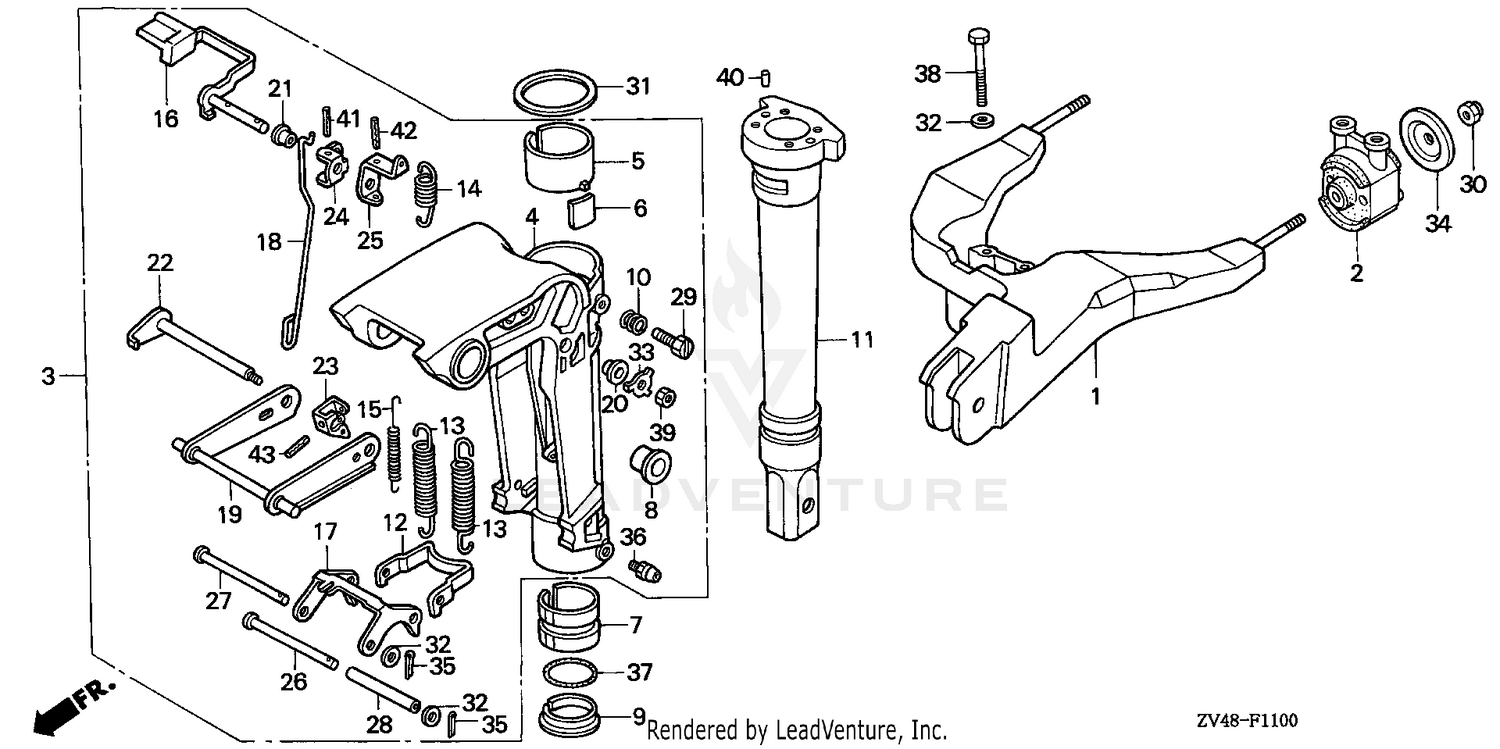

| Ref | Part Number | Description |
|---|
| 1 |
50100-ZV4-010ZB |
SEE PART DETAILS - PRI; FRAME, MOUNTING *NH282MU* (OYSTER SILVER METALLIC-U) Price: $253.18 |
| 2 |
50151-ZV4-000ZB |
MOUNT, RUBBER (UPPER) *NH282MU* (OYSTER SILVER METALLIC-U) Price: $63.06 |
| 5 |
50211-ZV4-000 |
LINER, SWIVEL CASE Price: $11.04 |
| 6 |
50212-ZV4-000 |
BLOCK, FRICTION Price: $9.89 |
| 7 |
50213-ZV4-000 |
BUSH, SWIVEL SHAFT Price: Call Us |
| 8 |
50214-ZV4-003 |
BUSH, SWIVEL CASE Price: $8.64 |
| 9 |
50215-ZV4-000 |
COLLAR, SWIVEL CASE Price: $4.62 |
| 10 |
50233-881-000 |
SPRING, FRICTION ADJUSTING Price: $6.34 |
| 11 |
50417-ZV4-000ZB |
SHAFT, SWIVEL *NH282MU* (OYSTER SILVER METALLIC-U) Price: $183.76 |
| 12 |
50512-ZV4-000 |
HOOK, REVERSE LOCK Price: $18.18 |
| 13 |
50514-ZV4-000 |
SPRING, REVERSE LOCK Price: $15.26 |
| 14 |
50515-ZV4-300 |
SPRING, TILT LEVER Price: $4.64 |
| 15 |
50516-ZV4-300 |
SPRING, TILT LINK Price: $6.38 |
| 16 |
50517-ZV4-020 |
SEE PART DETAILS - PRI; LEVER, TILT This part replaces 50517-ZV4-010. Price: $20.26 |
| 17 |
50518-ZV4-000 |
ARM, REVERSE LOCK Price: $20.06 |
| 18 |
50519-ZV4-300 |
ROD, RELEASE SWIVEL CASE Price: $6.22 |
| 19 |
50520-ZV4-010 |
SEE PART DETAILS - PRI; ARM, TILT Price: $80.12 |
| 20 |
50521-ZV1-000 |
BUSH, TILT LEVER Price: $8.06 |
| 21 |
50522-ZV4-000 |
BUSH, TILT LEVER Price: $6.86 |
| 22 |
50525-ZV4-010 |
SEE PART DETAILS - PRI; SHAFT, TILT This part replaces 50525-ZV4-000. Price: $30.34 |
| 23 |
50526-ZV4-000 |
BRACKET, TILT SHAFT Price: $11.80 |
| 24 |
50527-ZV4-010 |
BRACKET, RELEASE ROD Price: $6.82 |
| 25 |
50528-ZV4-010 |
BRACKET, TILT LEVER Price: $6.82 |
| 26 |
50531-ZV4-000 |
SHAFT, REVERSE LOCK (A) Price: $6.30 |
| 27 |
50532-ZV4-000 |
SHAFT, REVERSE LOCK (B) Price: $9.28 |
| 28 |
50533-ZV4-000 |
COLLAR, REVERSE LOCK Price: $10.72 |
| 29 |
90109-ZV4-000 |
BOLT, SPECIAL (8X20) Price: $5.00 |
| 30 |
90305-ZV4-000 |
NUT, SELF-LOCK (8MM) Price: $6.22 |
| 31 |
90504-ZV4-000 |
WASHER, THRUST (51MM) Price: $6.16 |
| 32 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 33 |
90505-ZV4-000 |
WASHER, LOCK Price: $4.08 |
| 34 |
90513-ZV4-000 |
WASHER, PLAIN (8MM) Price: $8.80 |
| 35 |
90759-ZV1-000 |
SEE PART DETAILS - PRI; PIN, SPLIT (2.0) Price: $1.94 |
| 36 |
90901-ZV4-000 |
SEE PART DETAILS - PRI; NIPPLE, GREASE Price: $2.70 |
| 37 |
91356-MG9-003 |
O-RING (39.5X2.4) (ARAI) Price: $4.26 |
| 38 |
92101-06060-4J |
BOLT, HEX. (6X60) Price: $3.35 |
| 39 |
94002-06490-0S |
SEE PART DETAILS - PRI; NUT, HEX. (6MM) Price: $3.38 |
| 40 |
94303-06100 |
PIN, DOWEL (6X10) Price: $2.82 |
| 41 |
90751-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X22) This part replaces 90751-ZV4-C20. Price: $3.70 |
| 42 |
90752-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X25) This part replaces 90752-ZV4-C20. Price: $3.70 |
| 43 |
90752-ZV4-C21 |
SEE PART DETAILS - PRI; PIN, SPRING (3.0X25) This part replaces 90752-ZV4-C20. Price: $3.70 |
