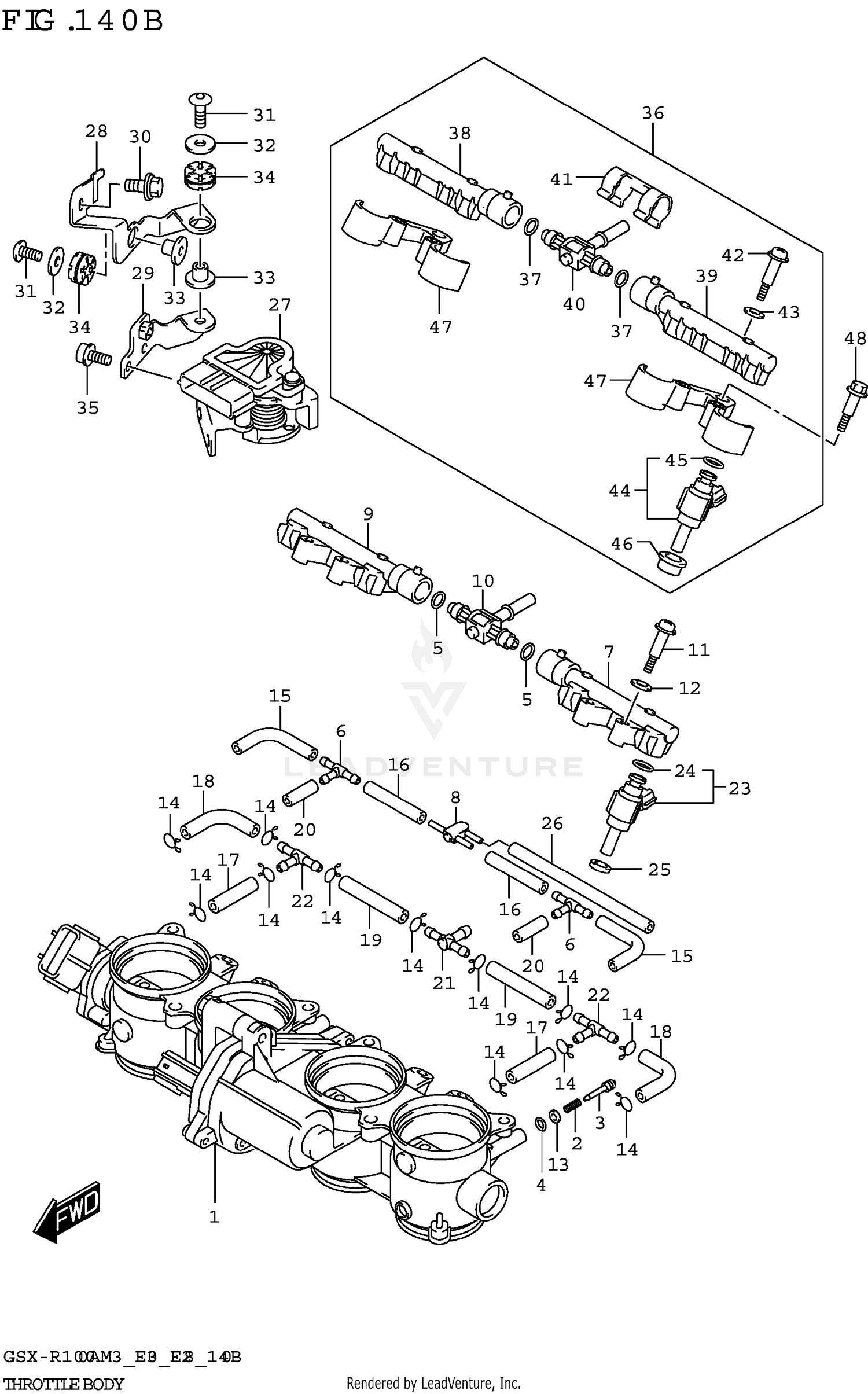

THROTTLE BODY (E33)
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13405-17K12 | BODY ASSY,THROTTLE Price: $1,509.71 |
| 2 | 13268-48700 | SPRING,THROTTLE SCREW Price: $5.36 |
| 3 | 13269-33E00 | SCREW Price: $14.10 |
| 4 | 13295-29901 | O-RING Price: $5.36 |
| 5 | 13374-32G00 | O-RING Price: $7.81 |
| 7 | 13471-17K00 | DELIVERY PIPE Price: $76.47 |
| 8 | 13471-18H00 | JOINT Price: $11.34 |
| 9 | 13472-17K00 | DELIVERY PIPE Price: $76.47 |
| 10 | 13473-17K00 | NIPPLE ASSY Price: $77.07 |
| 11 | 13601-29G00 | SCREW Price: $4.35 |
| 12 | 13602-29G01 | PACKING Price: $2.94 |
| 13 | 13606-47A00 | WASHER Price: $3.55 |
| 14 | 13671-29G00 | CLIP Price: $3.24 |
| 15 | 13681-39F01-060 | HOSE (3.2X7.4X60) Price: $4.22 |
| 16 | 13683-10F61 | HOSE (L:425) Price: $18.47 |
| 17 | 13683-04K10 | HOSE (8.5X4.5X30) Price: $11.44 |
| 18 | 13683-17K00 | HOSE Price: $52.09 |
| 19 | 13683-17K10 | HOSE Price: $16.60 |
| 20 | 13683-10F61 | HOSE (L:425) Price: $18.47 |
| 21 | 13685-29G00 | NIPPLE Price: $9.92 |
| 22 | 13685-38420 | NIPPLE Price: $16.12 |
| 23 | 15710-04K00 | INJECTOR ASSY Price: $290.55 |
| 24 | 15717-58B00 | O-RING Price: $12.30 |
| 25 | 15722-14J00 | SEAL Price: $14.43 |
| 26 | 09355-30001-600 | HOSE (3X7X600) Price: $10.57 |
| 27 | 13500-17K00 | BODY ASSY,ACCELERATOR Price: $358.03 |
| 28 | 13571-17K00 | BRACKET,ACCEL SENSOR NO.1 Price: $14.56 |
| 29 | 13572-17K00 | BRACKET,ACCEL SENSOR NO.2 Price: $10.11 |
| 30 | 09116-06197 | BOLT (6X12) Price: $3.20 |
| 31 | 09139-06208 | BOLT Price: $3.43 |
| 32 | 09160-06088 | WASHER (6.5X20X1.6) Price: $2.02 |
| 33 | 09180-06319 | SPACER (6.5X10X11.6) Price: $4.76 |
| 34 | 09320-10055 | CUSHION Price: $5.56 |
| 35 | 07120-0612B | BOLT Price: $3.76 |
| 36 | 15900-17K00 | BODY ASSY,2ND INJECTOR Price: $662.89 |
| 37 | 13374-32G00 | O-RING Price: $7.81 |
| 38 | 13471-17K00 | DELIVERY PIPE Price: $76.47 |
| 39 | 13472-17K00 | DELIVERY PIPE Price: $76.47 |
| 40 | 13473-17K00 | NIPPLE ASSY Price: $77.07 |
| 42 | 13601-29G00 | SCREW Price: $4.35 |
| 43 | 13602-29G01 | PACKING Price: $2.94 |
| 45 | 15717-58B00 | O-RING Price: $12.30 |
