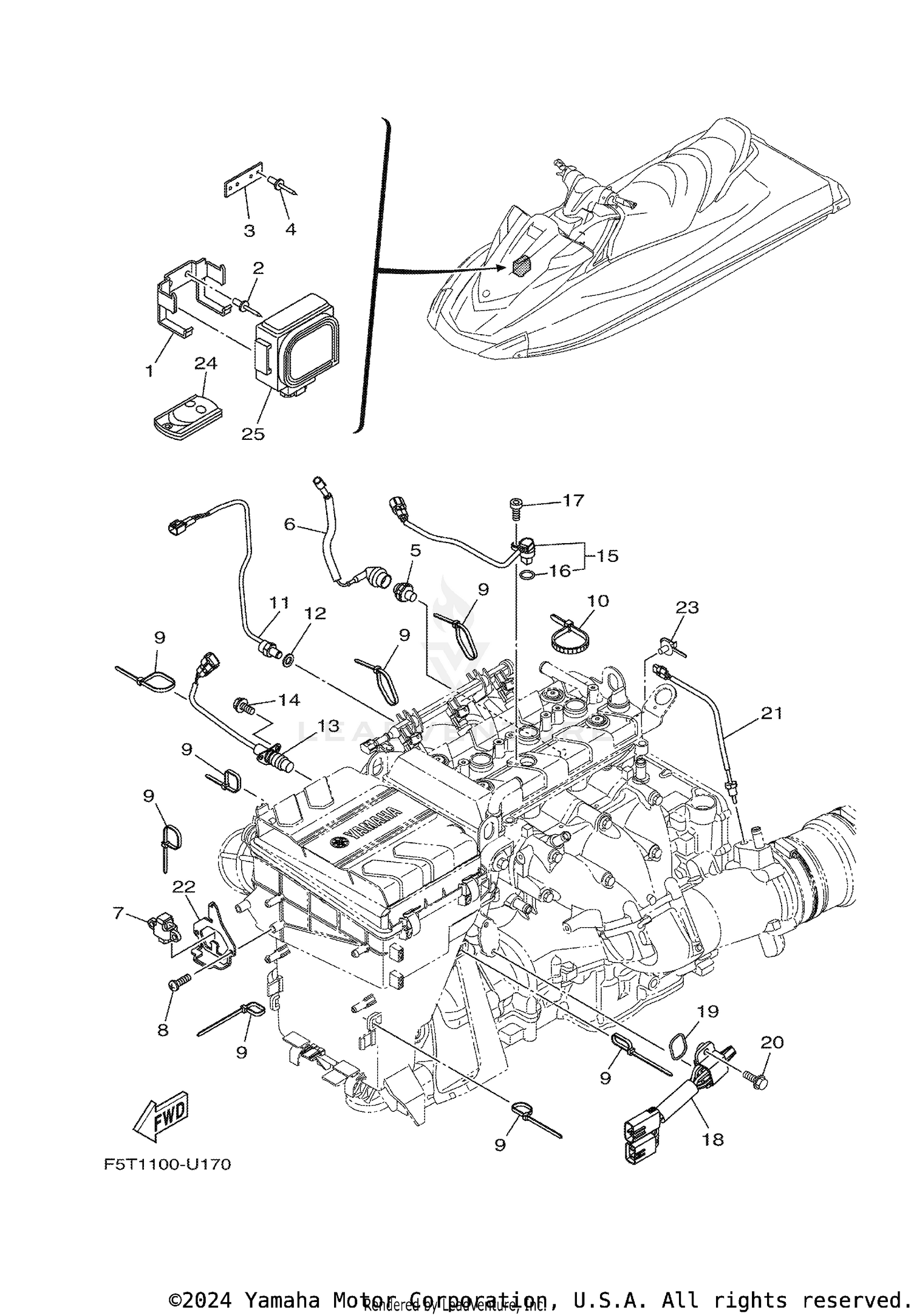

ELECTRICAL 2
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F1W-U826C-00-00 | BRACKET Price: $24.99 |
| 2 | 90267-48938-00 | RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 3 | F1W-U8376-00-00 | PLATE Price: $6.99 |
| 4 | 90267-48938-00 | RIVET, BLIND This part replaces 90267-489U1-00. Price: $5.49 |
| 5 | 68V-82504-00-00 | OIL PRESSURE SWITCH ASSY Price: $84.90 |
| 6 | 60E-81315-01-00 | LEAD WIRE ASSY This part replaces 60E-81315-00-00. Price: $41.99 |
| 7 | 6ET-82576-00-00 | SENSOR, LEAN ANGLE Price: $67.49 |
| 8 | 97780-60520-00 | SCREW, TAPPING Price: $4.49 |
| 9 | 90464-35132-00 | CLAMP Price: $10.49 |
| 10 | 90465-13M39-00 | CLAMP Price: $5.50 |
| 11 | 61A-85790-01-00 | THERMOSENSOR ASSY This part replaces 61A-85790-00-00. Price: $144.10 |
| 12 | 92990-10600-00 | WASHER, PLATE Price: $3.00 |
| 13 | 6CR-82560-00-00 | THERMO SWITCH ASSY Price: $96.99 |
| 14 | 97E95-06520-00 | BOLT, HEXAGON W/W This part replaces 97595-06520-00. Price: $3.05 |
| 15 | 2S3-85896-02-00 | SENSOR, CAM POSITI This part replaces 2S3-85896-01-00. Price: $108.99 |
| 16 | 4D9-81168-00-00 | O-RING Price: $7.49 |
| 17 | 91380-06016-00 | BOLT Price: $7.49 |
| 18 | 6CS-8273J-11-00 | EARTH PLATE COMP. This part replaces 6CS-8273J-10-00. Price: $182.99 |
| 19 | 93210-32172-00 | O-RING Price: $8.49 |
| 20 | 90119-06MA3-00 | BOLT, WITH WASHER Price: $3.20 |
| 21 | 6DE-85790-00-00 | THERMOSENSOR ASSY Price: $120.99 |
| 22 | 6EY-83618-10-00 | PLATE Price: $16.99 |
| 23 | 90464-20005-00 | CLAMP Price: $2.49 |
| 24 | 6B6-86261-00-00 | TRANSMITTER COMP Price: $357.99 |
