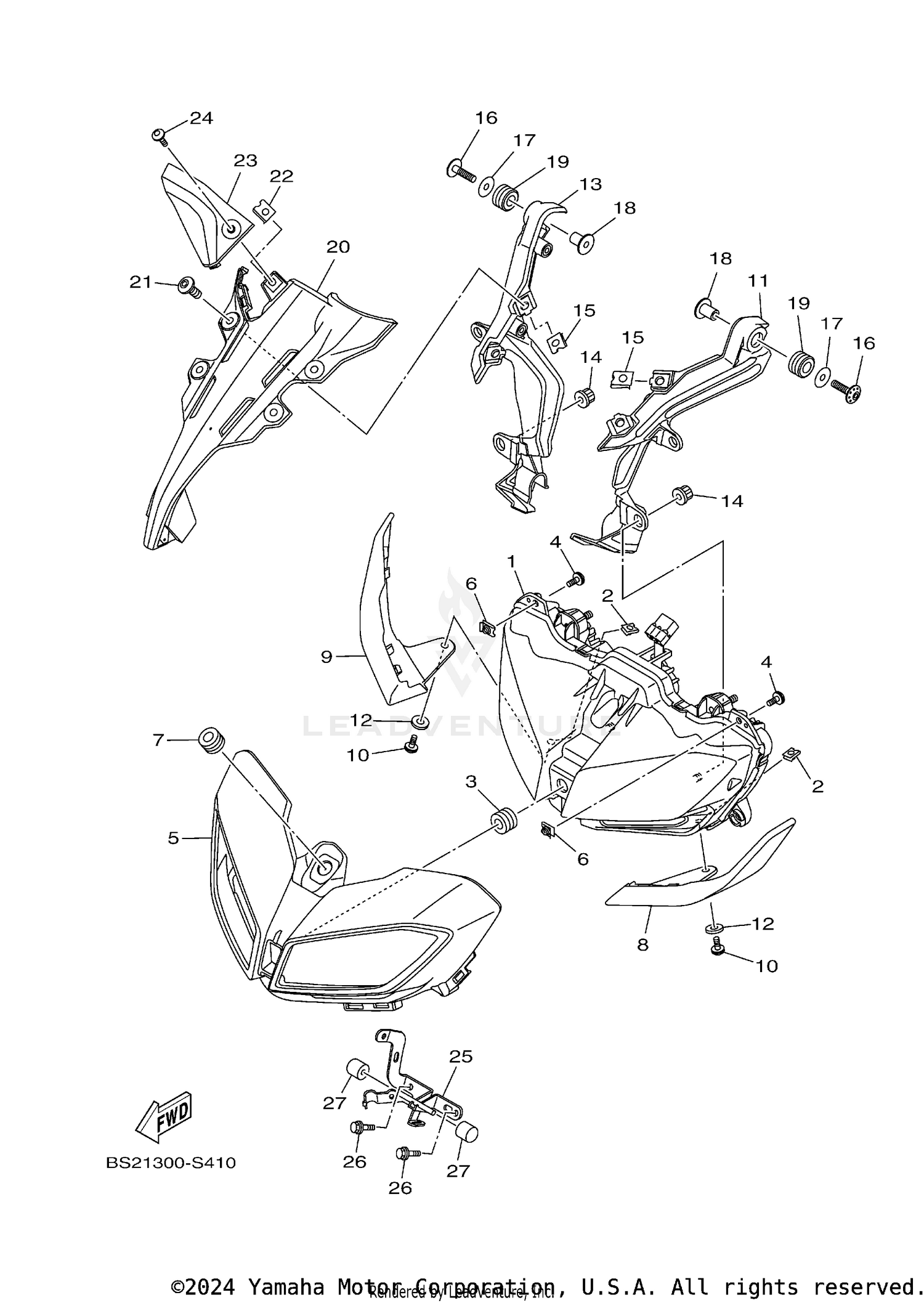

| Ref | Part Number | Description |
|---|
| 1 |
BS2-84300-01-00 |
HEADLIGHT ASSY This part replaces BS2-84300-00-00. Price: $1,177.99 |
| 2 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 3 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 4 |
90167-05080-00 |
SCREW, TAPPING Price: $2.70 |
| 5 |
BS2-2838D-00-00 |
COVER, HEADLIGHT 1 Price: $31.99 |
| 6 |
90183-05042-00 |
NUT, SPRING Price: $1.00 |
| 7 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 10 |
90167-05080-00 |
SCREW, TAPPING Price: $2.70 |
| 11 |
BS2-2831V-00-00 |
STAY, HEAD LIGHT 1 Price: $42.99 |
| 12 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 13 |
BS2-2832V-00-00 |
STAY, HEAD LIGHT 2 Price: $38.99 |
| 14 |
90179-06074-00 |
NUT Price: $11.49 |
| 15 |
90183-061A4-00 |
NUT, SPRING Price: $2.60 |
| 16 |
90109-06317-00 |
BOLT Price: $4.10 |
| 17 |
90201-06095-00 |
WASHER, PLATE This part replaces 90201-06063-00. Price: $9.49 |
| 18 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 19 |
90480-14023-00 |
GROMMET This part replaces 90480-14102-00. Price: $8.49 |
| 20 |
BS2-23391-00-00 |
PANEL, FRONT Price: $29.99 |
| 21 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 22 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 23 |
BS2-23397-00-00 |
PANEL, FRONT 2 Price: $18.49 |
| 24 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 25 |
BS2-8431R-00-00 |
STAY, SETTING Price: $39.99 |
| 26 |
95D07-06016-00 |
BOLT, FLANGE DEEP RECESS Price: $1.25 |
