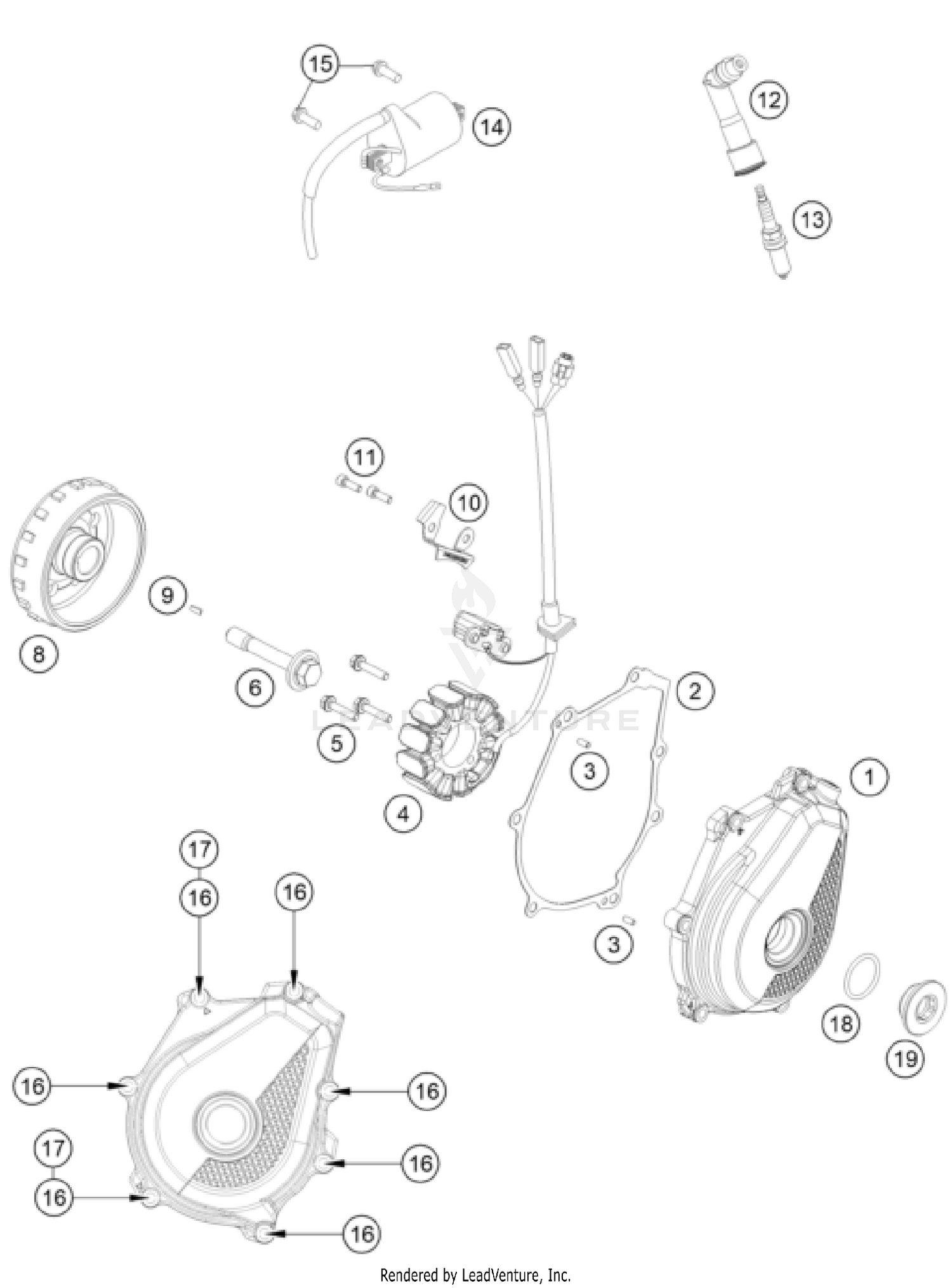

IGNITION SYSTEM
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A48030002000C1 | Ignition cover Price: $111.86 |
| 2 | A48030040000 | Ignition cover gasket Price: $9.45 |
| 3 | 0402040980 | NEEDLE ROL.DIN5402 NRB 4X9,8 Price: $3.99 |
| 4 | 79239004200 | Stator Price: $240.23 |
| 5 | 0012050253S | Bolt DIN 6912 - M5x25 SS Price: $1.99 |
| 6 | 77339010100 | FLYWHEEL SCREW Price: $6.59 |
| 8 | 79439005100 | Rotor Price: $501.59 |
| 9 | 0888030037 | WOODRUFF KEY DIN6888-3X3,7 Price: $2.99 |
| 10 | A46030002050 | Cable retainer Price: $10.66 |
| 11 | 0912050163S | Cap head screw DIN912 - M5x16 - 8.8 Price: $1.99 |
| 12 | 79539190000 | Spark plug connector This part replaces 79539090000. Price: $60.27 |
| 14 | 58439006000 | IGNITIONCOIL IG3826 KOKUSAN'96 Price: $88.76 |
| 15 | 0026060186 | COLLAR SCREW M6X18 ISA30 Price: $1.99 |
| 16 | 0025060256 | HH collar screw M6x25 TX30 Price: $3.99 |
| 17 | 0603061001 | CU-SEAL RING DIN7603-6X10X1 Price: $2.99 |
