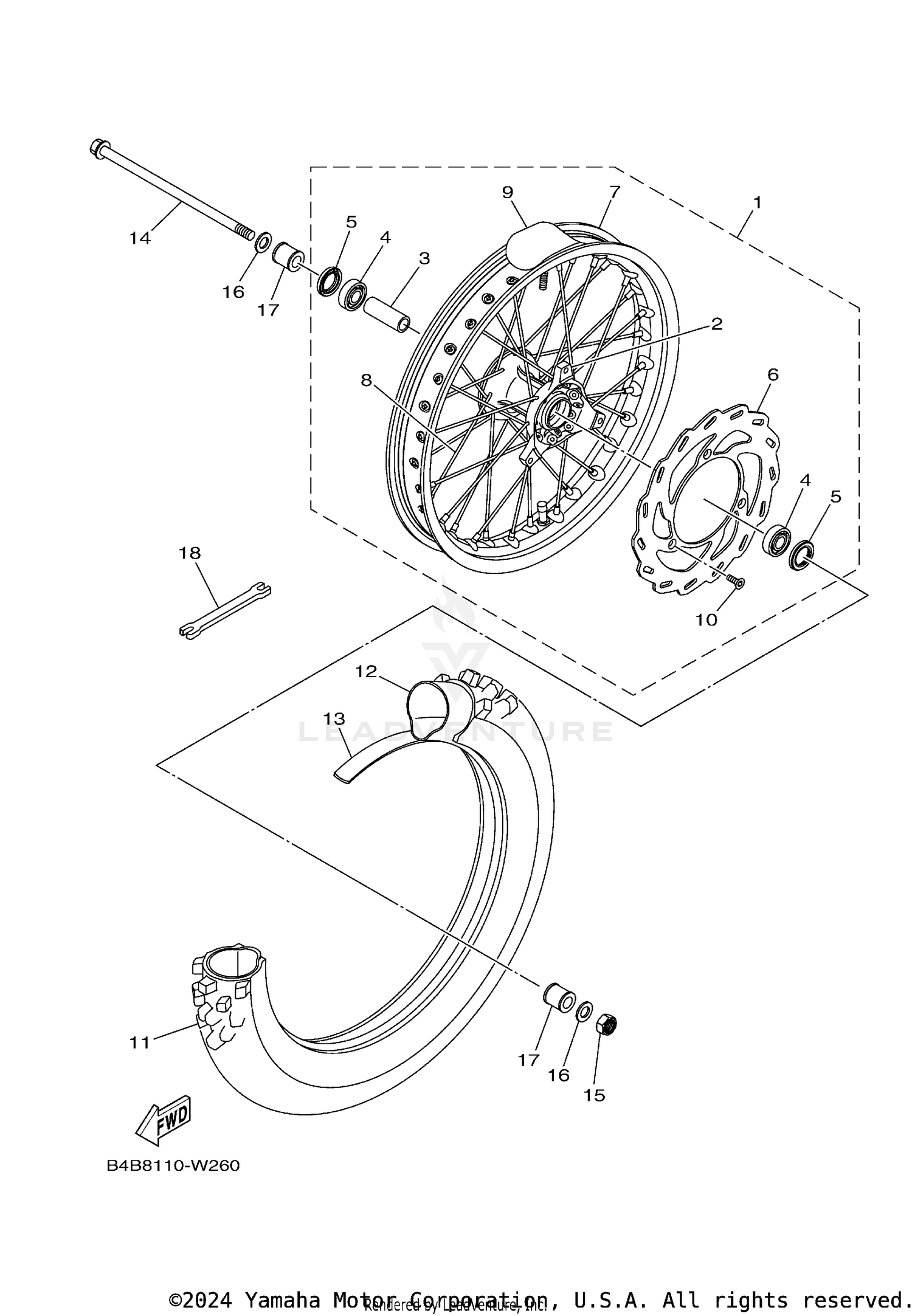

FRONT WHEEL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B4B-25102-00-00 | FRONT WHEEL ASSY BLU Price: $359.99 |
| 2 | 4ES-25111-01-00 | HUB, FRONT Price: $190.99 |
| 3 | 90387-124H0-00 | COLLAR Price: $18.49 |
| 4 | 93306-20119-00 | BEARING This part replaces 93306-20103-00. Price: $36.99 |
| 5 | 93102-22087-00 | OIL SEAL Price: $13.49 |
| 6 | B4B-2582T-00-00 | DISC, BRAKE (LEFT) Price: $134.99 |
| 7 | 94414-17013-00 | RIM (1.40-17) Price: $286.99 |
| 8 | 4ES-25104-20-00 | SPOKE SET, FRONT Price: $78.99 |
| 9 | 1T1-25194-00-00 | SPACER, BEAD Price: $68.99 |
| 10 | 90151-06080-00 | SCREW, COUNTERSUNK This part replaces 90149-06327-00. Price: $2.35 |
| 14 | 4ES-25181-00-00 | AXLE, WHEEL Price: $52.99 |
| 15 | 90185-12010-00 | NUT, SELF-LOCKING Price: $9.49 |
| 16 | 90201-12055-00 | WASHER, PLATE Price: $9.49 |
| 17 | BR8-25183-00-00 | COLLAR, WHEEL Price: $17.49 |
