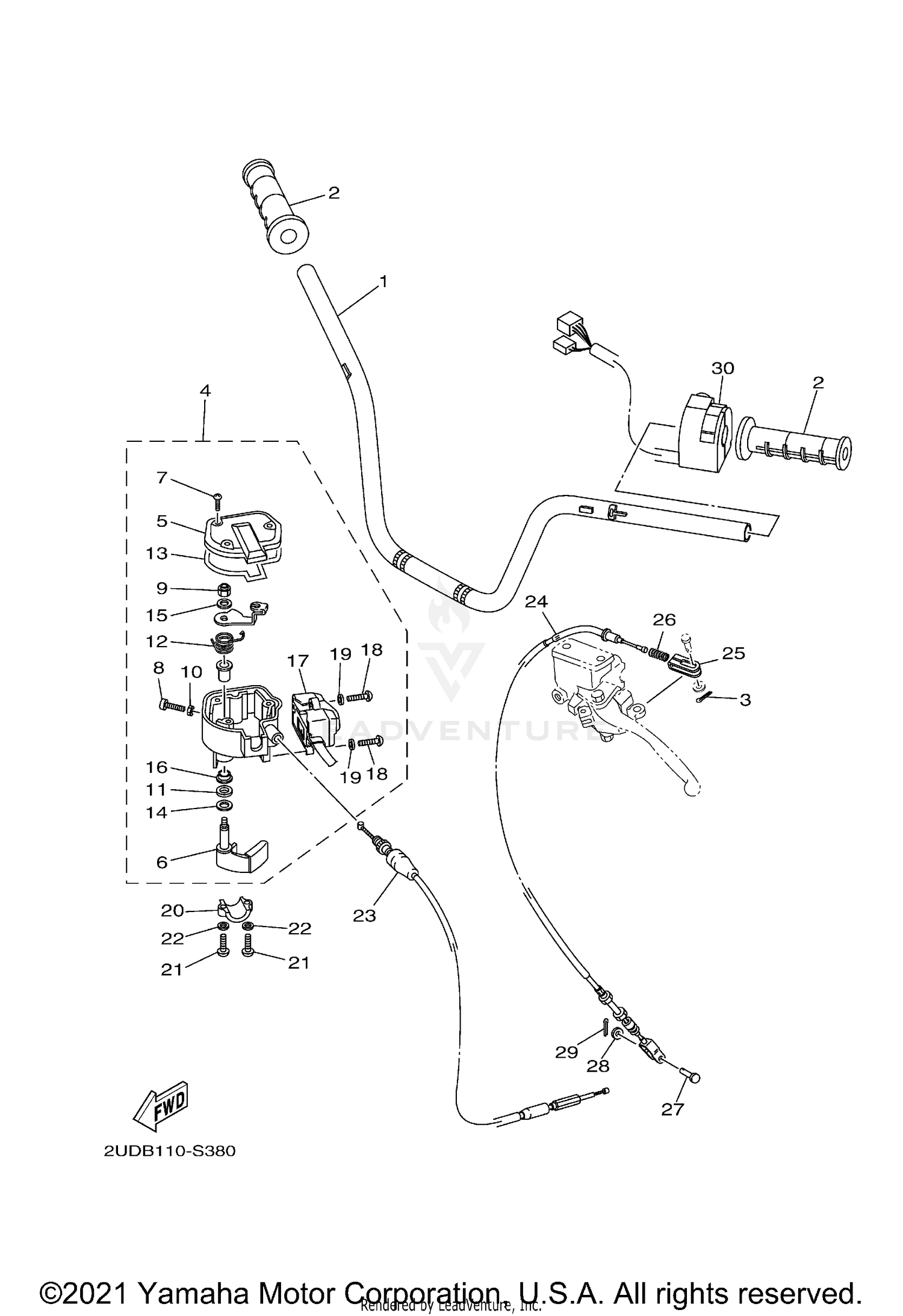

| Ref | Part Number | Description |
|---|
| 1 |
1HP-F6111-01-00 |
HANDLEBAR Price: $70.99 |
| 2 |
5FU-F6241-10-00 |
GRIP Price: $18.99 |
| 3 |
91490-16020-00 |
PIN, COTTER This part replaces 91401-16012-00. Price: $6.70 |
| 4 |
1HP-26250-04-00 |
THROTTLE LEVER ASSY This part replaces 1HP-26250-02-00. Price: $150.99 |
| 5 |
28P-2628F-00-00 |
CAP, GEAR Price: $38.99 |
| 6 |
28P-2625G-01-00 |
LEVER, THROTTLE This part replaces 28P-2625G-00-00. Price: $60.99 |
| 7 |
90149-04278-00 |
SCREW Price: $0.95 |
| 8 |
98517-05020-00 |
SCREW, PAN HEAD This part replaces 98507-05020-00. Price: $1.75 |
| 9 |
95617-05100-00 |
NUT, U This part replaces 95602-05100-00. Price: $10.49 |
| 10 |
95317-05700-00 |
NUT This part replaces 95307-05700-00. Price: $9.49 |
| 11 |
93104-09025-00 |
OIL SEAL Price: $8.49 |
| 12 |
1NV-26304-00-00 |
SPRING Price: $12.99 |
| 13 |
28P-2628G-00-00 |
GASKET Price: $8.49 |
| 14 |
1NV-26129-00-00 |
WASHER Price: $7.49 |
| 15 |
53L-83909-00-00 |
WASHER, SPECIAL This part replaces 1NV-26398-00-00. Price: $4.55 |
| 16 |
1NV-2625K-00-00 |
COLLAR Price: $7.49 |
| 17 |
1HP-83976-06-00 |
SWITCH, HANDLE 1 This part replaces 1HP-83976-02-00. Price: $110.99 |
| 18 |
98580-04014-00 |
SCREW, PAN HEAD This part replaces 98502-04016-00. Price: $3.30 |
| 19 |
92990-04600-00 |
WASHER, PLATE This part replaces 92902-04600-00. Price: $0.99 |
| 20 |
1S3-82913-00-00 |
HOLDER, LEVER LOWER 1 Price: $15.49 |
| 21 |
98517-05020-00 |
SCREW, PAN HEAD This part replaces 98502-05020-00. Price: $1.75 |
| 22 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 23 |
B4F-26311-00-00 |
CABLE, THROTTLE 1 Price: $26.99 |
| 24 |
3B4-26341-00-00 |
WIRE, BRAKE 1 Price: $41.99 |
| 25 |
3B4-26347-00-00 |
JOINT, CABLE Price: $8.49 |
| 26 |
90501-08665-00 |
SPRING, COMPRESSION Price: $2.55 |
| 27 |
90240-06076-00 |
PIN, CLEVIS Price: $9.49 |
| 28 |
92907-06200-00 |
WASHER Price: $9.49 |
| 29 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
