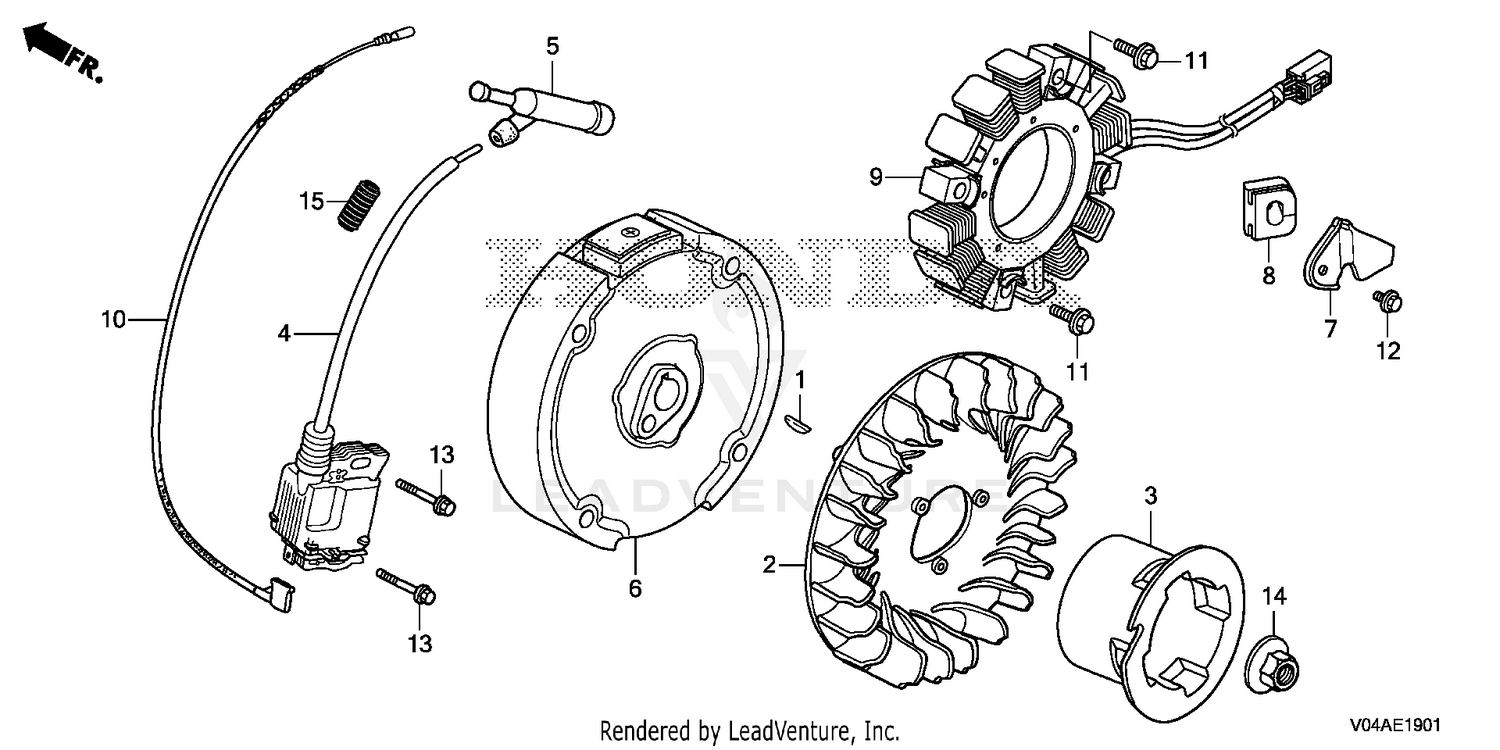

| Ref | Part Number | Description |
|---|
| 1 |
13331-Z8B-900 |
KEY, SPECIAL WOODRUFF (25X18) Price: $6.08 |
| 2 |
19511-ZE1-000 |
FAN, COOLING (Honda Code 1428051). Price: $28.98 |
| 3 |
28451-ZE1-711 |
PULLEY, STARTER Price: $35.80 |
| 4 |
30500-Z0T-003 |
SEE PART DETAILS - PRI; COIL ASSY., IGNITION (TEC) Price: $13.15 |
| 5 |
30700-Z0T-821 |
SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (TEC) Price: $6.16 |
| 6 |
31110-Z0V-H21 |
FLYWHEEL Price: $354.84 |
| 7 |
31511-ZE1-000 |
CLAMP, WIRE (Honda Code 1497197). Price: $4.50 |
| 8 |
31512-Z0V-000 |
GROMMET, WIRE Price: $92.64 |
| 9 |
31630-Z0V-H51 |
COIL ASSY., LAMP Price: $78.68 |
| 10 |
32195-Z0T-003 |
WIRE, STOP SWITCH (370MM) Price: $2.50 |
| 11 |
90015-883-000 |
BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314. Price: $3.62 |
| 12 |
90019-883-000 |
BOLT, FLANGE (5X10) (Honda Code 0636878). Price: $3.12 |
| 13 |
90121-952-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819. Price: $2.82 |
