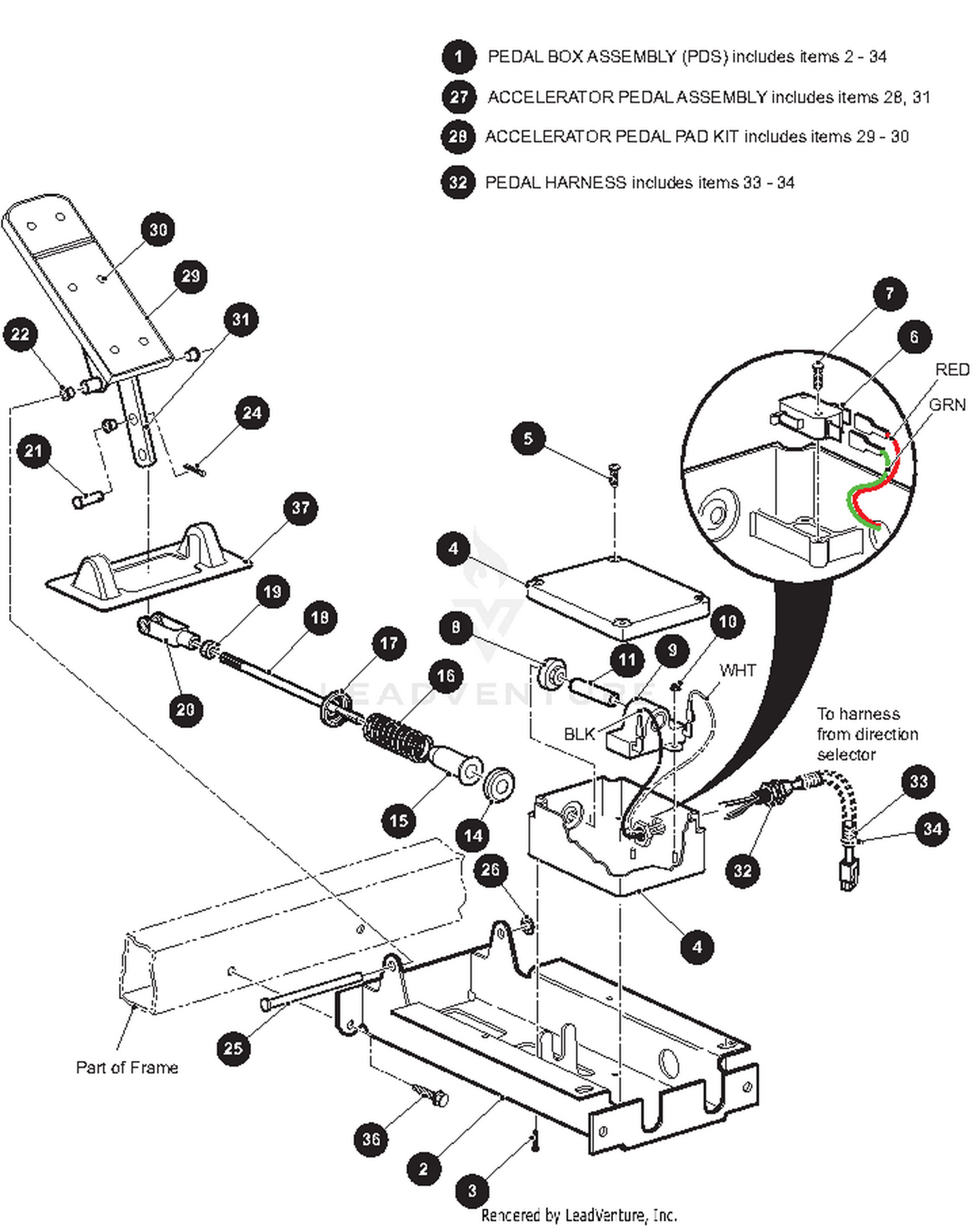

| Ref | Part Number | Description |
|---|
| 1 |
73333G11 |
PEDAL BOX ASSEMBLY Price: $532.99 |
| 2 |
652241G03 |
ACCEL. PEDAL BRACKET This part replaces 70116G02. Price: $63.99 |
| 3 |
01051G01 |
PAN HEAD PHILLIPS SCREW, #8-16X1/2 Price: $0.99 |
| 4 |
25853G01 |
PEDAL BOX AND COVER Price: $49.99 |
| 5 |
00684G6 |
TRUSS HEAD PHILLIPS SCREW, #8-32X3/4 Price: $0.99 |
| 6 |
25861G01 |
MICRO SWITCH, V-TYPE Price: $11.99 |
| 7 |
01050G01 |
PAN HEAD TORX SCREW, #4-20X5/8 Price: $0.99 |
| 8 |
28444G01 |
ACCELERATOR ROD CAM Price: $9.99 |
| 9 |
25854G01 |
INDUCTIVE THROTTLE SENSOR Price: $85.99 |
| 10 |
00983G01 |
SELF THREADING NUT, 3/16, SS Price: $1.99 |
| 11 |
602484 |
PLUNGER AND SLEEVE ASSEMBLY Price: $25.99 |
| 14 |
17677G1 |
SPRING RETAINER Price: $5.99 |
| 15 |
17979G1 |
ACCELERATOR ROD BUSHING Price: $6.99 |
| 16 |
73046G0 |
Needs Description Price: Call Us |
| 17 |
17677G2 |
SPRING RETAINER Price: $3.99 |
| 18 |
73332G01 |
ACCELERATOR ROD Price: $42.99 |
| 19 |
00532G4 |
HEX NUT, 5/16-24 Price: $0.99 |
| 20 |
10385G4 |
CLEVIS YOKE Price: $57.99 |
| 21 |
10386G3 |
CLEVIS PIN, 5/16 X 0.940 Price: $1.99 |
| 22 |
17838G1 |
NYLON BUSHING, 0.37” O.D. X 0.31” I.D Price: $2.99 |
| 24 |
10387G3 |
COTTER PIN, 0.094X0.75 Price: $0.99 |
| 25 |
74432G01 |
PEDAL PIVOT PIN Price: $4.99 |
| 26 |
12064G6 |
PUSH NUT, 5/16 Price: $0.99 |
| 27 |
25799G03 |
ACCELERATOR PEDAL ASSY Price: $54.99 |
| 28 |
27844G01 |
ACCEL. PEDAL PAD KIT Price: $15.05 |
| 29 |
27512G01 |
ACCELERATOR PAD Price: $8.99 |
| 30 |
15766G1 |
RIVET-3/8 X 15/32 Price: $3.99 |
| 31 |
CNAS |
COMPONENT NOT AVAILABLE SEPARATELY Price: Call Us |
| 32 |
25879G08 |
WIRING HARNESS, PEDAL BOX TO FNR Price: $113.09 |
| 33 |
17313G1 |
FLEX LOOM, 3/8" X 6" Price: $1.99 |
| 34 |
17618G1 |
NYLON CLAMP, 8" Price: $1.99 |
| 36 |
00715G2 |
HEX WASHER HEAD BOLT, 5/16-18 X 0.8 Price: $1.99 |
