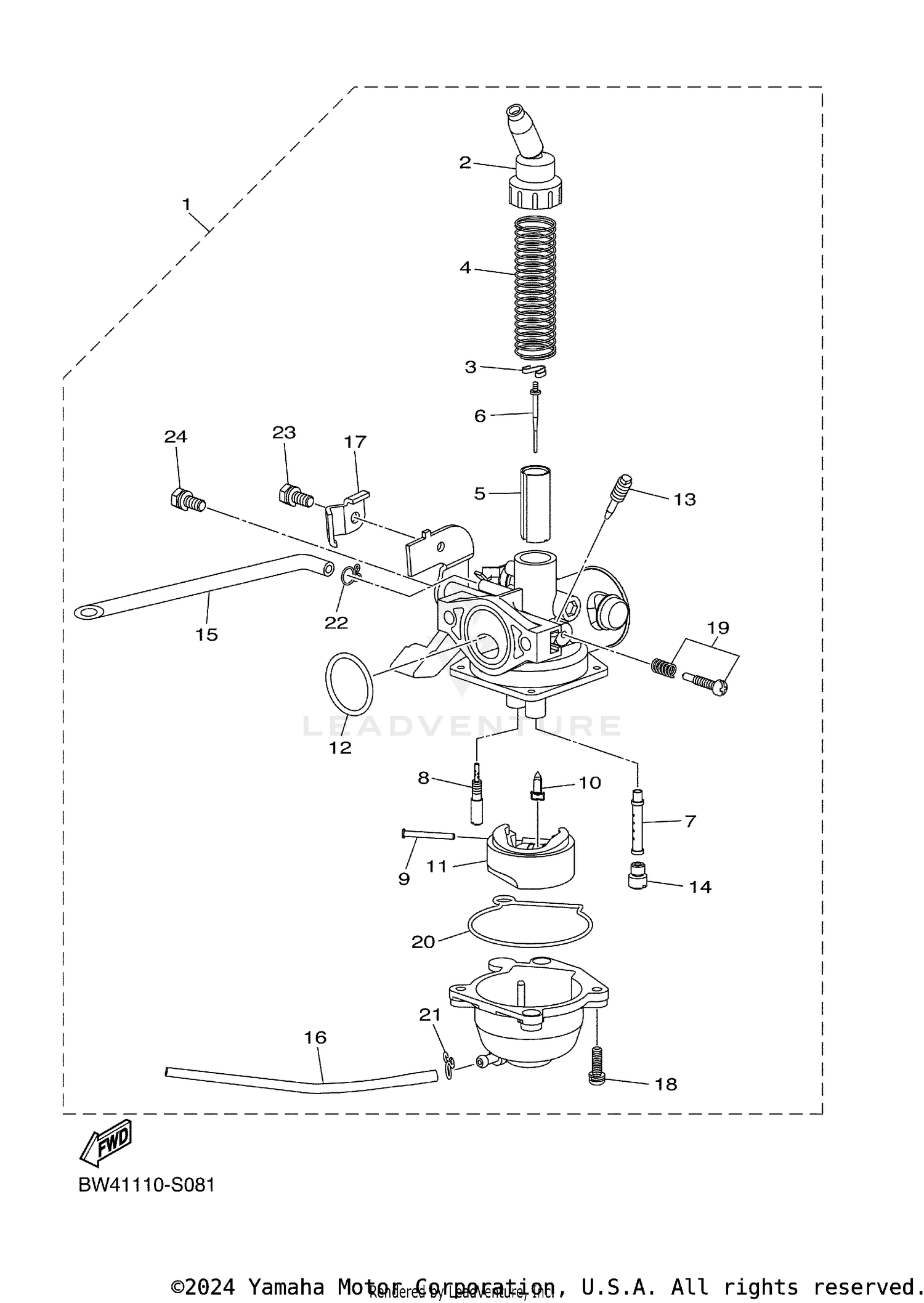

| Ref | Part Number | Description |
|---|
| 1 |
BW4-E4101-20-00 |
CARBURETOR ASSY 1 This part replaces BW4-E4101-01-00. Price: $349.99 |
| 2 |
BW4-E439D-00-00 |
CAP, MIXING CHAMBER Price: $81.99 |
| 3 |
BW4-E439G-00-00 |
CLIP 1 Price: $10.49 |
| 4 |
BW4-E4331-00-00 |
SPRING, THROTTLE VALVE Price: $10.49 |
| 5 |
BW4-E3731-00-00 |
VALVE, THROTTLE Price: $116.99 |
| 6 |
BW4-E4150-00-00 |
NEEDLE ASSY Price: $67.99 |
| 7 |
BW4-E414G-00-00 |
PIPE, MAIN BLEED Price: $88.99 |
| 8 |
3H1-14142-15-00 |
JET, PILOT (#15) This part replaces BW4-E4942-00-00. Price: $12.99 |
| 9 |
BW4-E4386-00-00 |
PIN, FLOAT Price: $16.49 |
| 10 |
BW4-E4392-00-00 |
VALVE, NEEDLE Price: $156.99 |
| 11 |
BW4-E4385-00-00 |
FLOAT Price: $80.99 |
| 12 |
BD3-E4397-00-00 |
O-RING Price: $36.99 |
| 13 |
BW4-E4123-10-00 |
SCREW, AIR ADJUSTING Price: $22.99 |
| 14 |
18A-1414A-63-00 |
JET, MAIN (#62.5) This part replaces BW4-E415A-00-00. Price: $15.49 |
| 15 |
BW4-E4348-00-00 |
PIPE 1 Price: $36.99 |
| 16 |
BW4-E4349-00-00 |
PIPE Price: $33.99 |
| 17 |
BW4-E4581-00-00 |
BRACKET Price: $8.49 |
| 18 |
BD3-E4325-00-00 |
SCREW, PAN HEAD Price: $4.75 |
| 19 |
BW4-E4521-00-00 |
SCREW, ADJUST Price: $44.99 |
| 20 |
BW4-E4384-00-00 |
GASKET, FLOAT CHAMBER Price: $36.99 |
| 21 |
BD3-E439H-10-00 |
CLIP 2 Price: $2.30 |
| 22 |
BW4-E449C-00-00 |
CLIP 1 Price: $10.49 |
| 23 |
BW4-E4216-00-00 |
SCREW Price: $3.05 |
