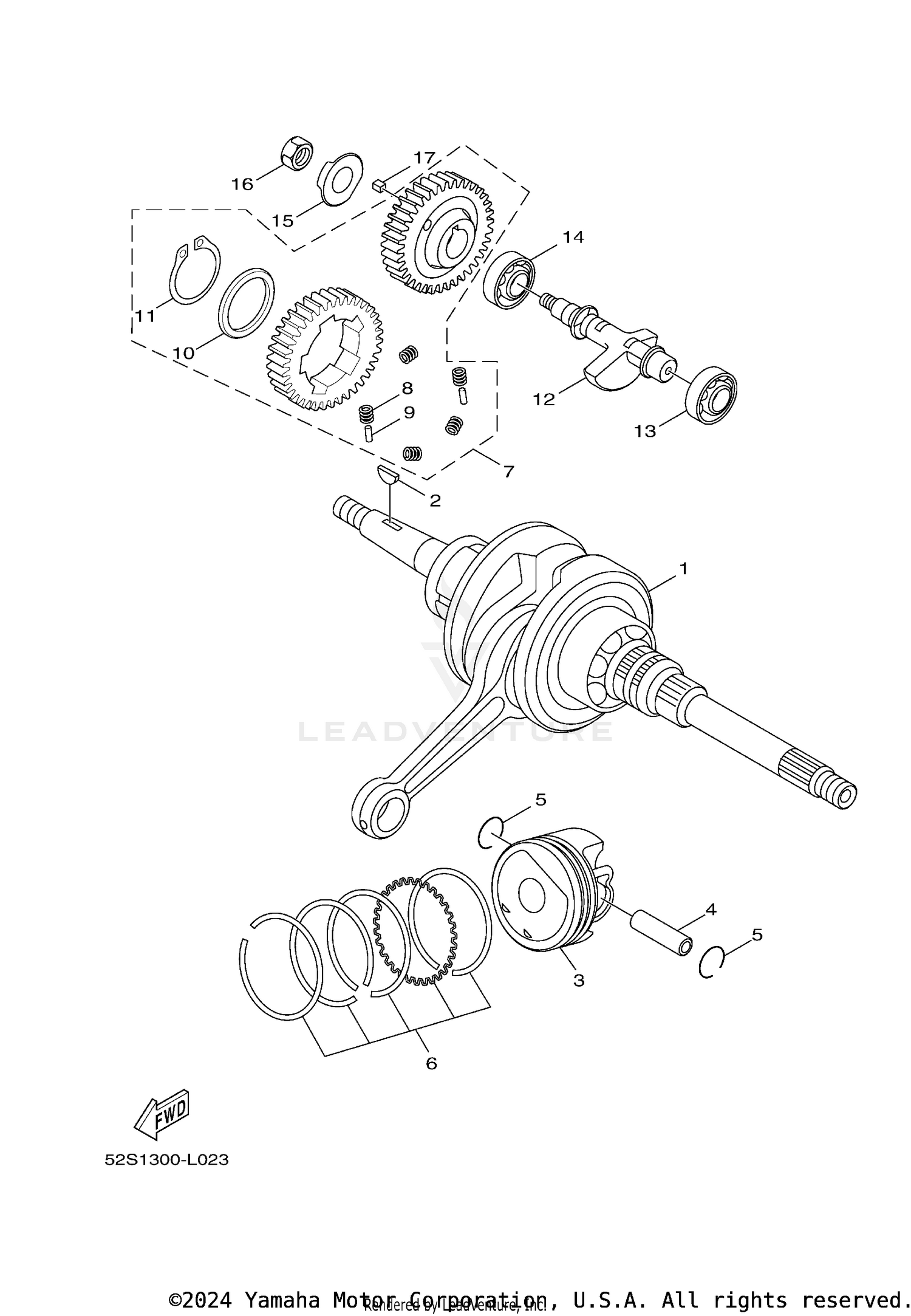

CRANKSHAFT & PISTON
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 52S-XE140-00-00 | CRANKSHAFT ASSY Price: $286.99 |
| 2 | 90280-03017-00 | KEY, WOODRUFF This part replaces 90280-03045-00. Price: $8.49 |
| 3 | 52S-E1631-00-00 | PISTON (STD) Price: $103.99 |
| 4 | 52S-E1633-00-00 | PIN, PISTON Price: $4.50 |
| 5 | 93450-16068-00 | CIRCLIP Price: $8.49 |
| 6 | 52S-E1603-00-00 | PISTON RING SET (STD) Price: $14.49 |
| 7 | 52S-WE153-00-00 | GEAR, DRIVE Price: $90.99 |
| 8 | 90501-21801-00 | SPRING, COMPRESSION Price: $1.00 |
| 9 | 93604-10800-00 | PIN, DOWEL Price: $0.35 |
| 10 | 90201-35801-00 | WASHER, PLATE Price: $1.75 |
| 11 | 93410-35M10-00 | CIRCLIP (6U2) This part replaces 99009-35400-00. Price: $8.49 |
| 12 | 52S-E1454-00-00 | WEIGHT 1 Price: $27.99 |
| 13 | 93306-203XK-00 | BEARING Price: $25.99 |
| 14 | 93306-203XY-00 | BEARING Price: $8.49 |
| 15 | 90215-10803-00 | WASHER, LOCK Price: $1.95 |
| 16 | 90170-10804-00 | NUT Price: $1.55 |
