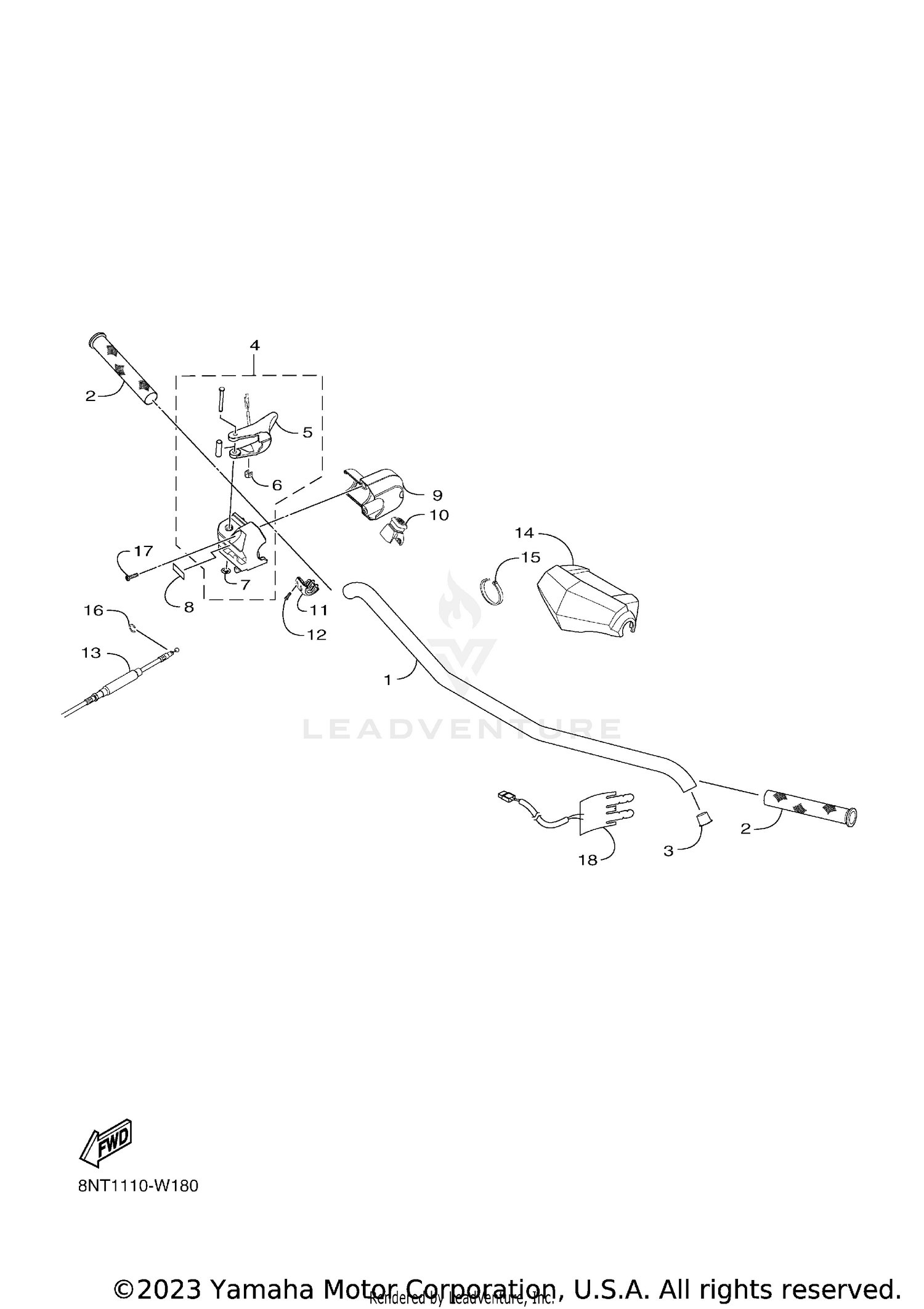

STEERING
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8LJ-F6111-00-00 | HANDLEBAR Price: $97.99 |
| 2 | 8JR-F6241-00-00 | GRIP Price: $21.99 |
| 3 | 8JR-F3856-10-00 | NUT Price: $0.65 |
| 4 | 8ND-H2720-10-00 | LEVER HOLDER ASSY (RIGHT) This part replaces 8ND-H2720-00-00. Price: $328.99 |
| 5 | 8ND-H2720-10-00 | LEVER HOLDER ASSY (RIGHT) This part replaces 8ND-G2138-00-00. Price: $328.99 |
| 6 | 8JP-RAC10-10-00 | CLIP, 1 Price: $19.49 |
| 7 | 8JP-RA346-00-00 | NUT, 0.125 Price: $1.90 |
| 8 | 8NV-H252U-00-00 | COVER Price: $3.65 |
| 9 | 8MY-H2710-00-00 | LEVER HOLDER ASSY Price: $10.49 |
| 10 | 8ND-H6284-00-00 | STOP SWITCH Price: $81.99 |
| 11 | 8MY-H2544-00-00 | CLAMP Price: $6.99 |
| 12 | 8MY-RA200-00-00 | SCREW Price: $0.80 |
| 13 | 8NT-F6311-00-00 | WIRE, THROTTLE 1 Price: $81.99 |
| 14 | 8JP-F6124-00-00 | PROTECTOR, HANDLEBAR Price: $24.99 |
| 16 | 8JM-RAH02-00-00 | CIRCLIP, 3 Price: $2.15 |
| 17 | 8ML-RA286-00-00 | SCREW, 8-18X0.875 Price: $4.20 |
