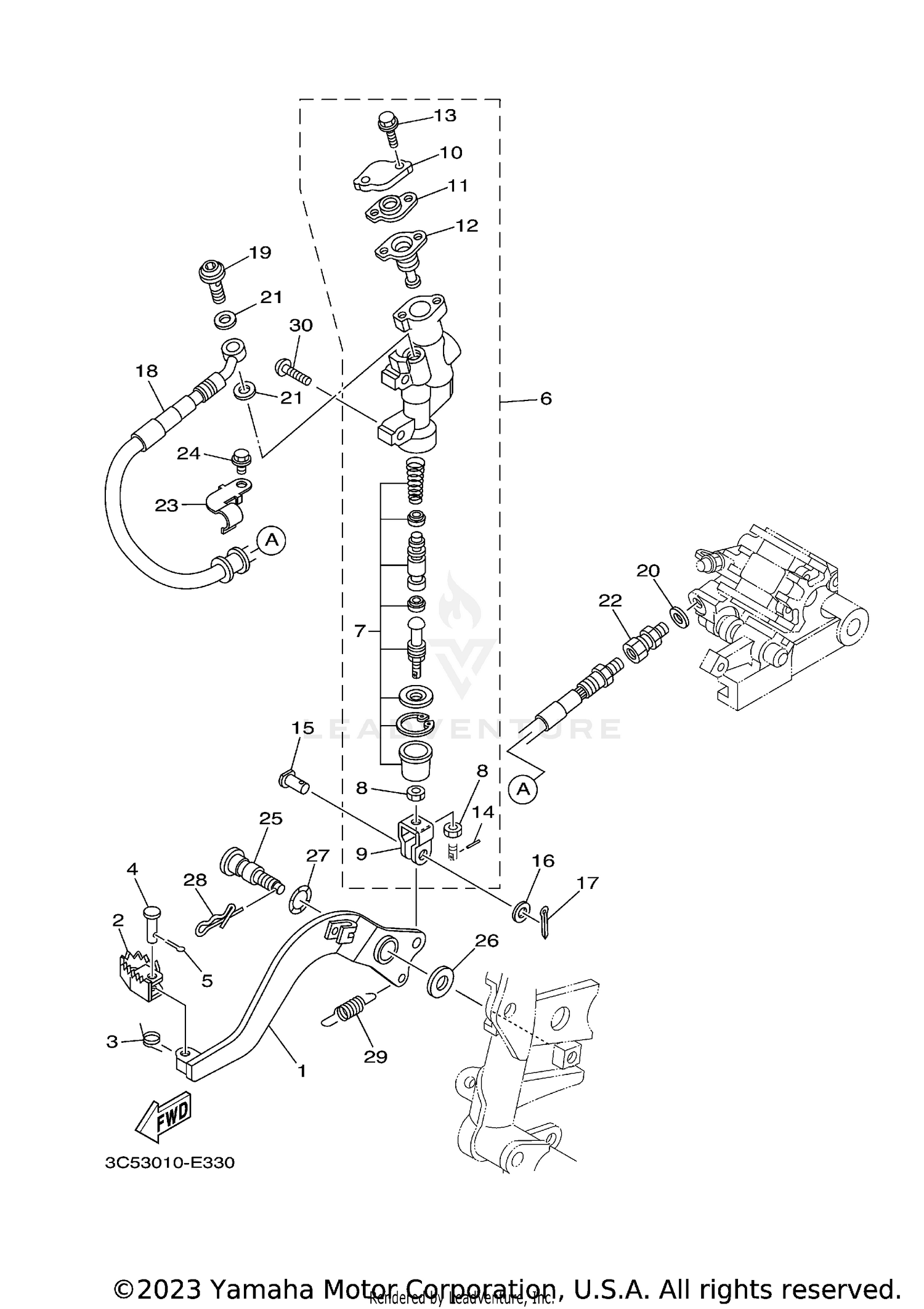

| Ref | Part Number | Description |
|---|
| 1 |
3C5-27211-10-00 |
PEDAL, BRAKE Price: $58.99 |
| 2 |
55V-27242-00-00 |
PEDAL, BRAKE Price: $25.99 |
| 3 |
90508-14352-00 |
SPRING, TORSION Price: $10.49 |
| 4 |
91701-06022-00 |
PIN, CLEVIS Price: $2.70 |
| 5 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 6 |
5XT-2583V-10-00 |
REAR MASTER CYLINDER ASSY. Price: $228.99 |
| 7 |
5XT-W0042-50-00 |
CYLINDER KIT, MASTER Price: $61.99 |
| 8 |
95317-08700-00 |
NUT This part replaces 4SS-27218-00-00. Price: $10.49 |
| 9 |
2YK-27222-00-00 |
JOINT Price: $23.99 |
| 10 |
5UN-25852-50-00 |
CAP, RESERVOIR Price: $18.99 |
| 11 |
5UN-2585B-00-00 |
PLATE, DIAPHRAGM Price: $8.49 |
| 12 |
5UN-25854-00-00 |
DIAPHRAGM, RESERVOIR Price: $15.49 |
| 13 |
5UN-27217-00-00 |
BOLT Price: $5.99 |
| 14 |
3KW-27234-00-00 |
PIN, BRAKE ROD Price: $8.49 |
| 15 |
90240-08005-00 |
PIN, CLEVIS Price: $9.49 |
| 16 |
90201-08083-00 |
WASHER, PLATE Price: $10.49 |
| 17 |
91490-16020-00 |
PIN, COTTER This part replaces 91401-16012-00. Price: $6.70 |
| 18 |
3C5-25873-00-00 |
HOSE, BRAKE 2 Price: $68.99 |
| 19 |
90401-10172-00 |
BOLT, UNION Price: $6.49 |
| 20 |
90201-10118-00 |
WASHER, PLATE Price: $3.80 |
| 21 |
90430-10005-00 |
GASKET Price: $9.49 |
| 22 |
3LC-25885-00-00 |
JOINT Price: $31.99 |
| 23 |
3C5-25887-00-00 |
HOLDER, BRAKE HOSE Price: $5.49 |
| 24 |
95817-06008-00 |
BOLT, FLANGE This part replaces 95802-06008-00. Price: $9.49 |
| 25 |
2YK-27261-00-00 |
SHAFT This part replaces 5XT-27261-00-00. Price: $12.49 |
| 26 |
90201-105J4-00 |
WASHER, PLATE This part replaces 90201-10135-00. Price: $10.49 |
| 27 |
90206-14001-00 |
WASHER, WAVE Price: $9.49 |
| 28 |
90468-16191-00 |
CLIP Price: $9.49 |
| 29 |
90506-23008-00 |
SPRING, TENSION Price: $8.49 |
