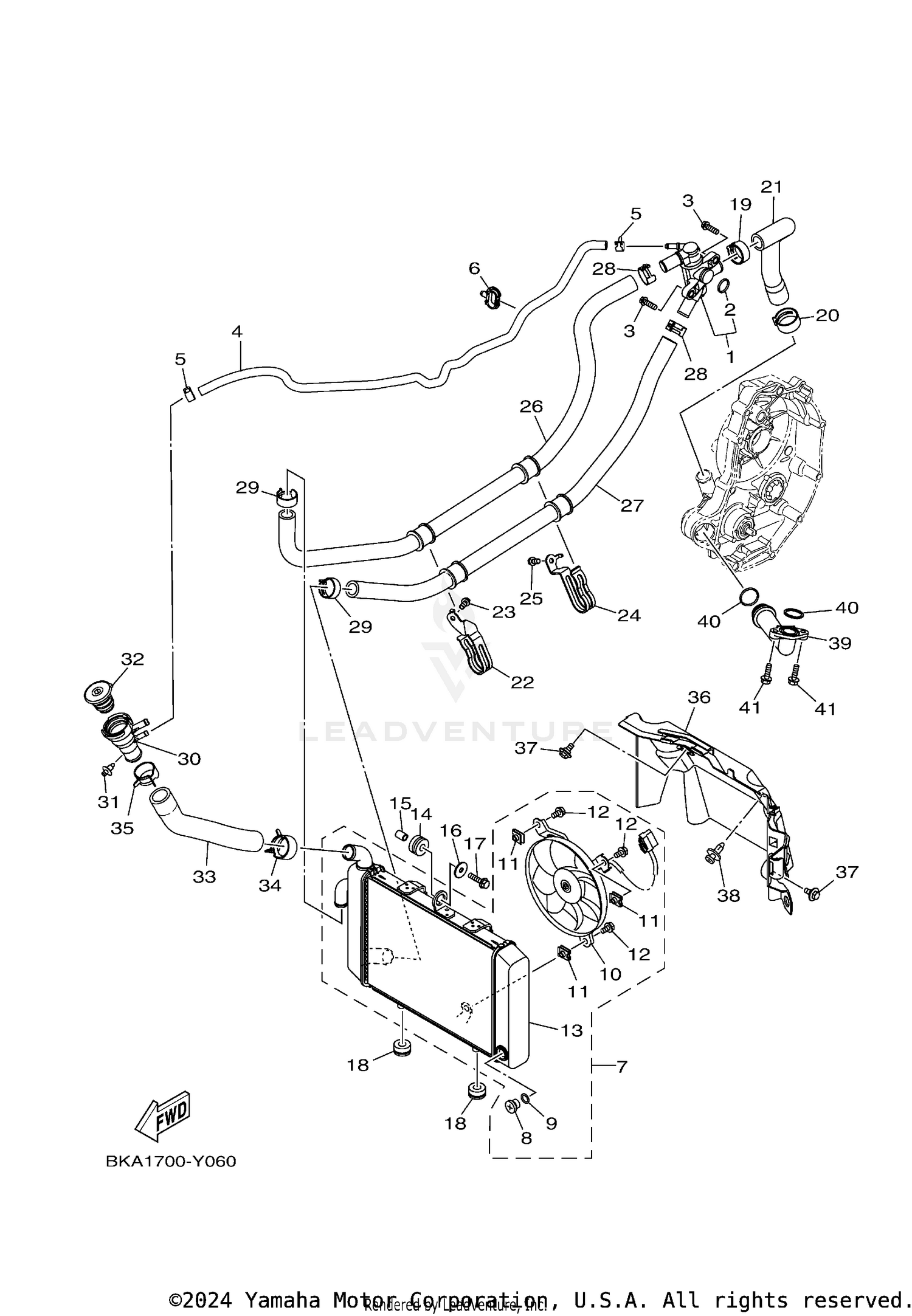

| Ref | Part Number | Description |
|---|
| 1 |
B74-12410-00-00 |
THERMOSTAT ASSY Price: $120.99 |
| 2 |
52S-12439-00-00 |
O-RING Price: $2.95 |
| 3 |
95E32-06020-00 |
BOLT, FLANGE DEEP RE Price: $0.95 |
| 4 |
BKA-E2576-00-00 |
HOSE 1 Price: $8.49 |
| 5 |
90467-10038-00 |
CLIP Price: $2.30 |
| 6 |
90464-10802-00 |
CLAMP Price: $0.85 |
| 7 |
B74-E240A-01-00 |
RADIATOR ASSY Price: $251.99 |
| 8 |
5ST-E2615-00-00 |
COCK, DRAIN Price: $9.49 |
| 9 |
5ST-E2843-00-00 |
O-RING Price: $2.90 |
| 10 |
B74-E2405-00-00 |
BLOWER ASSY Price: $127.99 |
| 11 |
1WD-E2671-00-00 |
NUT 1 Price: $2.45 |
| 12 |
5GJ-12675-00-00 |
BOLT, BLOWER HOLDING Price: $8.49 |
| 13 |
B74-E2461-00-00 |
RADIATOR COMP Price: $138.99 |
| 14 |
90480-15483-00 |
GROMMET Price: $8.49 |
| 15 |
90387-06144-00 |
COLLAR This part replaces 90387-064W3-00. Price: $6.49 |
| 16 |
90201-06033-00 |
WASHER, PLATE Price: $3.20 |
| 17 |
95D32-06025-00 |
BOLT, FLANGE DEEP RECESS Price: $1.15 |
| 18 |
90480-14818-00 |
GROMMET Price: $2.60 |
| 19 |
90467-22002-00 |
CLIP Price: $4.49 |
| 20 |
90467-24800-00 |
CLIP Price: $4.05 |
| 21 |
B74-E2481-00-00 |
PIPE 1 Price: $7.49 |
| 22 |
B74-F1823-00-00 |
CLAMP, HOSE Price: $6.99 |
| 23 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 24 |
B74-F2591-00-00 |
CLAMP, HOSE Price: $5.99 |
| 25 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 26 |
B74-E2482-00-00 |
PIPE 2 Price: $20.99 |
| 27 |
B74-E2483-00-00 |
PIPE 3 Price: $17.99 |
| 28 |
90467-20805-00 |
CLIP Price: $3.25 |
| 29 |
90467-21801-00 |
CLIP Price: $9.99 |
| 30 |
B74-E2591-00-00 |
SUPPORT, FILLER NECK Price: $60.99 |
| 31 |
90269-07014-00 |
RIVET Price: $2.70 |
| 33 |
BKA-E2484-00-00 |
PIPE 4 Price: $6.99 |
| 34 |
90467-250A1-00 |
CLIP Price: $4.05 |
| 35 |
90467-26131-00 |
CLIP Price: $3.80 |
| 36 |
B74-E2467-01-00 |
COVER, RADIATOR Price: $32.99 |
| 37 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 38 |
90269-06812-00 |
RIVET Price: $1.30 |
| 39 |
B74-E2446-00-00 |
JOINT Price: $18.49 |
| 40 |
93210-22382-00 |
O-RING This part replaces 93210-22800-00. Price: $9.49 |
