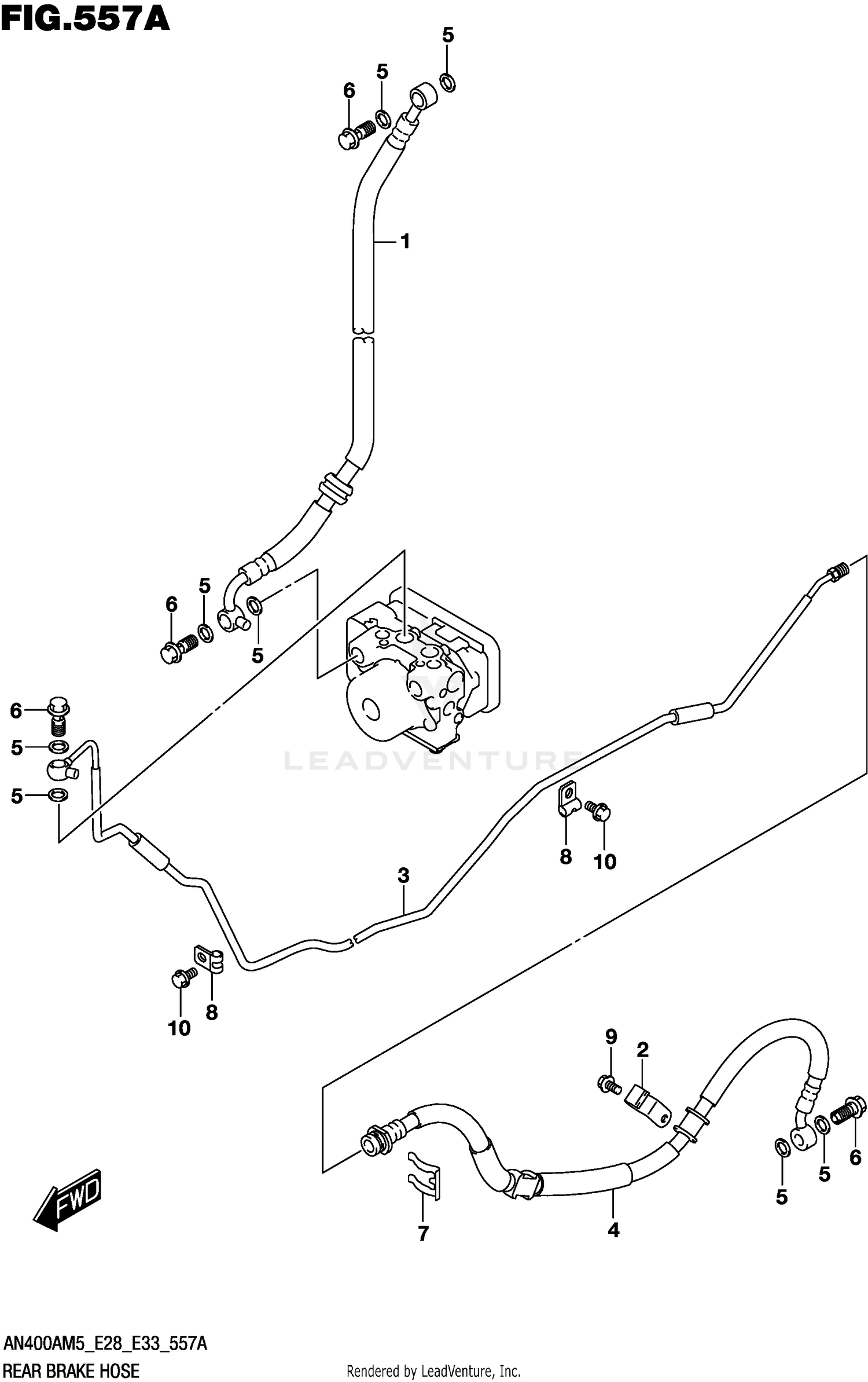

REAR BRAKE HOSE
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69240-19K20 | HOSE,RR BK MASTER TO UNIT Price: $52.24 |
| 2 | 69266-05H00 | CLAMP,RR BRAKE HOSE NO.2 Price: $9.94 |
| 3 | 69450-19K20 | PIPE,REAR BRAKE Price: $77.07 |
| 4 | 69480-19K20 | HOSE,UNIT TO RR BK CLPR Price: $67.93 |
| 5 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 6 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 7 | 09383-13003 | E RING This part replaces 09383-13001. Price: $2.75 |
| 8 | 09403-07412 | CLAMP Price: $2.58 |
| 9 | 01547-0612A | BOLT Price: $2.45 |
