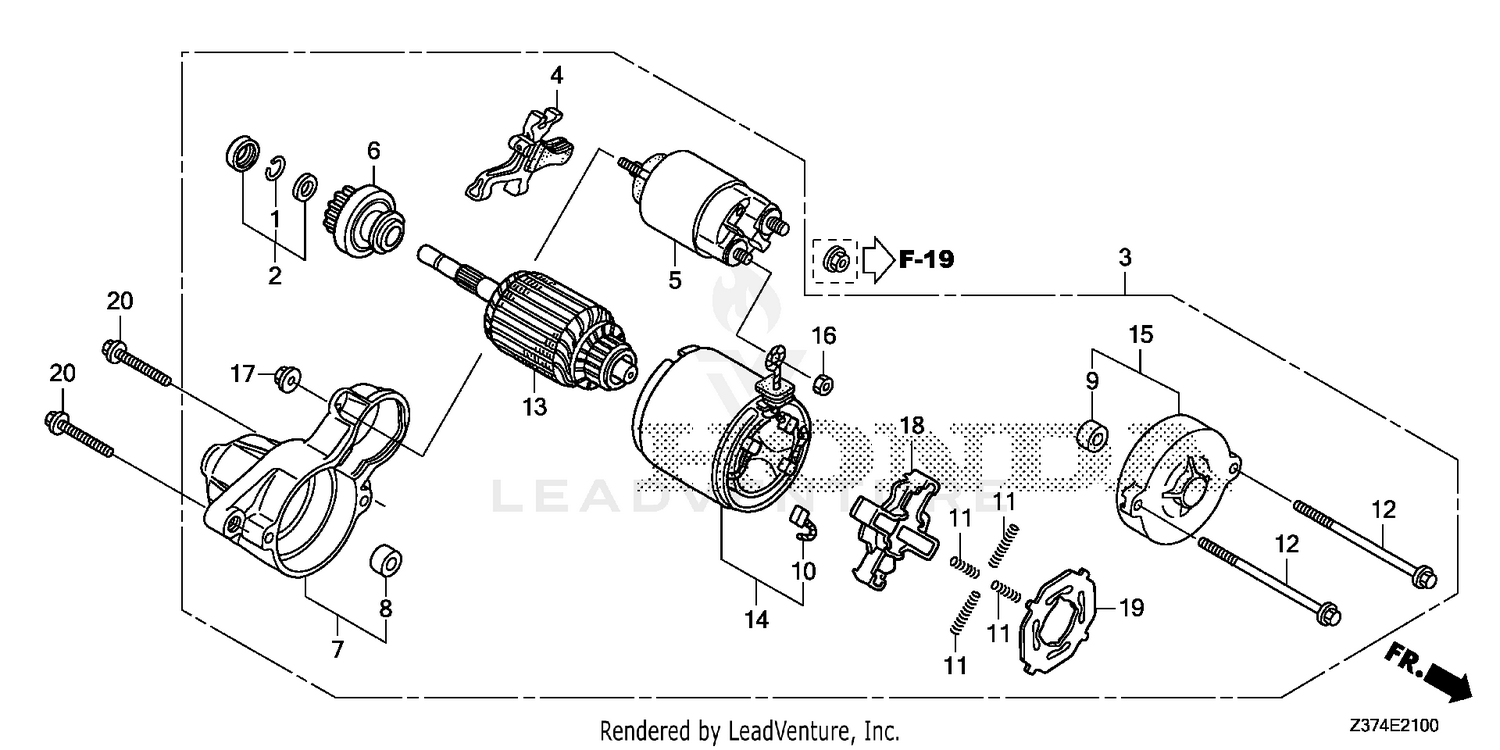

| Ref | Part Number | Description |
|---|
| 1 |
30201-PH9-004 |
RING, SNAP (DENSO) (Honda Code 3508322). Price: $3.64 |
| 2 |
30202-PZ1-003 |
SEE PART DETAILS - PRI; COLLAR SET, CLUTCH STOP Price: $22.22 |
| 3 |
31200-Z1C-C01 |
STARTER MOTOR ASSY. (DENSO) Price: $131.56 |
| 4 |
31203-PN4-003 |
LEVER, PINION DRIVE (Honda Code 3508397). Price: $39.36 |
| 5 |
31204-Z2E-003 |
SWITCH ASSY., MAGNET Price: $191.84 |
| 6 |
31207-ZF6-F41 |
CLUTCH, OVERRUNNING Price: $262.40 |
| 7 |
31208-ZF6-F41 |
HOUSING, DRIVE SIDE Price: $139.06 |
| 8 |
31209-PH9-004 |
BEARING A Price: $10.98 |
| 9 |
31210-PH9-004 |
BEARING B (Honda Code 3508413). Price: $13.16 |
| 10 |
31211-PH9-004 |
BRUSH (Honda Code 3620366). Price: $21.06 |
| 11 |
31212-PH9-004 |
SPRING, BRUSH (Honda Code 3508439). Price: $7.70 |
| 12 |
31214-PH9-004 |
BOLT, THROUGH (Honda Code 3508454). Price: $11.42 |
| 13 |
31217-Z1C-C01 |
ARMATURE (NOT AVAILABLE) Price: Call Us |
| 14 |
31218-PH9-004 |
YOKE Price: $303.04 |
| 15 |
31219-ZF6-F41 |
FRAME, COMMUTATOR END Price: $41.01 |
| 16 |
31220-PH9-004 |
NUT, HEX. (8MM) (Honda Code 3508470). Price: $4.50 |
| 17 |
31223-RYE-A01 |
NUT Price: $3.22 |
| 18 |
31231-PH9-004 |
HOLDER, BRUSH (Honda Code 3508496). Price: $62.84 |
| 19 |
31233-PH9-004 |
INSULATOR, BRUSH HOLDER (Honda Code 3508504). Price: $38.62 |
