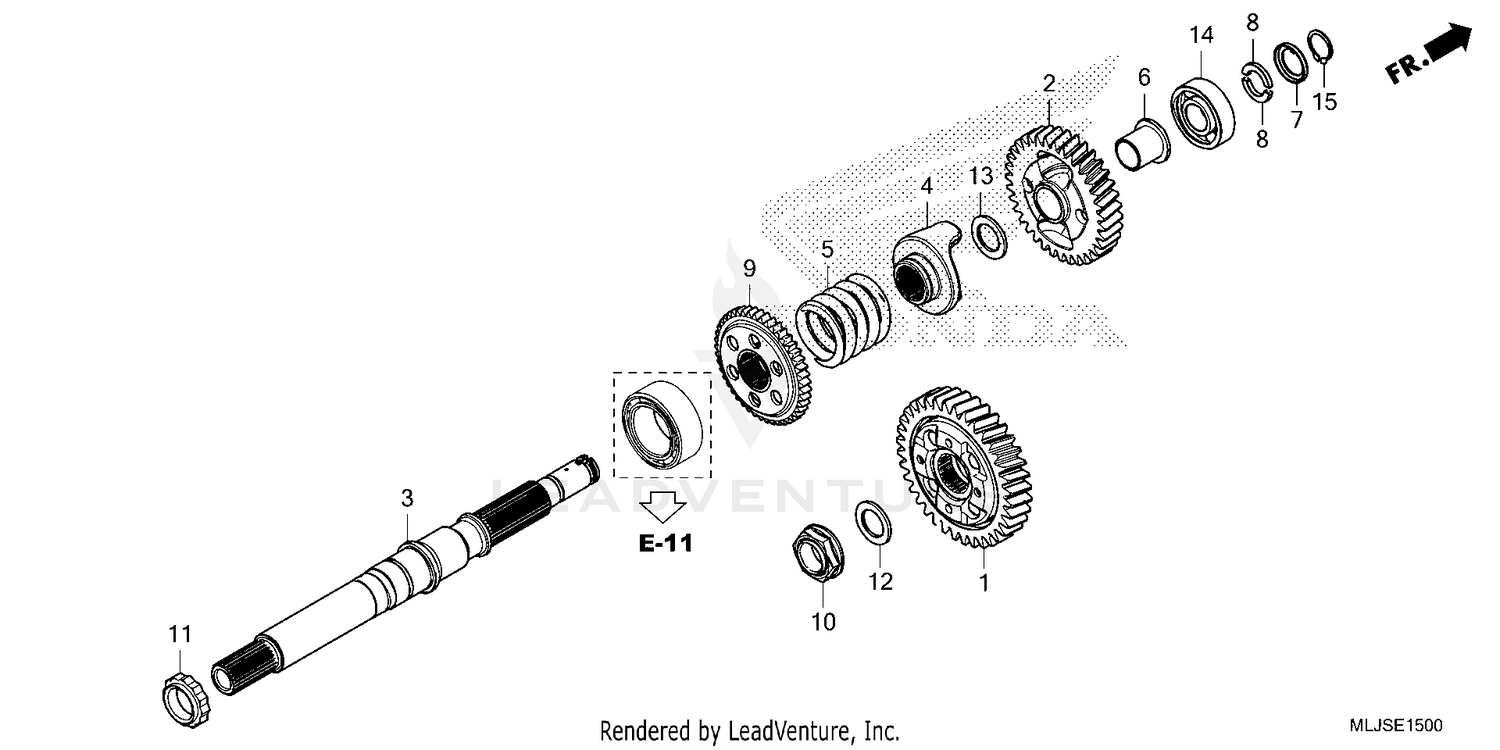

| Ref | Part Number | Description |
|---|
| 1 |
23570-MKC-A00 |
GEAR, FINAL DRIVE (36T) Price: $249.11 |
| 2 |
23581-MKC-A00 |
GEAR, FINAL DRIVEN (35T) Price: $129.18 |
| 3 |
23611-MKC-A00 |
SHAFT, FINAL GEAR Price: $221.45 |
| 4 |
23721-MJG-A00 |
LIFTER, FINAL DAMPER Price: $39.65 |
| 5 |
23732-MJG-A00 |
SPRING, FINAL DAMPER Price: $49.75 |
| 6 |
23733-MN5-000 |
COLLAR (22X26X27.6) Price: $10.98 |
| 7 |
23741-MN5-000 |
RETAINER, FINAL SHAFT Price: $5.75 |
| 8 |
23742-MN5-000 |
WASHER, SPRING STOPPER Price: $13.56 |
| 9 |
28178-MCA-000 |
GEAR, REVERSE DRIVEN (45T) Price: $134.02 |
| 10 |
90205-MCA-780 |
NUT, SPECIAL (22MM) Price: $13.20 |
| 11 |
90241-MKC-A00 |
NUT, LOCK (34MM) Price: $18.13 |
| 12 |
90498-MEC-000 |
WASHER (22.1X36X2.6) Price: $4.55 |
| 13 |
90498-MN5-000 |
WASHER (22.2X35.2.6) Price: $9.71 |
| 14 |
91003-MCA-003 |
BEARING, RADIAL BALL (22X52X15) Price: $23.35 |
