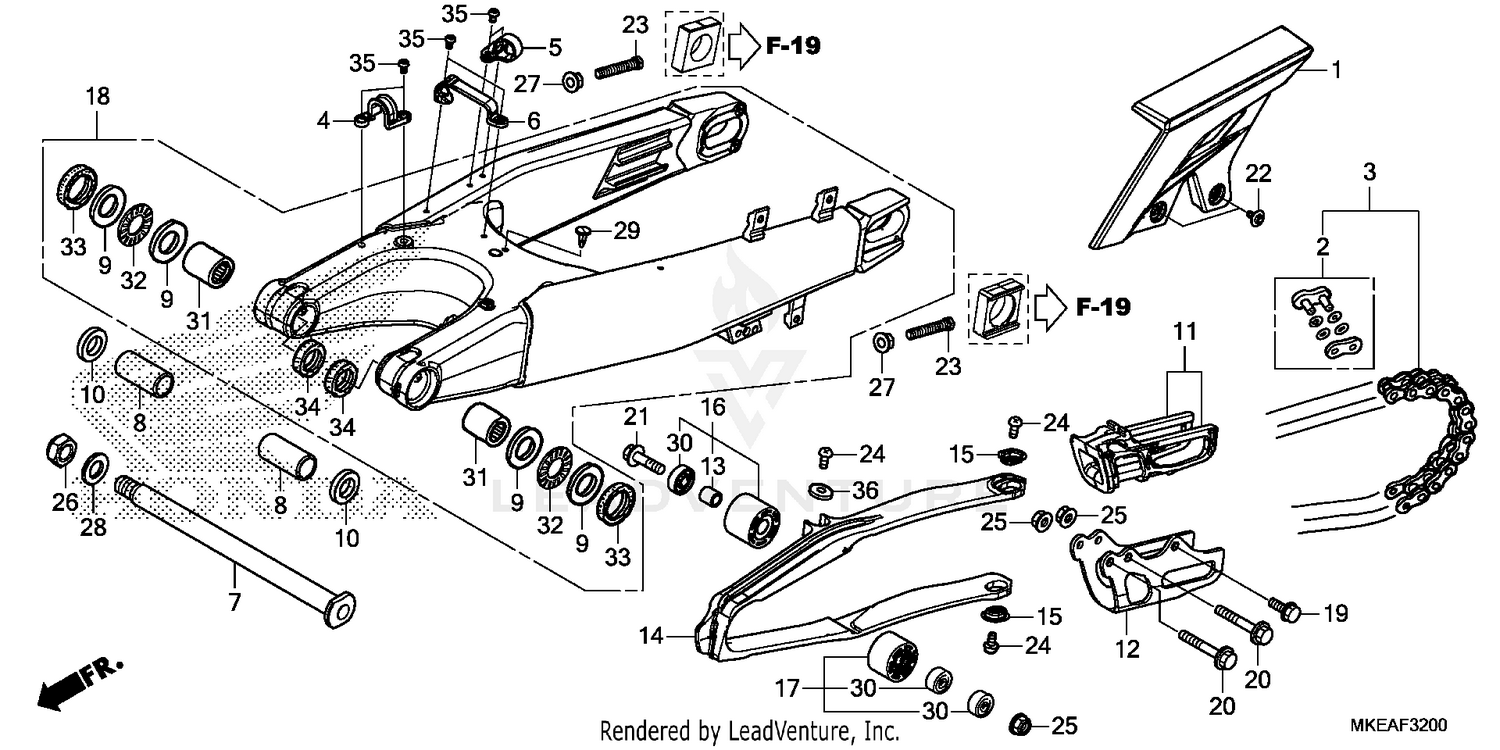

| Ref | Part Number | Description |
|---|
| 1 |
40510-MKE-A50 |
CASE, DRIVE CHAIN Price: $98.04 |
| 2 |
40531-MKE-A12 |
MASTER LINK (RK)(SEAL TYPE) Price: $9.16 |
| 3 |
40540-MKE-A12 |
CHAIN, DRIVE (RK520EXU-120-LJFZ) (RK) (STANDARD LINK 114L) Price: $230.65 |
| 4 |
43468-KRN-A90 |
GUIDE, BRAKE HOSE Price: $9.93 |
| 5 |
43468-KRN-C90 |
GUIDE A, BRAKE HOSE Price: $5.53 |
| 6 |
43469-MKE-A00 |
GUIDE B, BRAKE HOSE Price: $6.20 |
| 7 |
52101-KZ4-J40 |
SHAFT, SWINGARM PIVOT Price: $31.00 |
| 8 |
52141-MKE-A00 |
COLLAR, SWINGARM (45MM) Price: $25.95 |
| 9 |
52143-MEN-A30 |
WASHER, SWINGARM SIDE THRUST Price: $2.20 |
| 10 |
52143-MKE-A60 |
COLLAR, SWINGARM PIVOT SIDE Price: $13.15 |
| 11 |
52146-MKE-A50 |
GUIDE SET, CHAIN Price: $38.69 |
| 12 |
52147-MEN-J00 |
PLATE, CHAIN GUIDE Price: $57.42 |
| 13 |
52160-MEN-000 |
COLLAR, CHAIN TENSIONER Price: $3.11 |
| 14 |
52170-MKE-A51 |
SLIDER, CHAIN Price: $110.78 |
| 15 |
52171-KR6-000 |
WASHER, CHAIN SLIDER Price: $2.95 |
| 16 |
52175-MKE-A00 |
ROLLER, CHAIN (34MM) Price: $61.93 |
| 17 |
52176-MKE-A00 |
ROLLER, CHAIN (LOWER) (34MM) Price: $61.93 |
| 18 |
52200-MKE-A50ZB |
SWINGARM SUB-ASSY., RR. *NH900L* (DEEP BLACK) Price: $1,177.24 |
| 19 |
90020-GHB-620 |
BOLT, FLANGE (6X12) Price: $2.45 |
| 20 |
90020-GHB-750 |
BOLT, FLANGE (6X45) Price: $3.09 |
| 21 |
90101-MEN-A70 |
BOLT, FLANGE (8X32) Price: $3.76 |
| 22 |
90103-MKE-A00 |
BOLT, SPECIAL (6MM) Price: $3.58 |
| 23 |
90105-MEN-000 |
BOLT, HEX. (8X47.5) Price: $3.49 |
| 24 |
90115-KV3-700 |
SCREW, PAN (5X8) Price: $2.98 |
| 25 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 26 |
90305-KZ3-B01 |
NUT, U HEX. (14MM) Price: $7.31 |
| 27 |
90309-357-000 |
NUT, HEX. (10MM) Price: $4.27 |
| 28 |
90501-GAH-000 |
WASHER (26X14X2.8) Price: $8.33 |
| 29 |
90666-SA0-003M4 |
CLIP, TRIM (5MM) *NH900L* (DEEP BLACK) Price: $6.73 |
| 30 |
91051-KRN-A31 |
BEARING, RADIAL BALL (608UU) Price: $15.15 |
| 31 |
91071-MJ0-004 |
BEARING, NEEDLE (THOMPSON) This part replaces 91071-MJ0-003. Price: $44.65 |
| 32 |
91072-KZ3-861 |
BEARING, NEEDLE THRUST Price: $16.31 |
| 33 |
91251-MKE-A01 |
DUST SEAL (30X37X3) Price: $8.27 |
| 34 |
91252-MKE-A01 |
DUST SEAL (22X29X3) Price: $6.65 |
| 35 |
93500-05008-0G |
SCREW, PAN (5X8) Price: $0.95 |
