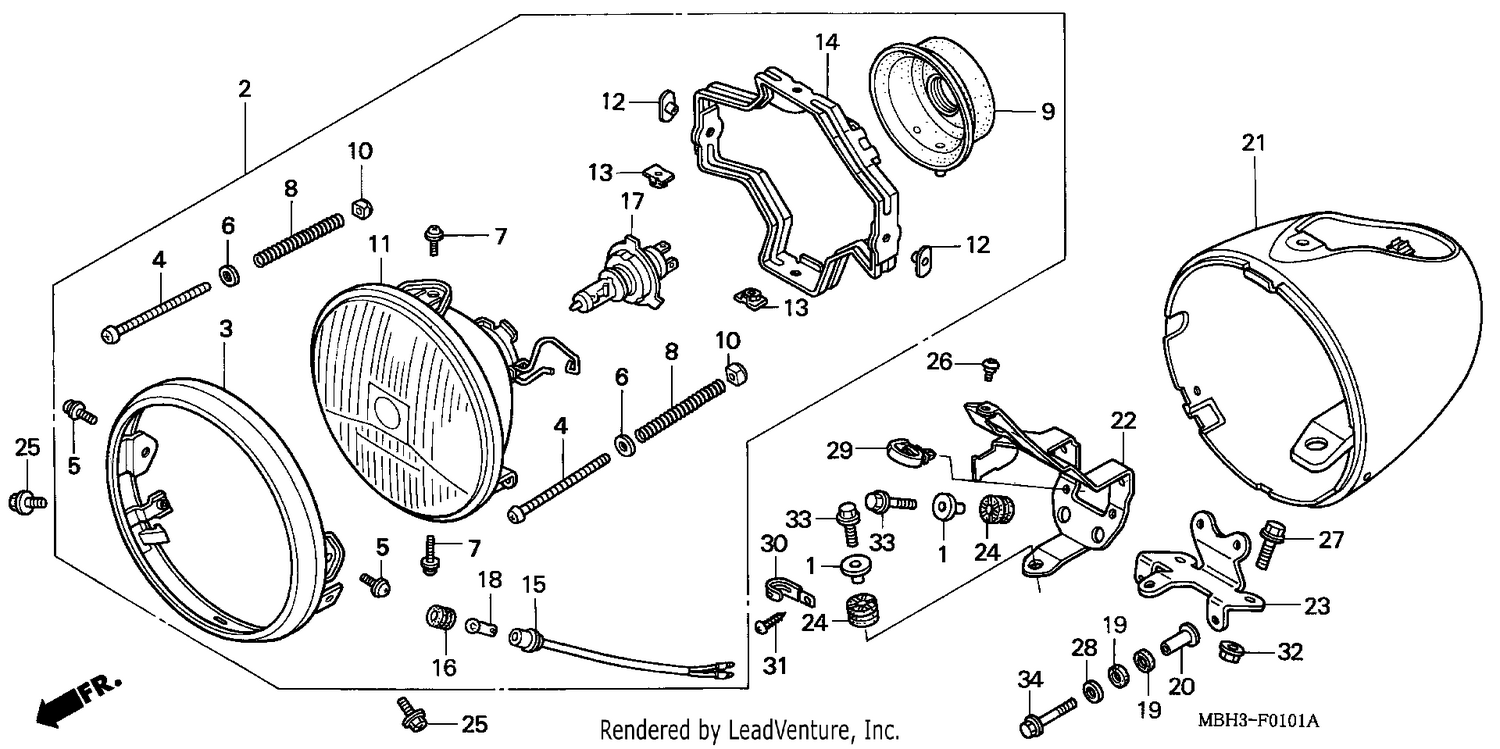

HEADLIGHT (2)

HEADLIGHT (2)

Parts (33)

RefPart NumberDescription
1 17248402700 COLLAR, AIR CLEANER Price: Call Us
2 33100MAH612 HEADLIGHT ASSY. (12V 60/55W) Price: Call Us
3 33101MAH671 RIM COMP., HEADLIGHT Price: Call Us
4 33103MAH671 SCREW, BEAM ADJUSTING Price: Call Us
5 33104MAH671 SCREW-WASHER Price: Call Us
6 33105MAH671 WASHER Price: Call Us
7 33106MAH671 SCREW-WASHER Price: Call Us
8 33107MK7671 SPRING, BEAM ADJUSTING Price: Call Us
9 33112MM9013 COVER, RUBBER Price: Call Us
10 33118438841 NUT, BEAM ADJUSTING Price: Call Us
11 33120MAH611 HEADLIGHT UNIT Price: Call Us
12 33128MAH671 NUT, SPECIAL Price: Call Us
13 33129MAH671 NUT COMP. Price: Call Us
14 33153MAH673 RING COMP., HEADLIGHT Price: Call Us
15 33170MAH611 SOCKET COMP., POSITION LIGHT Price: Call Us
16 33905371601 RUBBER, JOINT Price: Call Us
17 34901MC7601 BULB, HEADLIGHT (12V 60/55W) (STANLEY) Price: Call Us
18 34903388611 BULB, POSITION (12V 4W) Price: Call Us
19 53210HA0000 RUBBER, HANDLE COVER UPPER Price: Call Us
20 61101KE1000 COLLAR, FR. FENDER SETTING Price: Call Us
21 61301MBH000 CASE, HEADLIGHT Price: Call Us
22 61302MBH000 STAY, METER Price: Call Us
23 61311MBH000 STAY, HEADLIGHT Price: Call Us
24 61312MBH000 CUSHION, HEADLIGHT Price: Call Us
25 90007MBC000 BOLT, FLANGE, 5X12 Price: Call Us
26 90106KY2701 SCREW, PAN, 6X11 Price: Call Us
27 90183438000 BOLT, SPECIAL FLANGE, 8X26 Price: Call Us
28 90406ZV5000 WASHER, 6MM Price: Call Us
29 90690SA0003 STRAP, WIRE HARNESS, 25MM (BLACK) Price: Call Us
30 91411679000 CLIP Price: Call Us
31 93500050080H SCREW, PAN, 5X8 Price: Call Us
32 9405008000 NUT, FLANGE, 8MM Price: Call Us
33 957010602500 BOLT, FLANGE, 6X25 Price: Call Us
