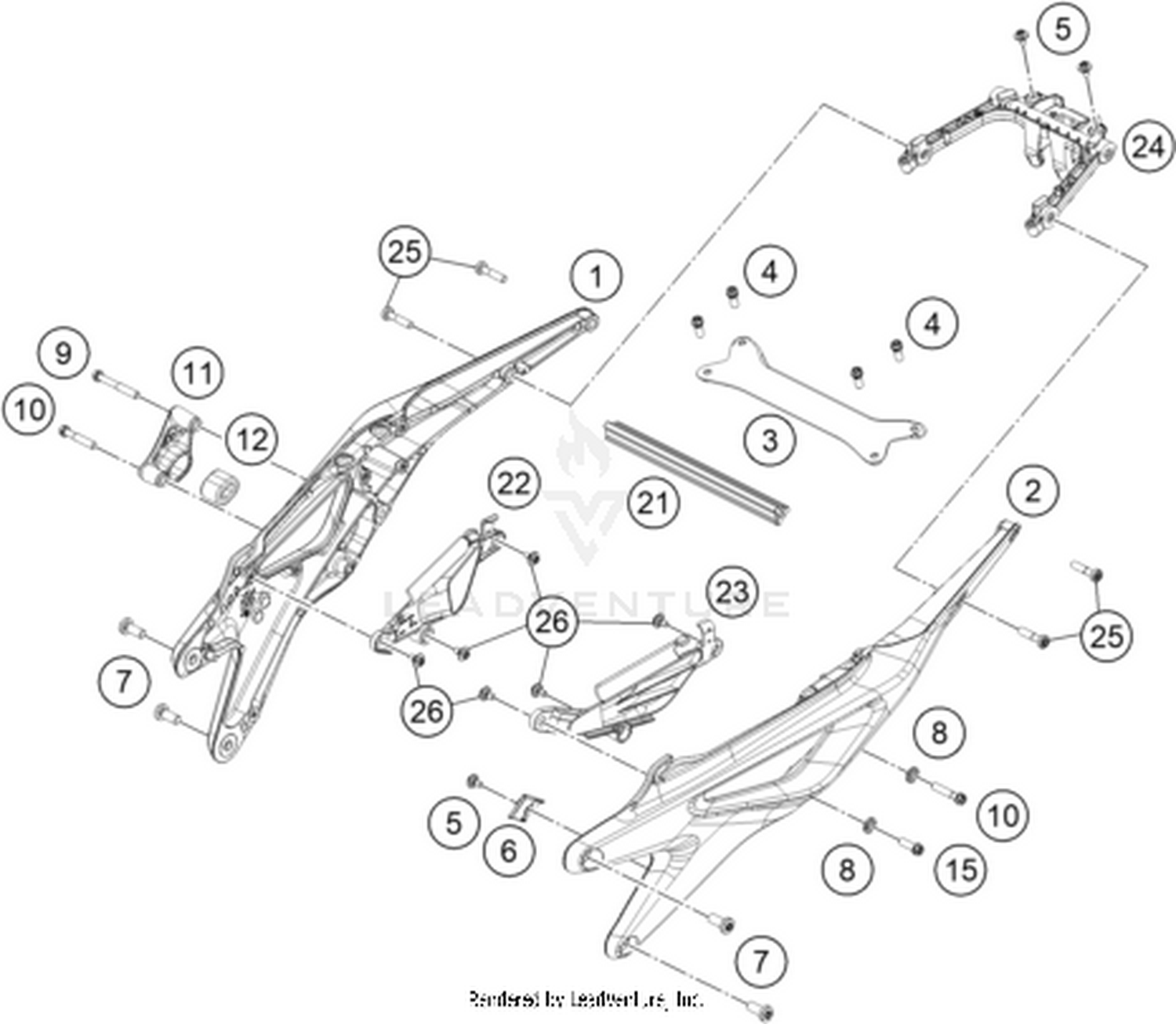

03 SUBFRAME
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 64103002006KC | Subframe right dark galvano Price: Call Us |
| 2 | 64103002005KC | Subframe left dark galvano Price: Call Us |
| 3 | 6410300200430 | Cross member Price: Call Us |
| 4 | 0025080186S | HH collar screw M8x18 ISA40 SS Price: Call Us |
| 7 | 0035100309S | AH collar screw M10x30 ISA45 Price: Call Us |
| 8 | 69012060060 | WASHER F. STEERING DAMPER RC8 Price: Call Us |
| 9 | 0025080606S | Hex collar screw M8x60 ISA 40 Price: Call Us |
| 10 | 0025080456S | HH COLLAR SCREW M8X45 ISA40 Price: Call Us |
| 12 | 61305068000 | DAMPING RUBBER Price: Call Us |
| 13 | 54310086100 | SELF LOCKING NUT M10 CU WS=14 Price: Call Us |
| 15 | 0025080256S | HH COLLAR SCREW M8X25 TX40 Price: Call Us |
| 16 | 60003152000 | ENGAGE PANEL FOOTREST L/S 03 Price: Call Us |
| 17 | 60003050000 | FOOTREST CPL. L/S REAR 03 Price: Call Us |
| 18 | 60003052000 | ENGAGE PANEL FOOTREST R/S 03 Price: Call Us |
| 20 | 60003051000 | Footrest cmpl. r/s rear 03 Price: Call Us |
| 21 | 64103004100 | Brace subframe Price: Call Us |
| 22 | 64106041050 | Cover inlet port right Price: Call Us |
| 23 | 64106040050 | Cover inlet port left Price: Call Us |
| 25 | 0035080356S | SCREW M8X35 ISA45 SS Price: Call Us |
| 26 | 83008000015 | SPECIAL SCREW M6X15X3 Price: Call Us |
| 28 | 6410304800033 | Footrest carrier rear/left Price: Call Us |
| 29 | 0025080406S | Collar screw M8x40 ISA40 SS Price: Call Us |
