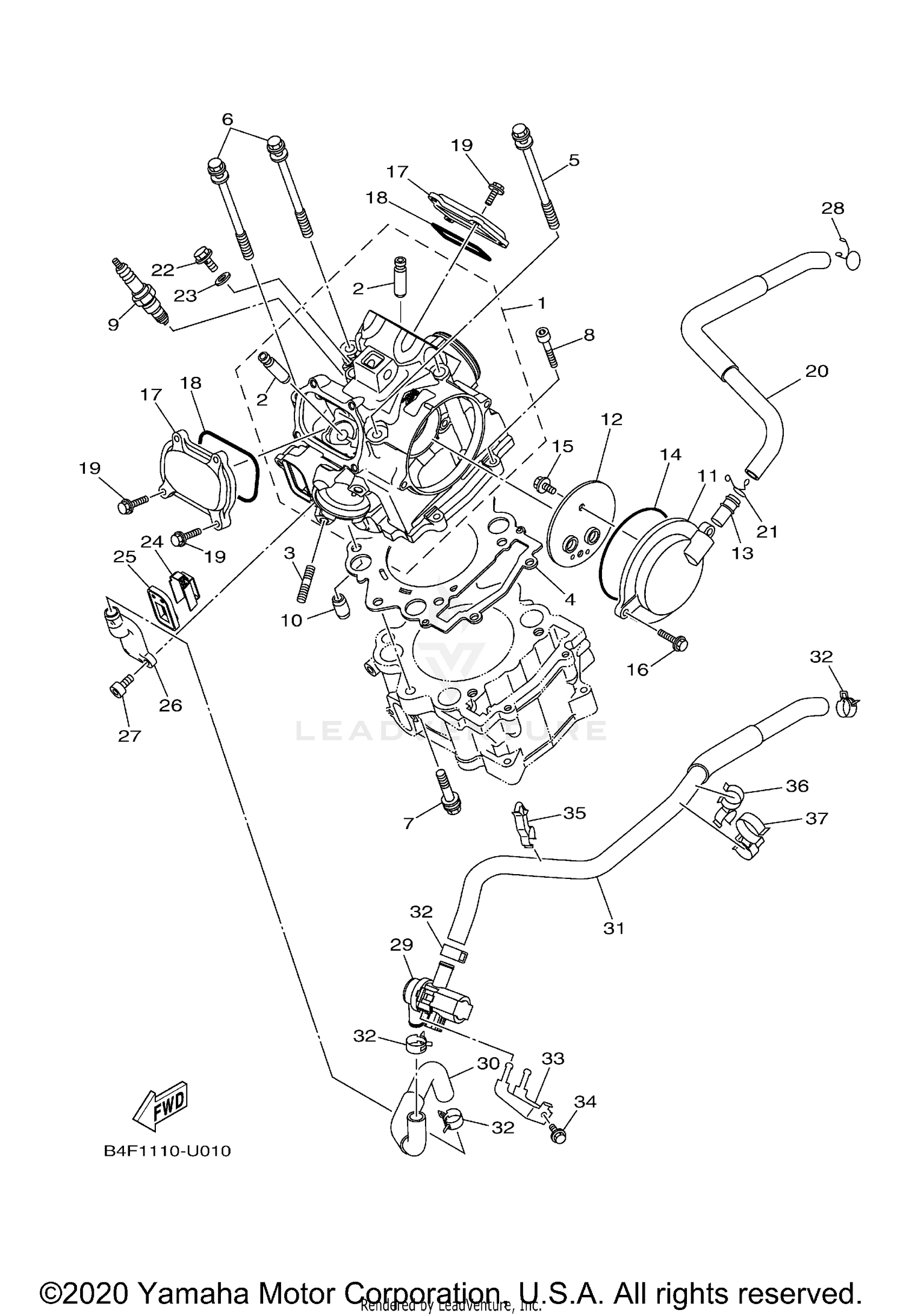

| Ref | Part Number | Description |
|---|
| 1 |
2BG-11102-00-00 |
CYLINDER HEAD ASSY Price: $901.99 |
| 2 |
4G0-11133-11-00 |
GUIDE, VALVE 1 Price: $53.99 |
| 3 |
95612-08625-00 |
BOLT, STUD Price: $6.49 |
| 4 |
3B4-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $58.99 |
| 5 |
90109-09003-00 |
BOLT Price: $11.49 |
| 6 |
90109-09002-00 |
BOLT Price: $11.49 |
| 7 |
90109-09005-00 |
BOLT Price: $9.49 |
| 8 |
90110-06138-00 |
BOLT This part replaces 91312-06030-00. Price: $6.49 |
| 9 |
CPR-7EA90-00-00 |
PLUG, SPARK (NGK CPR7EA) Price: $9.49 |
| 10 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 11 |
3B4-11185-00-00 |
COVER, CYLINDER HEAD SIDE 3 Price: $34.99 |
| 12 |
3B4-11165-10-00 |
PLATE, BREATHER Price: $5.99 |
| 13 |
371-11167-01-00 |
PIPE, BREATHER 2 Price: $14.49 |
| 14 |
93210-96601-00 |
O-RING Price: $13.49 |
| 15 |
95022-06012-00 |
BOLT, FLANGE Price: $3.55 |
| 16 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 17 |
1S3-11186-00-00 |
COVER, CYLINDER HEAD SIDE 2 Price: $33.99 |
| 18 |
93210-78544-00 |
O-RING Price: $13.49 |
| 19 |
95022-06020-00 |
BOLT, FLANGE Price: $3.90 |
| 20 |
B4F-E1166-00-00 |
PIPE, BREATHER 1 Price: $12.49 |
| 21 |
90467-140A4-00 |
CLIP Price: $10.49 |
| 22 |
90401-08004-00 |
BOLT, UNION Price: $9.49 |
| 23 |
90430-08119-00 |
GASKET Price: $7.49 |
| 24 |
2BG-1482K-00-00 |
PLATE Price: $15.49 |
| 25 |
5JW-14890-00-00 |
REED VALVE ASSY Price: $71.99 |
| 26 |
5JW-4889-00-00 |
CAP, CASE Price: Call Us |
| 27 |
91314-06020-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06175-00. Price: $2.65 |
| 28 |
90467-150A2-00 |
CLIP Price: $8.49 |
| 29 |
2MB-14840-00-00 |
AIR CUT VALVE ASSY Price: $104.99 |
| 30 |
2BG-E4882-00-00 |
HOSE, BEND 2 Price: $10.49 |
| 31 |
B16-E4883-00-00 |
HOSE, BEND 3 Price: $19.49 |
| 32 |
90467-17128-00 |
CLIP This part replaces 90467-17089-00. Price: $9.49 |
| 33 |
2BG-F117A-00-00 |
STAY Price: $2.45 |
| 34 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95812-06012-00. Price: $1.95 |
| 35 |
90464-17006-00 |
CLAMP Price: $6.70 |
| 36 |
90464-18015-00 |
CLAMP Price: $3.85 |
