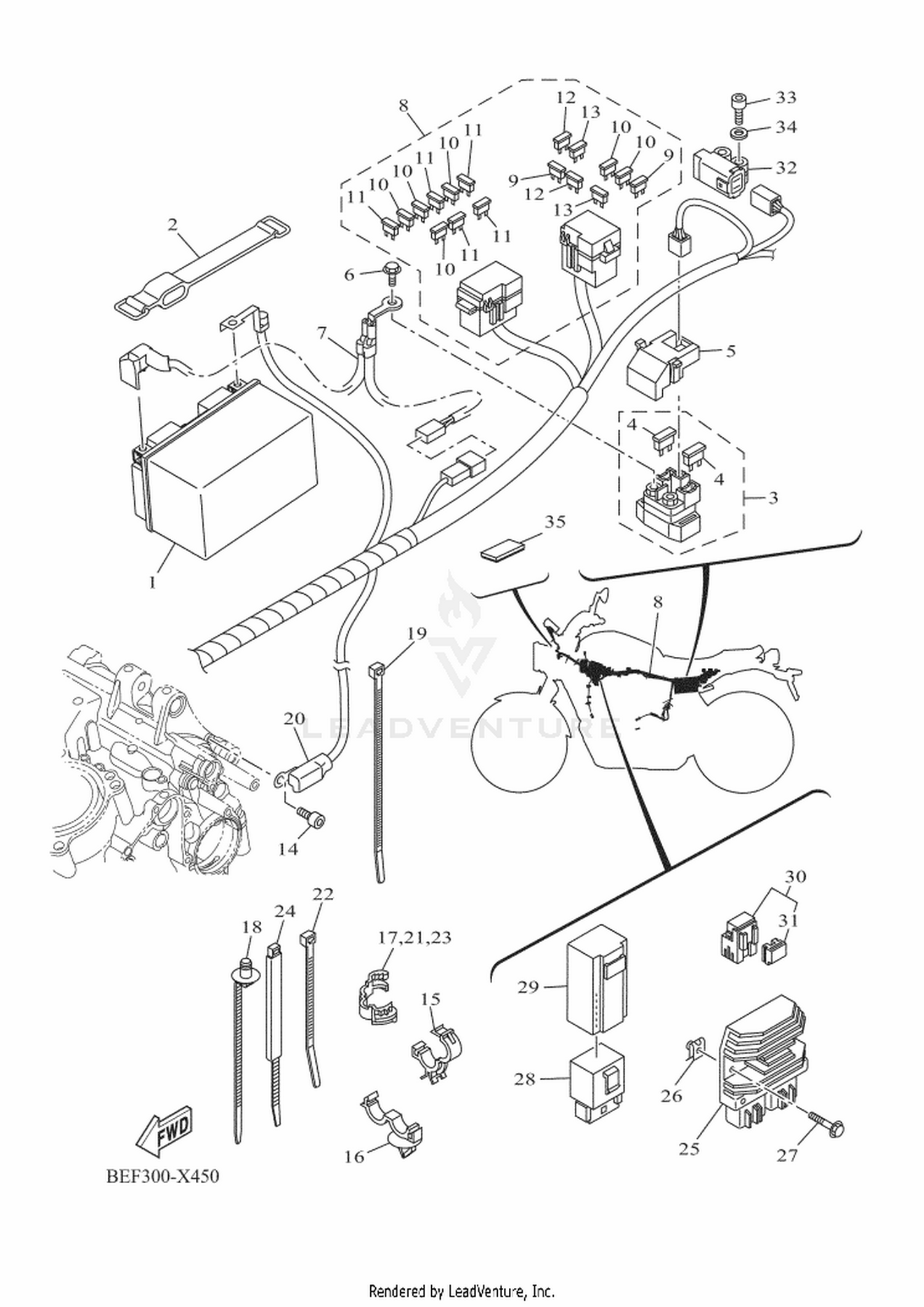

46 ELECTRICAL 1
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5VY-82100-01 | BATTERY ASSY (YUASA YTZ10S) Price: Call Us |
| 2 | 1WS-82131-00 | BAND, BATTERY Price: Call Us |
| 3 | 1XC-81940-00 | STARTER RELAY ASSY (RC19-089B) Price: Call Us |
| 5 | 5SL-82119-10 | COVER, LEAD WIRE Price: Call Us |
| 6 | 95022-06008 | BOLT, FLANGE Price: Call Us |
| 7 | 1XB-82115-01 | WIRE, PLUS LEAD Price: Call Us |
| 8 | BEE-H2590-00 | WIRE HARNESS ASSY Price: Call Us |
| 12 | 5JJ-82151-20 | FUSE (20A-BL) Price: Call Us |
| 15 | 90464-20191 | CLAMP Price: Call Us |
| 16 | 90464-17003 | CLAMP Price: Call Us |
| 17 | 90464-14010 | CLAMP Price: Call Us |
| 19 | 1UA-82591-00 | BAND Price: Call Us |
| 20 | 1WS-81916-00 | COVER, TERMINAL Price: Call Us |
| 21 | 90464-14010 | CLAMP Price: Call Us |
| 23 | 90464-14010 | CLAMP Price: Call Us |
| 24 | BAT-21646-00 | BAND Price: Call Us |
| 25 | 1D7-81960-10 | RECTIFIER REGULATOR ASSY Price: Call Us |
| 26 | 90183-06069 | NUT, SPRING Price: Call Us |
| 27 | 95027-06020 | BOLT, FLANGE Price: Call Us |
| 28 | 5VK-81950-51 | RELAY ASSY (G8R-30Y-V5) Price: Call Us |
| 29 | 1WS-8246B-00 | COVER 1 Price: Call Us |
| 30 | 1TP-81950-00 | RELAY ASSY (1TP-00) Price: Call Us |
| 32 | 5PS-82576-01 | LEAN ANGLE SENSOR Price: Call Us |
| 33 | 91312-04025 | BOLT Price: Call Us |
| 34 | 90201-04030 | WASHER, PLATE Price: Call Us |
