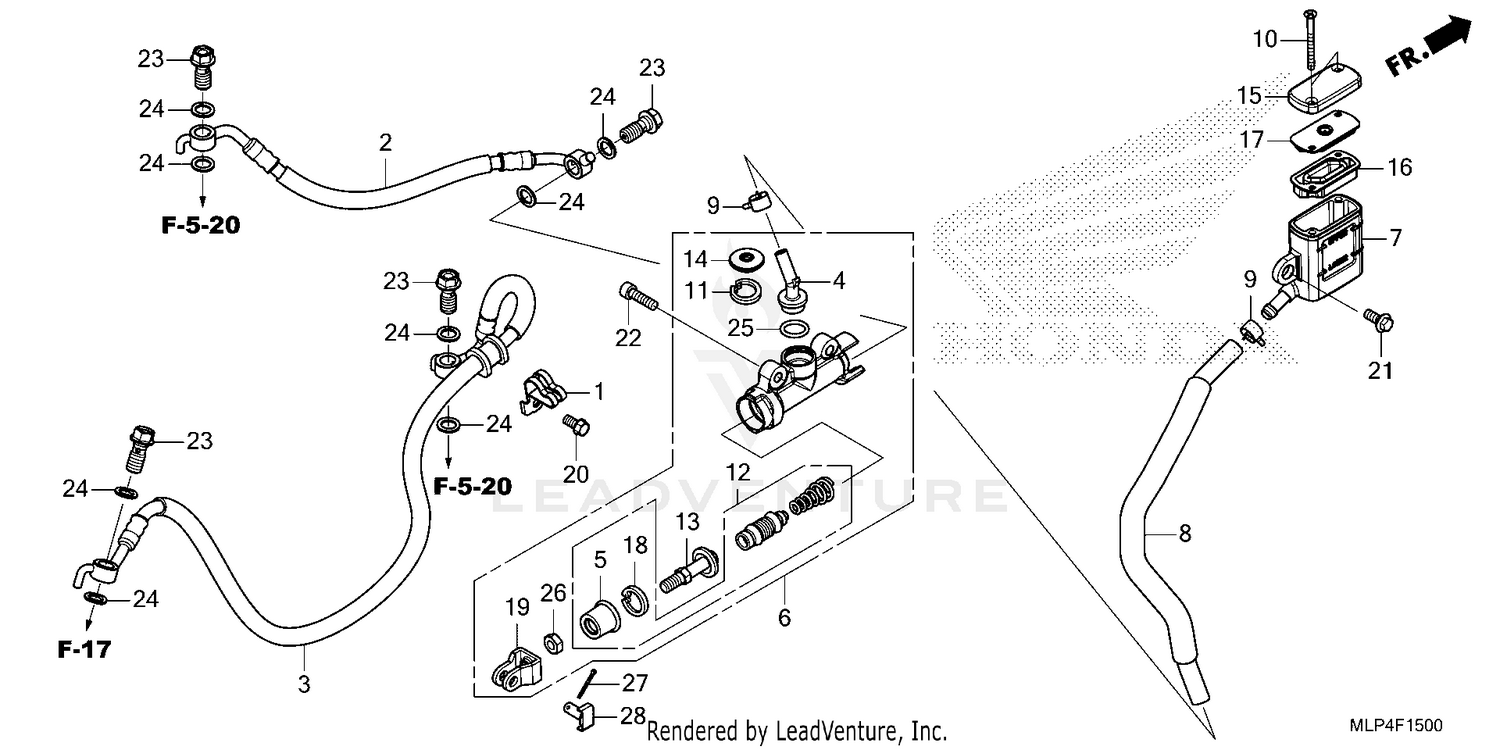

| Ref | Part Number | Description |
|---|
| 1 |
43155-K3S-JA0 |
CLAMP, BRAKE HOSE Price: $4.58 |
| 2 |
43310-K3S-JA1 |
HOSE COMP A, RR. Price: $16.75 |
| 3 |
43311-K3S-JA1 |
HOSE COMP B, RR. Price: $30.04 |
| 4 |
43503-MFL-006 |
CONNECTOR, MASTER CYLINDER Price: $7.84 |
| 5 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 6 |
43510-MLP-AA1 |
SUB-ASSY., RR. M/C Price: $105.42 |
| 7 |
43511-K43-911 |
CUP, OIL Price: $19.29 |
| 8 |
43512-MLP-AA1 |
HOSE COMP, RR. M/C Price: $20.69 |
| 9 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 10 |
43516-KYJ-901 |
SCREW, FLAT (4X60) Price: $1.04 |
| 11 |
43517-KS6-701 |
CIRCLIP, RR. MASTER CYLINDER (FOR FR.) Price: $4.80 |
| 12 |
43520-MB2-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $56.36 |
| 13 |
43530-KZZ-901 |
ROD, PUSH Price: $12.96 |
| 14 |
45505-KV3-006 |
COVER, DUST (NISSIN) Price: $5.22 |
| 15 |
45513-K33-D01 |
CAP, MASTER CYLINDER Price: $18.82 |
| 16 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 17 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 18 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 19 |
46504-MT8-006 |
JOINT, BRAKE ROD Price: $10.35 |
| 20 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 21 |
90028-GHB-640 |
BOLT, FLANGE (6X16) (S-NSHF) Price: $2.49 |
| 22 |
90111-GHB-660 |
BOLT, SOCKET (6X22) Price: $1.13 |
| 23 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 24 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 25 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 26 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 27 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
