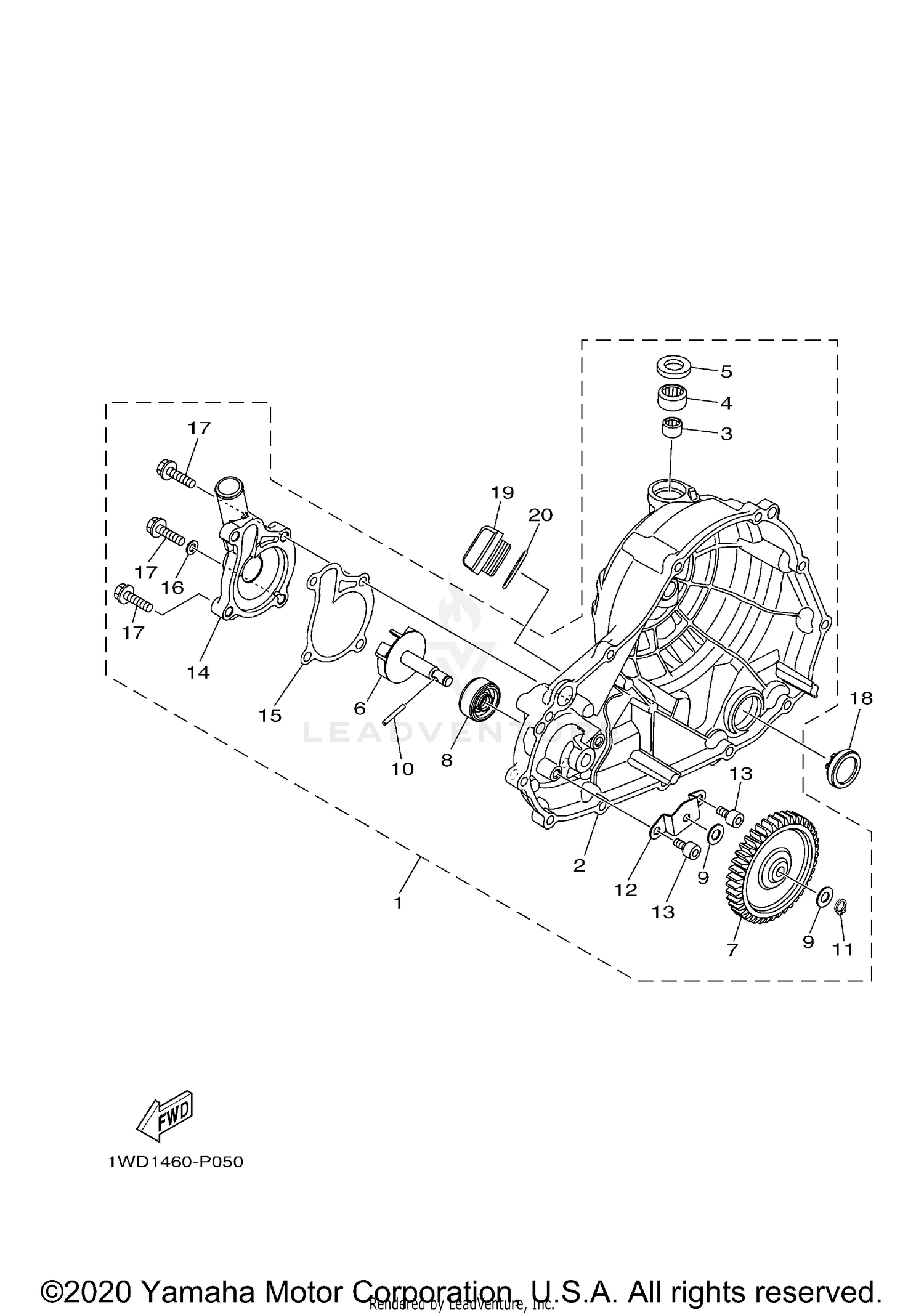

WATER PUMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1WD-E2420-00-00 | WATER PUMP ASSY Price: $179.99 |
| 3 | 93317-11096-00 | BEARING Price: $25.99 |
| 4 | 93315-21570-00 | BEARING Price: $18.49 |
| 5 | 93102-15805-00 | OIL SEAL This part replaces 93102-15801-00. Price: $8.49 |
| 6 | 1WD-E2450-00-00 | IMPELLER SHAFT ASSY Price: $55.99 |
| 7 | 1WD-E2453-00-00 | GEAR Price: $72.99 |
| 8 | 33S-E2223-00-00 | SEAL Price: $74.99 |
| 9 | 33S-E2456-00-00 | WASHER Price: $2.75 |
| 10 | 1WD-E319L-00-00 | PIN, STRAIGHT Price: $1.85 |
| 11 | 99009-08400-00 | CIRCLIP Price: $1.75 |
| 12 | 1WD-E2681-00-00 | PLATE Price: $51.99 |
| 13 | 91317-06010-00 | BOLT This part replaces 91312-06010-00. Price: $10.49 |
| 14 | 1WD-E2422-00-00 | COVER, HOUSING Price: $142.99 |
| 15 | 1WD-E2428-00-00 | GASKET, HOUSING COVER 2 Price: $4.65 |
| 16 | 90430-06014-00 | GASKET Price: $8.60 |
| 17 | 95022-06025-00 | BOLT, FLANGE Price: $1.90 |
| 18 | 2H7-15361-00-00 | GAUGE, LEVEL Price: $105.99 |
| 19 | 1WD-E5362-00-00 | PLUG, OIL LEVEL Price: $7.49 |
