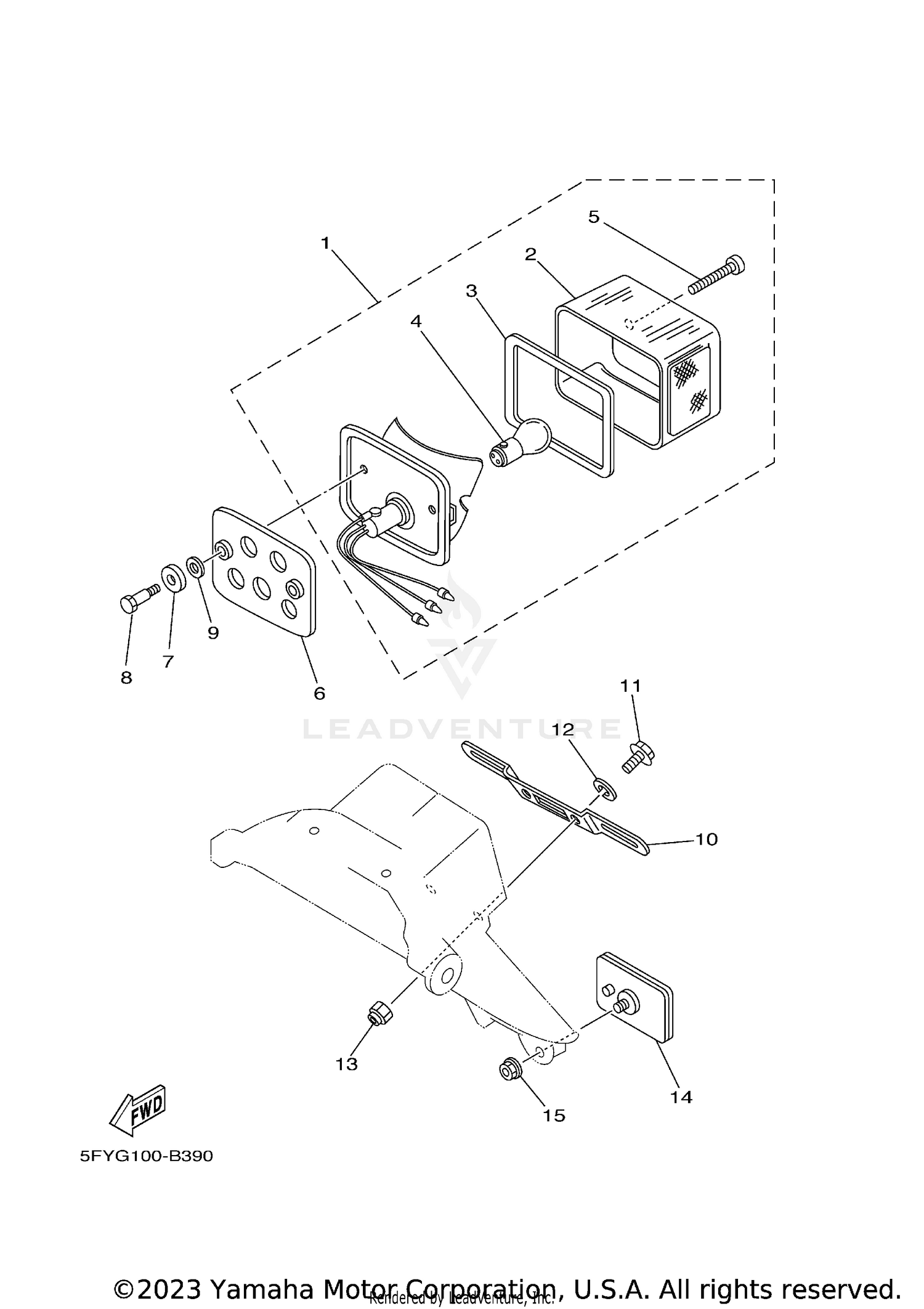

TAILLIGHT
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1W9-84710-61-00 | TAILLIGHT UNIT ASSY Price: $119.99 |
| 2 | 1M1-84521-60-00 | LENS, TAILLIGHT Price: $43.99 |
| 3 | 1M1-84523-60-00 | GASKET, LENS Price: $14.49 |
| 4 | 256-84714-61-00 | BULB, FLSHER (12V-278W) Price: $12.99 |
| 5 | 5BF-8433E-00-00 | SCREW, ADJUSTING This part replaces 1M1-84524-60-00. Price: $8.49 |
| 6 | 4L0-84753-00-00 | DAMPER Price: $16.49 |
| 7 | 90209-08125-00 | WASHER Price: $12.49 |
| 8 | 90109-06005-00 | BOLT Price: $8.49 |
| 9 | 90201-083A0-00 | WASHER, PLATE Price: $10.49 |
| 10 | 36A-84551-00-00 | BRACKET, LICENCE Price: $22.99 |
| 11 | 95817-06016-00 | BOLT, FLANGE This part replaces 95807-06016-00. Price: $1.95 |
| 12 | 90201-06557-00 | WASHER, PLATE Price: $3.55 |
| 13 | 95617-06100-00 | NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 14 | 4KM-85130-00-00 | REAR REFLECTOR ASSY This part replaces 3G1-85130-01-00. Price: $24.99 |
