| Ref | Part Number | Description |
|---|
| 1 |
0728-001 |
Track, Drive - Assembly Price: $186.79 |
| 4 |
0120-247 |
Bushing, Drive Price: $5.50 |
| 5 |
0228-045 |
SHAFT,DRIVE HEX Price: $136.95 |
| 6 |
8050-277 |
Washer, Flat Price: $0.35 |
| 7 |
8011-132 |
Bolt, Carriage Price: $1.92 |
| 8 |
0602-198 |
PLATE,FLANGE-BEARING (TRIANGLE) Price: $13.28 |
| 9 |
8040-426 |
Nut, Hex Lock - NYL 5/16-18 Z&Y Price: $1.79 |
| 10 |
0620-032 |
DRIVE ADAPTER (INC. 21) Price: $124.04 |
| 11 |
0120-248 |
CABLE,DRIVE ADAPTOR Price: $19.35 |
| 12 |
1602-375 |
BEARING,1.00 W/COLLAR Price: $177.95 |
| 13 |
8012-142 |
Screw, Cap Price: $0.89 |
| 14 |
0123-019 |
Washer, Flat Price: $3.67 |
| 15 |
0123-053 |
Washer, Flat Price: $1.80 |
| 16 |
0123-578 |
Washer Price: $2.29 |
| 17 |
0726-009 |
Driven Clutch Assembly Price: $406.95 |
| 18 |
0123-263 |
WASHER Price: $0.29 |
| 19 |
8011-130 |
Bolt, Carriage Price: $1.18 |
| 20 |
1602-290 |
BEARING,1 W/LOCK(LARGE RACE) Price: $85.95 |
| 21 |
8050-252 |
WASHER,FLAT- 5/16 X .875 X .063 Z&Y Price: $0.70 |
| 22 |
0101-076 |
Key Price: $3.02 |
| 23 |
0602-038 |
SHAFT, DRIVEN Price: $177.95 |
| 24 |
8006-399 |
SCREW, CAP-HSH 10-32X.625 Z&Y Price: $0.19 |
| 25 |
0123-430 |
Nut, Lock Price: $2.91 |
| 26 |
0602-598 |
Key, Woodruff - Hardened Price: $19.35 |
| 27 |
0602-040 |
HUB,BRAKE Price: $99.95 |
| 28 |
0109-867 |
Disc, Brake Price: $52.95 |
| 29 |
8011-141 |
BOLT, CARRIAGE Price: $0.49 |
| 30 |
0702-078 |
DROPCASE-W/PLUGS Price: $221.95 |
| 31 |
8050-247 |
Washer Price: $0.70 |
| 32 |
0104-062 |
Fitting, Grease Price: $1.32 |
| 33 |
0123-523 |
Bolt, Ribbed Price: $5.95 |
| 34 |
8002-137 |
Screw, Cap Price: $1.20 |
| 35 |
8002-228 |
Screw, Cap Price: $3.75 |
| 36 |
0115-643 |
Puck, Brake Price: $22.99 |
| 37 |
8040-486 |
Nut, Lock Price: $1.20 |
| 38 |
0107-003 |
Seal Price: $1.45 |
| 39 |
1702-180 |
Kit, Replacement Bearing-7/8" Price: $68.95 |
| 40 |
0107-409 |
Sprocket (20T - 3/8 x .520 x 7/8) Price: $7.95 |
| 41 |
0124-302 |
Screw, Cap-Lock Price: $1.20 |
| 42 |
8041-426 |
Nut, Hex - Thin Lock Price: $0.46 |
| 43 |
0107-214 |
Seal, Dropcase Price: $21.29 |
| 44 |
0123-082 |
Pin, Cotter Price: $0.09 |
| 45 |
8050-212 |
Washer Price: $0.82 |
| 46 |
0707-026 |
SPRING, TIGHTENER Price: $12.95 |
| 47 |
0107-228 |
Pad, Tightener Price: $15.67 |
| 48 |
8002-040 |
Screw, Cap Price: $0.44 |
| 49 |
8050-217 |
Washer, Flat Price: $0.24 |
| 50 |
0107-226 |
Arm, Tightener Price: $12.95 |
| 51 |
0107-234 |
Spacer Price: $15.67 |
| 52 |
0107-233 |
Stud Price: $19.95 |
| 53 |
1702-179 |
Kit, Replacement Bearing-1" Price: $83.95 |
| 54 |
0107-325 |
SPROCKET, 35T (ABOVE 8,000 FT ALT.) Price: $84.95 |
| 55 |
0107-215 |
CHAIN, 68 PITCH Price: $64.95 |
| 56 |
0124-091 |
Washer, Pyramidal Price: $14.95 |
| 57 |
8053-242 |
Washer, External Tooth Lock Price: $1.53 |
| 58 |
8002-132 |
SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y Price: $1.20 |
| 59 |
8012-222 |
Screw, Cap Price: $1.09 |
| 60 |
0623-293 |
Plug, Drain Price: $2.91 |
| 61 |
0107-747 |
Cover, Dropcase Price: $41.95 |
| 62 |
8050-242 |
Washer Price: $2.26 |
| 63 |
0117-867 |
CLEVIS Price: $9.95 |
| 64 |
8042-426 |
NUT,5/16-18 HEX-REG-GR5 Z&Y Price: $0.71 |
| 65 |
0117-865 |
Lever, Actuator Price: $10.58 |
| 66 |
0117-864 |
Shaft, Actuator Price: $24.95 |
| 67 |
0117-871 |
Plate, Backing Price: $47.47 |
| 68 |
0117-790 |
Bracket, Brake Cable Price: $3.95 |
| 69 |
0219-282 |
Actuator, Brake Price: $85.95 |
| 70 |
0117-792 |
Spring Price: $1.68 |
| 71 |
0117-870 |
Arm, Brake Return Spring Price: $3.09 |
| 72 |
0117-868 |
Pin, Cotter Price: $0.35 |
| 73 |
0423-109 |
PIN,CP26 Price: $0.29 |
| 74 |
0148-230 |
SPACER Price: $14.11 |
| 75 |
0148-231 |
Stub, Shaft Price: $9.95 |
| 76 |
8002-231 |
Screw, Cap-HH 3/8-16 X3.00 G5 Z&Y Price: $1.19 |
| 77 |
0623-912 |
Washer Price: $1.07 |
| 78 |
0607-025 |
O-Ring, Stud Price: $1.57 |
| 79 |
8051-217 |
Washer, Lock Price: $0.29 |

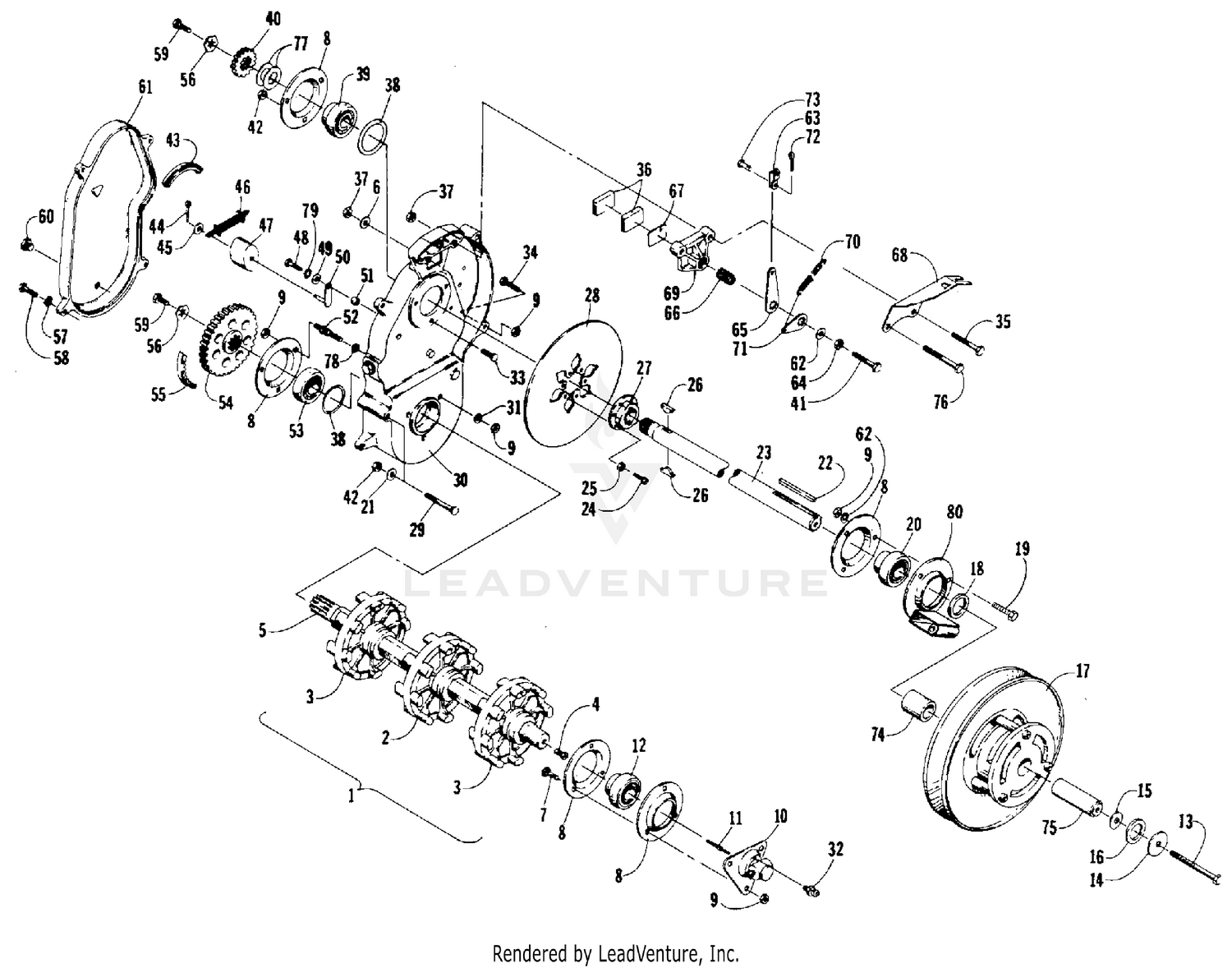

![DRIVE TRAIN [55117]](https://cdn.datamanager.arinet.com/image/ARCT/e5589a3c-efad-40ef-b897-70c6c67d0a43/Max)
