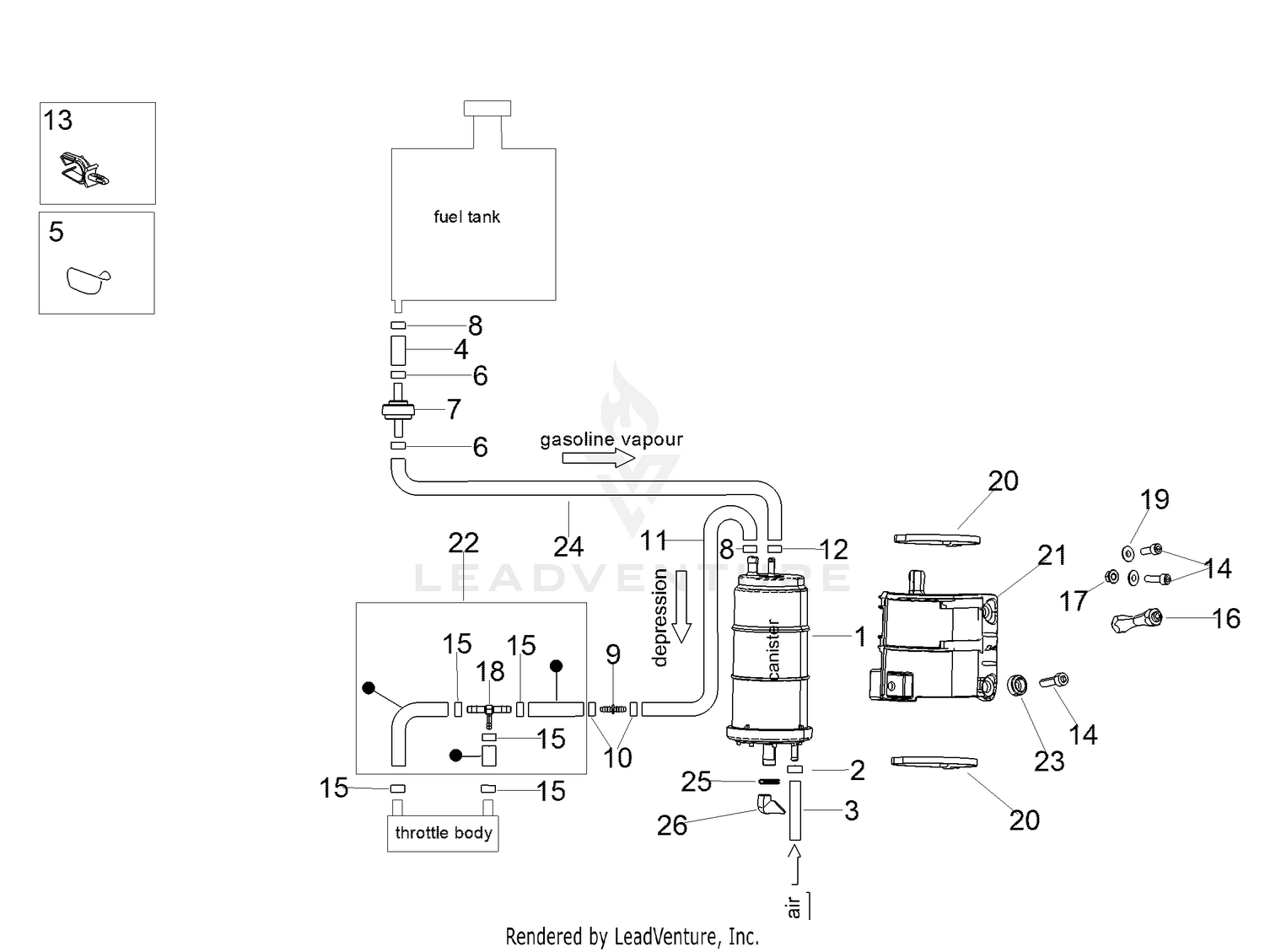

Fuel vapour recover system
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2B002632 | Canister Price: $22.46 |
| 2 | AP8102520 | Hose clamp Price: $0.19 |
| 3 | 890499 | Fuel pipe Price: $5.36 |
| 5 | AP8221150 | Cable-guide Price: $2.70 |
| 6 | AP8102239 | Hose clamp Price: $0.61 |
| 7 | AP8104614 | Breather valve Price: $58.82 |
| 8 | AP8120446 | Hose clip, green Price: $0.55 |
| 9 | AP8121267 | Choke hold Price: $8.65 |
| 10 | AP8102998 | Hose clamp Price: $2.70 |
| 11 | 2B003692 | SAE 30 R12A-3/16 pipe Price: $18.59 |
| 12 | AP8102764 | White hose clip Price: $1.36 |
| 13 | AP8221311 | Fairlead Price: $3.98 |
| 14 | AP8150044 | Hex socket screw Price: $2.70 |
| 15 | CM001901 | Hose clamp Price: $0.55 |
| 16 | 894933 | Spacer Price: $6.97 |
| 17 | AP8152299 | Self-locking nut Price: $0.25 |
| 19 | AP8150536 | Special washer Price: $8.37 |
| 20 | AP8141017 | Black hose Price: $0.21 |
| 21 | 2B003441 | Support bracket Price: $7.97 |
| 22 | 2B003684 | Shed pipe assembly Price: $55.65 |
| 23 | 2B003714 | Bush Price: $2.70 |
| 24 | 2B003691 | SAE 30 R12A-3/16 pipe Price: $29.61 |
| 25 | AP8127601 | Ventilation plug Price: $2.70 |
