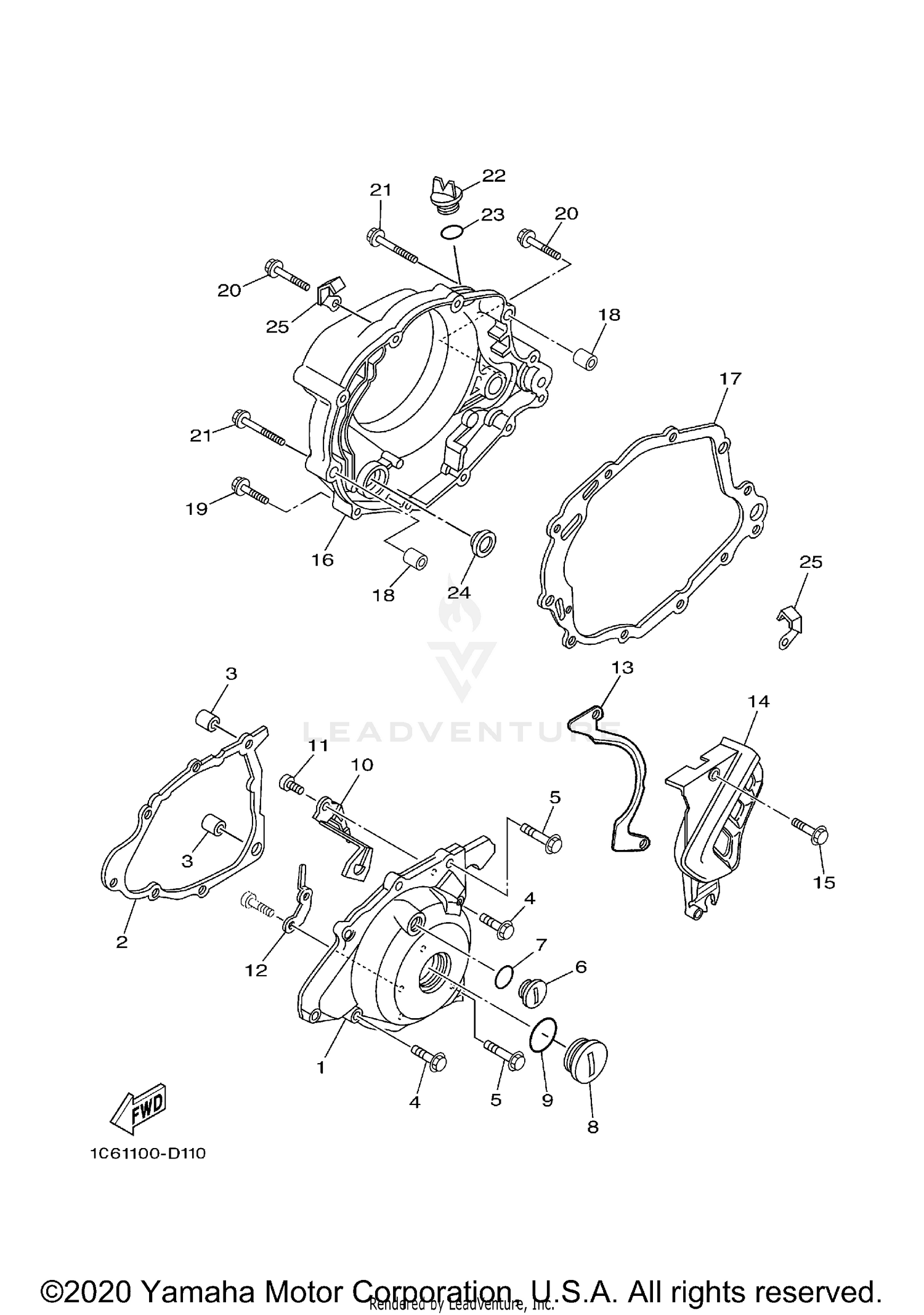

| Ref | Part Number | Description |
|---|
| 1 |
1C6-E5411-00-WN |
COVER, CRANKCASE 1 This part replaces 1C6-E5411-00-00. Price: $175.99 |
| 2 |
4BE-15451-03-00 |
GASKET, CRANKCASE COVER 1 Price: $24.99 |
| 3 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 4 |
95027-06025-00 |
BOLT, FLANGE This part replaces 9502M-06025-00. Price: $4.16 |
| 5 |
95027-06035-00 |
BOLT, FLANGE This part replaces 9502M-06035-00. Price: $2.40 |
| 6 |
90340-14W06-00 |
PLUG, STRAIGHT SCREW Price: $10.49 |
| 7 |
93210-14369-00 |
O-RING This part replaces 93210-14800-00. Price: $8.49 |
| 8 |
90340-32123-00 |
PLUG, STRAIGHT SCREW This part replaces 90340-32W07-00. Price: $25.99 |
| 9 |
93210-32172-00 |
O-RING This part replaces 93210-32800-00. Price: $8.49 |
| 10 |
1C6-E5758-00-00 |
GUIDE, ROPE Price: $5.99 |
| 11 |
92017-06010-00 |
BOLT, BUTTON HEAD This part replaces 9201M-06010-00. Price: $5.49 |
| 12 |
1C6-E5484-00-00 |
CLAMP 2 Price: $2.70 |
| 13 |
1C6-E7466-00-00 |
GUIDE, CHAIN Price: $41.99 |
| 14 |
1C6-E5420-00-WN |
CRANKCASE COVER ASSY 2 This part replaces 1C6-E5420-00-00. Price: $55.99 |
| 15 |
95027-06025-00 |
BOLT, FLANGE This part replaces 9502M-06025-00. Price: $4.16 |
| 16 |
4VW-WE543-00-00 |
COVER, CRANKCASE 3 Price: $334.99 |
| 17 |
4BE-15462-00-00 |
GASKET, CRANKCASE COVER 3 Price: $37.99 |
| 18 |
99530-12016-00 |
PIN, DOWEL Price: $4.89 |
| 19 |
95027-06025-00 |
BOLT, FLANGE This part replaces 9502M-06025-00. Price: $4.16 |
| 20 |
95027-06035-00 |
BOLT, FLANGE This part replaces 9502M-06035-00. Price: $2.40 |
| 21 |
95027-06045-00 |
BOLT, FLANGE This part replaces 9502M-06045-00. Price: $3.55 |
| 22 |
3Y1-15363-10-00 |
PLUG, OIL Price: $19.99 |
| 23 |
93210-19123-00 |
O-RING Price: $8.99 |
| 24 |
3Y1-15361-00-00 |
GAUGE, LEVEL Price: $33.99 |
