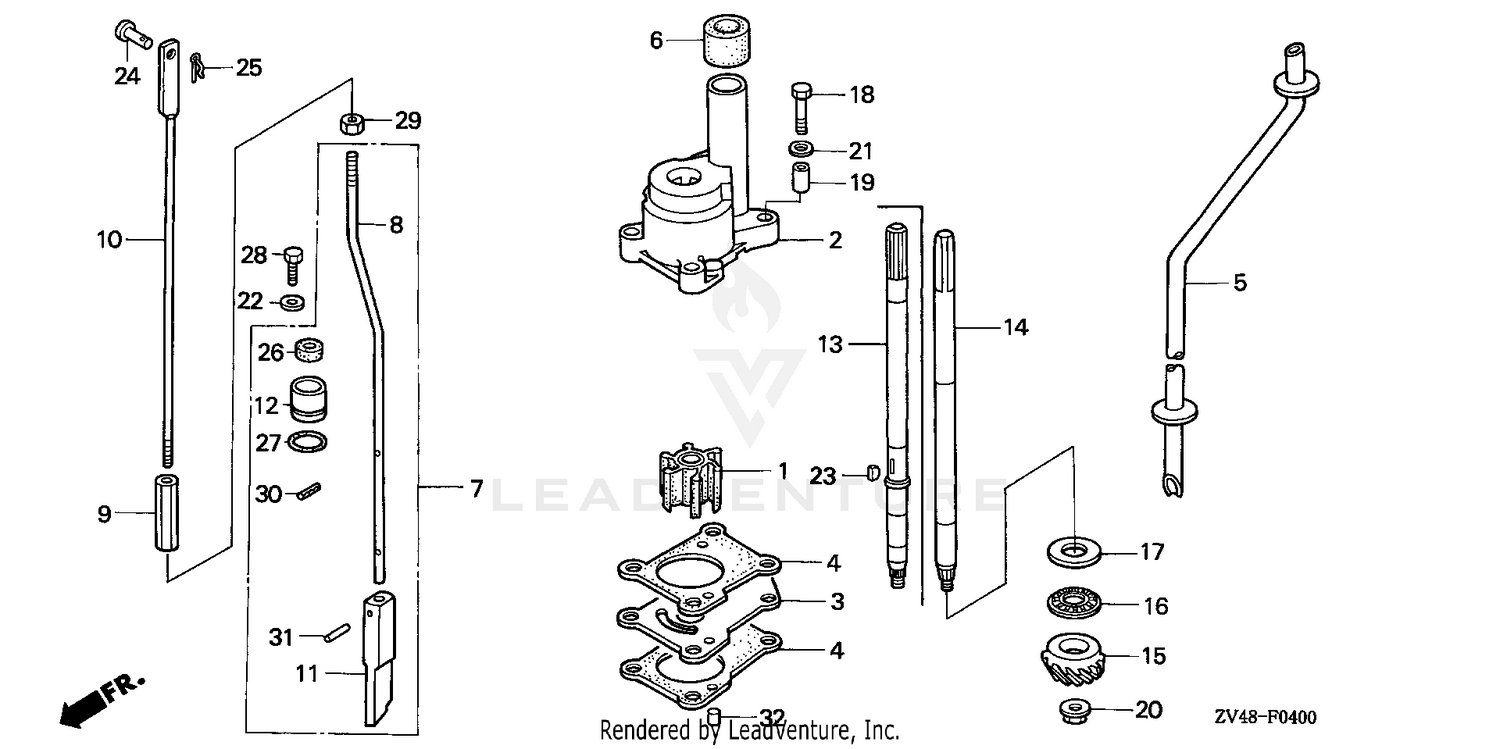

| Ref | Part Number | Description |
|---|
| 1 |
19210-ZV4-651 |
IMPELLER, PUMP Price: $30.00 |
| 2 |
19220-ZV4-000 |
HOUSING, IMPELLER Price: $94.42 |
| 3 |
19231-ZV4-020 |
SEE PART DETAILS - PRI; COVER, IMPELLER Price: $11.56 |
| 4 |
19232-ZV4-610 |
SEE PART DETAILS - PRI; GASKET, IMPELLER Price: $3.68 |
| 5 |
19251-ZV4-700 |
TUBE, WATER (L) Price: $39.14 |
| 6 |
19253-ZVD-000 |
RING, WATER TUBE SEAL This part replaces 19253-ZV1-000. Price: $3.56 |
| 7 |
24310-ZV4-701 |
SEE PART DETAILS - PRI; ROD, SHIFT (L) Price: $66.80 |
| 8 |
24311-ZV4-700 |
ROD B, SHIFT (L) Price: $29.44 |
| 9 |
24312-ZV4-000 |
JOINT, SHIFT ROD Price: $25.06 |
| 10 |
24320-ZV4-000 |
ROD A, SHIFT Price: $23.98 |
| 11 |
24341-ZV4-300 |
SEE PART DETAILS - PRI; ROD, PUSH Price: $30.20 |
| 12 |
24343-ZV4-300 |
HOLDER, SEAL Price: $19.94 |
| 14 |
41112-ZV4-750 |
SHAFT, VERTICAL (L) Price: $201.96 |
| 15 |
41131-ZV4-010 |
PINION (13T) Price: $51.94 |
| 16 |
41135-935-003 |
WASHER A, THRUST BEARING (2.00MM) Price: $7.86 |
| 17 |
41135-ZV4-000 |
WASHER A, THRUST BEARING (3.00MM) Price: $11.86 |
| 17 |
41136-ZV4-000 |
WASHER B, THRUST BEARING (3.03MM) Price: $7.58 |
| 17 |
41137-ZV4-000 |
WASHER C, THRUST BEARING (3.06MM) Price: $8.84 |
| 17 |
41138-ZV4-000 |
WASHER D, THRUST BEARING (3.09MM) Price: $8.84 |
| 18 |
90108-881-000 |
BOLT, HEX. (6X28) Price: $5.12 |
| 19 |
90112-881-000 |
COLLAR B, DISTANCE Price: $6.80 |
| 20 |
90303-ZV4-010 |
NUT, SPECIAL FLANGE (8MM) Price: $2.50 |
| 21 |
90504-921-010 |
WASHER, PLAIN (6MM) Use from Frame SN 4800713. Price: $1.74 |
| 22 |
90512-ZV4-000 |
WASHER, PLAIN (6MM) Price: $4.16 |
| 23 |
90752-ZV4-650 |
KEY, WOODRUFF (16X12) Price: $3.02 |
| 24 |
90754-ZV4-000 |
PIN (5X28) Price: $2.88 |
| 25 |
90757-ZV1-000 |
PIN, LOCK (5MM) Price: $2.16 |
| 26 |
91253-921-003 |
SEAL, WATER (6MM) Price: $15.70 |
| 27 |
91301-MY9-003 |
SEE PART DETAILS - PRI; O-RING (15X2.5) Price: $3.00 |
| 28 |
90105-881-000 |
BOLT, HEX. (6X12) Use up to Frame SN 1005248. Price: $2.90 |
| 29 |
94001-06490-0S |
SEE PART DETAILS - PRI; NUT, HEX. (6MM) Price: $2.82 |
| 30 |
94305-25122 |
PIN, SPRING (2.5X12) Price: $2.18 |
| 31 |
96220-25118 |
ROLLER (2.5X11.8) Price: $0.84 |
