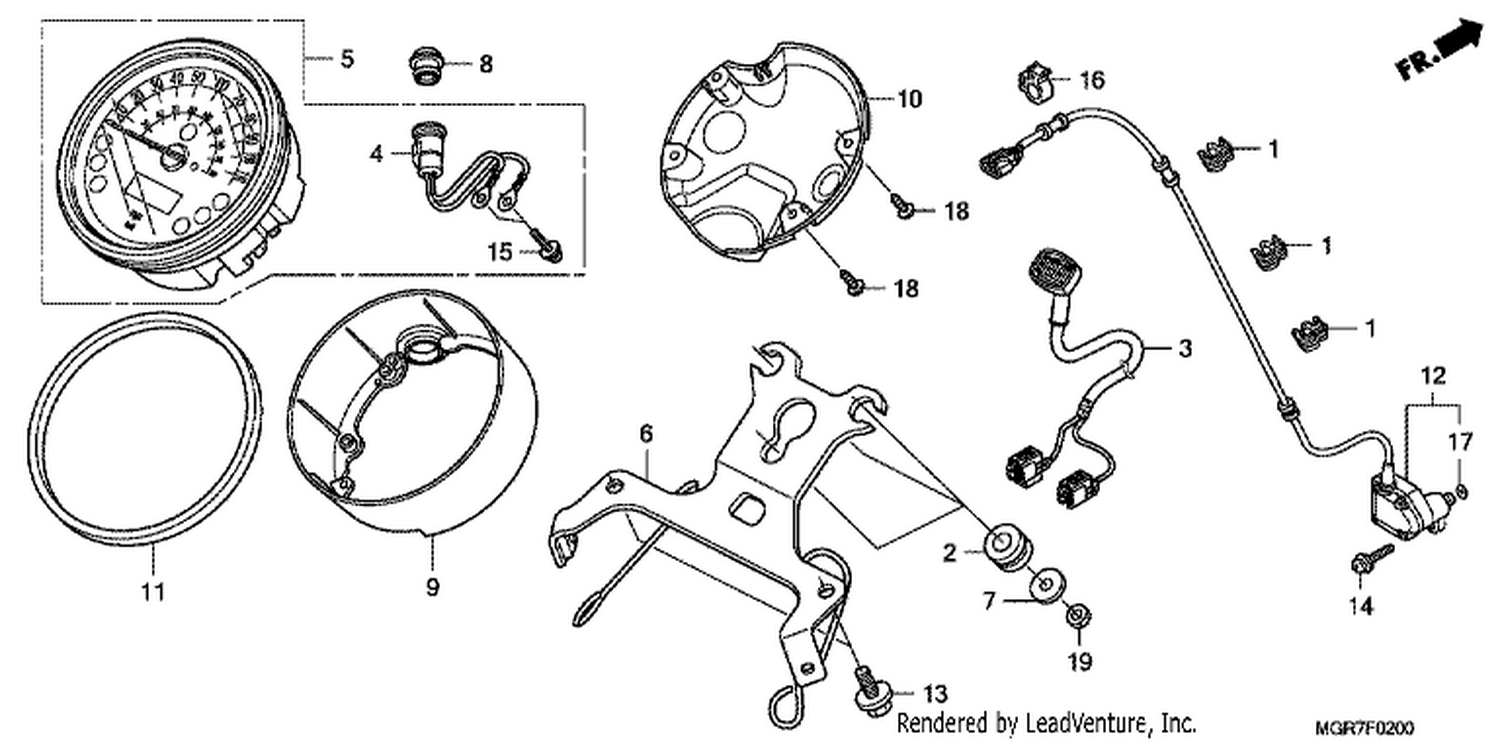

METER

 METER

Parts (18)

RefPart NumberDescription
1 17368KV7671 CLAMP, PIPE Price: Call Us
2 18422MCS760 RUBBER, EX. PIPE MOUNTING Price: Call Us
3 32103MGR671 SUB HARNESS, METER Price: Call Us
4 37205MGR003 SWITCH ASSY., RESET Price: Call Us
5 37210MGR601 SPEEDOMETER COMP. (MPH/KPH) Price: Call Us
6 37211MGR670 STAY, METER Price: Call Us
7 37212MGR000 WASHER, PLAIN, 6MM Price: Call Us
8 37215MBA611 CAP, RESET SWITCH Price: Call Us
9 37220MGR671 COVER A, SPEEDOMETER Price: Call Us
10 37230MGR671 COVER B, SPEEDOMETER Price: Call Us
11 37235MCL000 CUSHION, RUBBER Price: Call Us
12 37700MGR671 SENSOR ASSY., SPEED Price: Call Us
13 90101MFYA00 BOLT, FLANGE, 8X16 Price: Call Us
14 90102HN1A70 SCREW-WASHER, 5X20 Price: Call Us
15 90133SL9003 SCREW-WASHER, 3X18 Price: Call Us
16 90690GHB631 CLIP, CABLE, 8MM Price: Call Us
17 91301027000 O-RING, 6.8X1.9 Price: Call Us
18 9391324480 SCREW, TAPPING, 4X16 (PO) Price: Call Us
